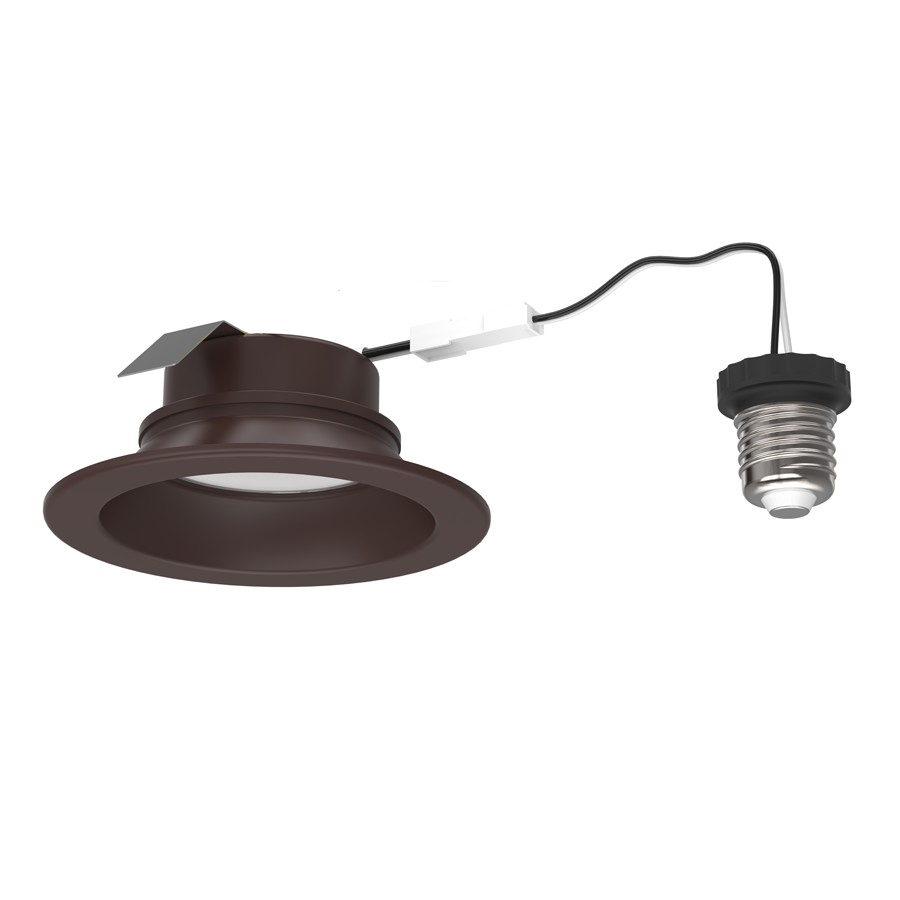

| High Efficiency And Energy-Saving Surface Mounted Dimmable Retrofit Recessed Led Ceiling Downlight |
Description :HAT 4"and 5-6" recessed mount downlight for 120V AC ,available triac dimmable and no dimming,
HAT 5-6" downlight can fit 5" & 6" downlight housings,can replace of most 5" and “ recessed downlights,
HAT 4" downlight can fit 4" downlight housings only,can replace of most 4inch recessed downlights,
this product is ideal for use in many residential and light commercial applications with E26 base/ GU24 .
Features:
1. Adopt spinning aluminum as heat sink;
2. Unique appearance, beautiful design and gorgeous;
3. Excellent thermal management to ensure long lifetime of LED;
4. High efficiency and energy-saving LED dirver;
5. Triac dimmable / non dimming.
Dimming Information:
This product is suitable for use in dimming circuit. For
5-100% light control, use with a compatible dimmer.
Compatible dimmers include most standard dimmers,
such as Lutron :SCL-153P,CTCL-153P,DVCL-153P,MACL-153M.
Technical parameters:
In the following model: B-baffle,D-dimming
| Model | CCT | Color | Lumen(lm) PF (±10%) | Beam (angle) | LED Type /Qty. | Power(w) (±10%) | Voltage,Frequency | CRI | PF | Dimming Type |
| HTL4-010-AL-927K-01(B)D | 2700K | Warm white | 600 | 85 | 2835/21 | 10W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
| HTL4-010-AL-930K-01(B)D | 3000K | Warm white | 610 | 85 | 2835/21 | 10W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
| HTL4-010-AL-940K-01(B)D | 4000K | Neutral white | 640 | 85 | 2835/21 | 10W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
| HTL4-010-AL-950K-01(B)D | 5000K | White | 640 | 85 | 2835/21 | 10W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
| HTL6-015-AL-927K-01(B)D | 2700K | Warm white | 900 | 85 | 2835/42 | 15W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
| HTL6-015-AL-930K-01(B)D | 3000K | Warm white | 920 | 85 | 2835/42 | 15W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
| HTL6-015-AL-940K-01(B)D | 4000K | Neutral white | 960 | 85 | 2835/42 | 15W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
| HTL6-015-AL-950K-01(B)D | 5000K | White | 970 | 85 | 2835/42 | 15W | AC120V/60Hz | 90 | >0.8 | Dimming/ non dimming |
Application:
Suitable for hotel, corridor, home decoration, shopping mall, exhibition room,etc.
Test Report :
Dimensions (Unit: inch)
| Specification | Inner box dimension | Unit net weight | Carton box dimension | Packing qty. | Carton boxgross weight |
| HTL4 (4") | 5.24*2.21*5.24 | 0.13KG | 14.76*11.02*11.40 | 24PCS | 7.0Kg |
| HTL6 (5-6") | 7.60*2.44*7.60 | 0.19KG | 16.54*15.75*8.28 | 12PCS | 5.0Kg |
If not qualified, do not attempt installation. Contact a qualified electrician.” or equivalent in Format S24-L5.
“WARNING - Risk of fire or electric shock. Install this kit only in luminaires that have the construction features and dimensions
shown in the photographs and/or drawings and where the input rating of the retrofit kit does not exceed the input rating of the
luminaire.” or equivalent in Format S24-L5.
“Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.” Verbatim in
Format S24-L5.
“WARNING - To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.”
or equivalent in Format S24-L5.
“This product must be installed in accordance with the applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved” or equivalent in Format S24-L4.
