Continuous Led Linear Lighting Lixture,Led linear Light 1500mm
SL 8060 LED Linear Light
Descriptions:
Sl8060 is a lastest new LED linear system, which can allow the users to easily create a linear illuminated ceiling lighting design with various shapes and spaces. The lamp body adopts premium aluminum profile and PC cover which provides good heat dissipation and uniform light distribution. The customized dimensions and colors of lamp body is also acceptable. This series of linear light is the ideal selection of designer and architect who want to make a freedom and artistic lighting system.
Features:
1. The whole light is aluminum alloy + PC materials with powder paintingsurface, available in white Grey and black color.
2. With splicing structure design, main line adopts 1.5mm² stranded copper. cable when the voltage is 220V, the total power may reach 2000W after the primary inlet wire is spliced. When the voltage is 90V, the maximum connection power is 800W.

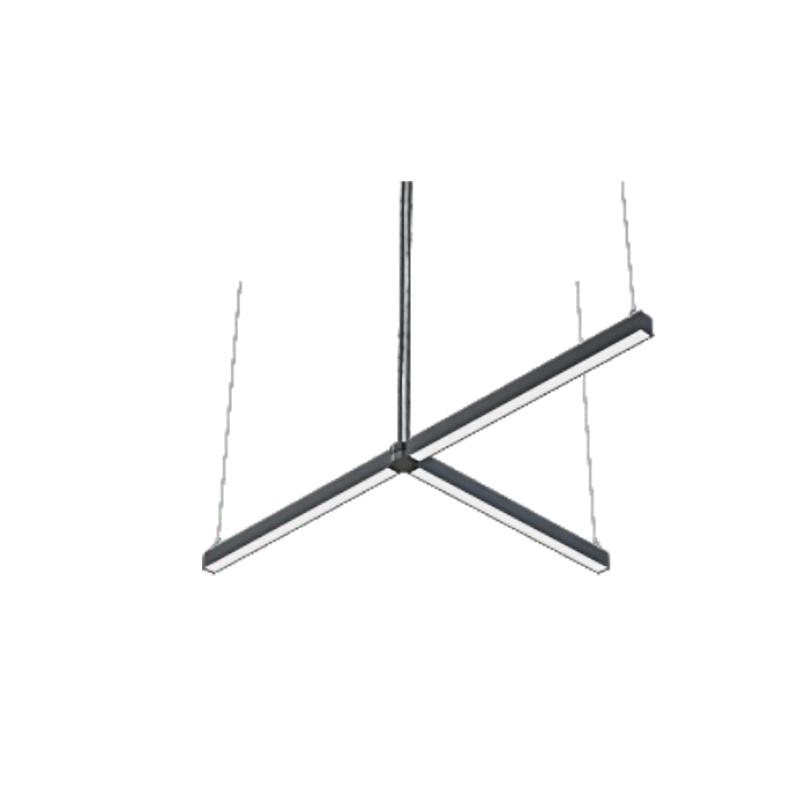

3. The circular one-drive-four junction box is used for connection among light bodies. The junction box has four built-in terminals so that one junction box can connect 4 light fittings at the same time.
4. The end cap of adapter of the light body adopts concentric design. The light body may rotate around the junction box. The maximum rotating angle is 30° in the left and right respectively. When multiple pieces of light fitting is spliced for installation, adjust the included angle among light body to combine into many shapes.
5. The power supply and line cavity adopts open design with easily dismantled plastic cover, allowing convenient installation and simple maintenance.
6. With the dimming function, it may provide DALI and 0-10V dimming.
Specifications:
| Model | CCT | LED Type | LED Pcs | Lumen(lm) (±10%) | Power(W) (±10%) | Length(MM) | LED quantity (PCS) | Dimming Optional | Voltage (V) | Pre-wired |
| SC-SL8060-040-AW-CW | 6000-6500k | 2835 | 260 | 3760lm | 40w | 1259 | 204 | 0-10v dimming | AC 100-240V 50/60Hz | 3 wires, 1.5MM2 copper core, L,N,G
|
| SC-SL8060-040-AW-NW | 3800-4200k | 260 | 3760lm | 40w | ||||||
| SC-SL8060-040-AW-WW | 2800-3200k | 260 | 3320lm | 40w | ||||||
| SC-SL8060-050-AW-CW | 6000-6500k | 2835 | 462 | 4700lm | 50w | 1559 | 252 | non-dimmable | ||
| SC-SL8060-050-AW-NW | 3800-4200k | 462 | 4700lm | 50w | ||||||
| SC-SL8060-050-AW-WW | 2800-3200k | 462 | 4150lm | 50w | ||||||
| SC-SL8060-040-AW-A01-CW | 6000-6500k | 2835 | 216 | 3760lm | 40w | 1259 | 204 | 10v dimminging | AC 100-277V 50/60Hz | 5 wires, 1.5MM2 copper core, L,N,G,DIM+, DIM |
| SC-SL8060-040-AW-A01-NW | 3800-4200k | 216 | 3760lm | 40w | ||||||
| SC-SL8060-040-AW-A01-WW | 2800-3200k | 216 | 3320lm | 40w | ||||||
| SC-SL8060-050-AW-A01-CW | 6000-6500k | 2835 | 216 | 4700lm | 50w | 1559 | 252 | 10v dimminging | ||
| SC-SL8060-050-AW-A01-NW | 3800-4200k | 216 | 4700lm | 50w | ||||||
| SC-SL8060-050-AW-A01-WW | 2800-3200k | 216 | 4150lm | 50w |
1) What are the best selling products in Signcomplex?
- LED strip
- panel lights
- linear light
- high bay
- corn bulb
- tube
-LED controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
