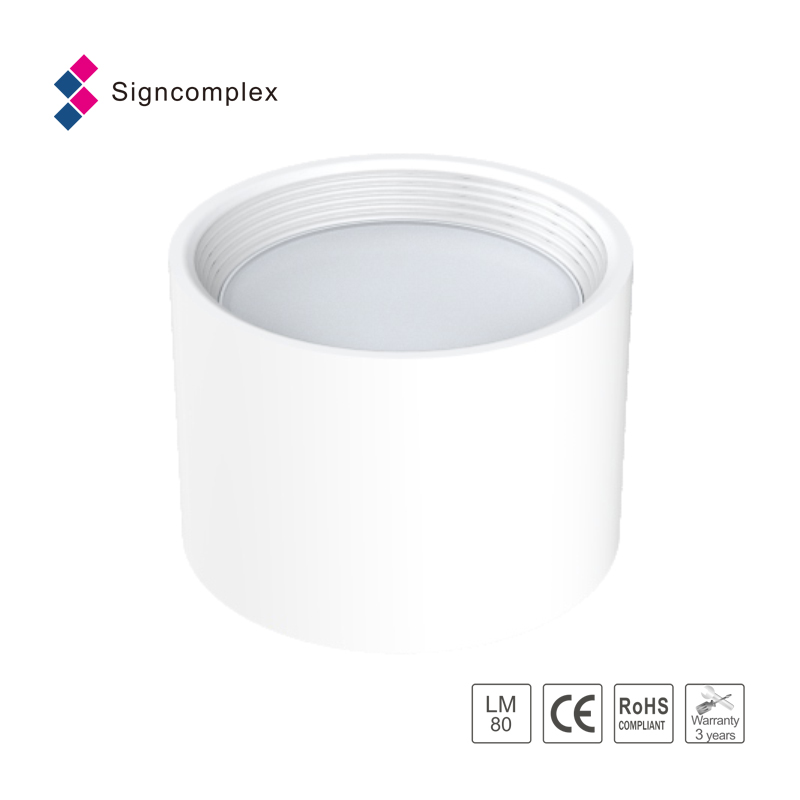

SMD 2835 Led Downlight Fixture Round Surface Mounted Led Ceiling Light
Description of the led downlight light :
1. The main material of the product is aluminum alloy and the main technology is shear spinning process with one-time molding, producing good heat dissipation effect.

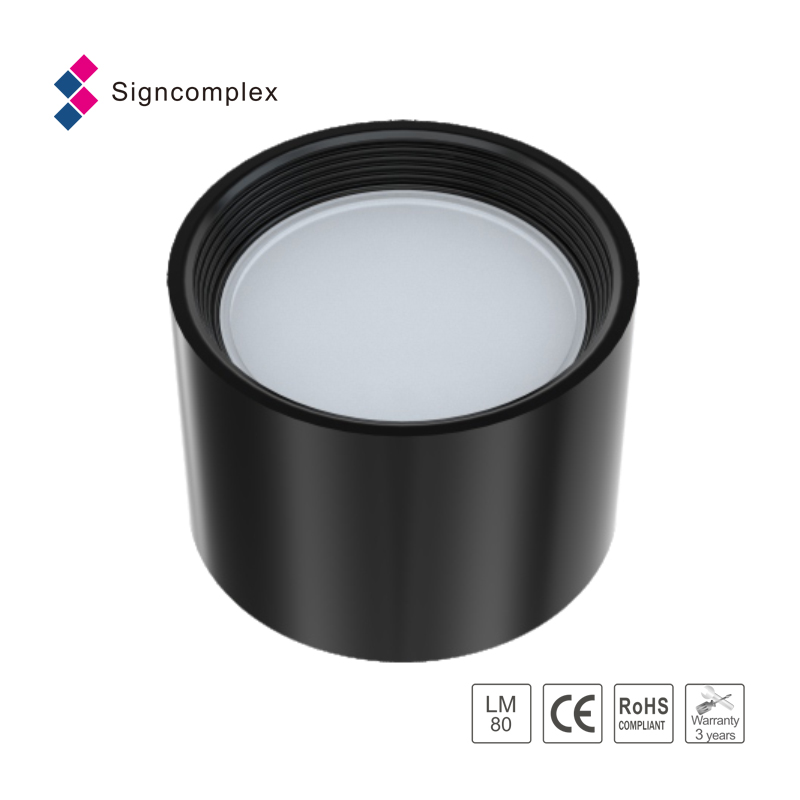

2. There are two types of colors, black and white for selection. The appearance is simple and decent.
3. COB adopts high reflective rate metal reflection cup and transparent tempered glass with high photosynthetic efficiency and high energy saving.
4.SMD adopts milky white PC shade + sealing ring. Waterproof grade of the front side can reach IP44.
5. Efficient and energy saving LED driving power.
6. There are four types of LEDs, HONGLI,LUMINUS,Citizen and Cree for selection.
Features of the led downlight light :
1. The spinning radiator with one-time molding is provided with good heat dissipation effect.
2. The light covers and tail covers are fixed through emboss rotating cooperation fixation, allowing simple assembly and efficient production.
3. The surface is sprayed with white powder; high-end and elegant.
4. The service life is more than 50000 hours.
Specification:
| Model | CCT | Color | Lumen (f10%) | CRI | Power(W) (±10%) | Beam angle | LED Type | Current | Voltage (V) | Frequency | CRI | PF |
| FSDL5-010-AH-WW-01 | 3000K | WW | 850lm | >80 | 10W | 90° | SMD2835 | 0.12A | 220-240 V AC | 50/60Hz | >80 | >0.9 |
| FSDL5-010-AH-NW-01 | 4000K | NW | 890lm | |||||||||
| FSDL5-010-AH-W-01 | 5000K | W | 900lm | |||||||||
| FSDL6-016-AH-WW-01 | 3000K | WW | 1720lm | >80 | 16W | 90° | SMD2835 | 0.18A | 220-240 V AC | 50/60Hz | >80 | >0.9 |
| FSDL6-016-AH-NW-01 | 4000K | NW | 1770lm | |||||||||
| FSDL6-016-AH-W-01 | 5000K | W | 1790lm | |||||||||
| FSDL8-025-AH-WW-01 | 3000K | WW | 2840lm | >80 | 25 | 90° | SMD2835 | 0.3A | 220-240 V AC | 50/60Hz | >80 | >0.9 |
| FSDL8-025-AH-NW-01 | 4000K | NW | 2890lm | |||||||||
| FSDL8-025-AH-W-01 | 5000K | W | 3020lm |
Dimension:
Package information:
SMD5
Product Net weight: 0.43kg
Quantity of packing:18PCS
Dimension of inner box:130*130*122
Application:
Mainly applicable in factories, hotels, home renovation, department stores and exhibition rooms, etc.
