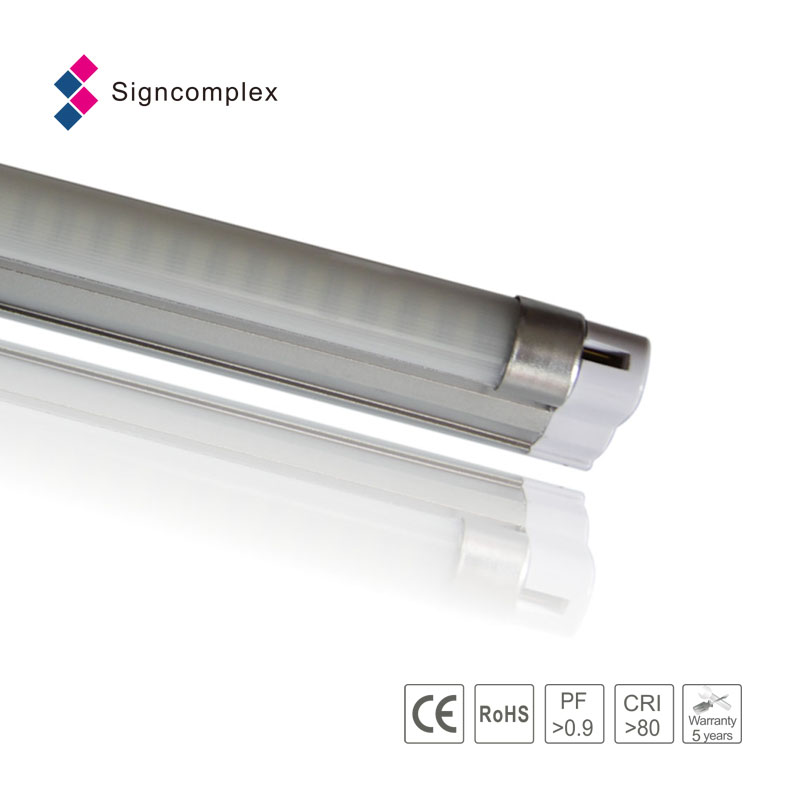

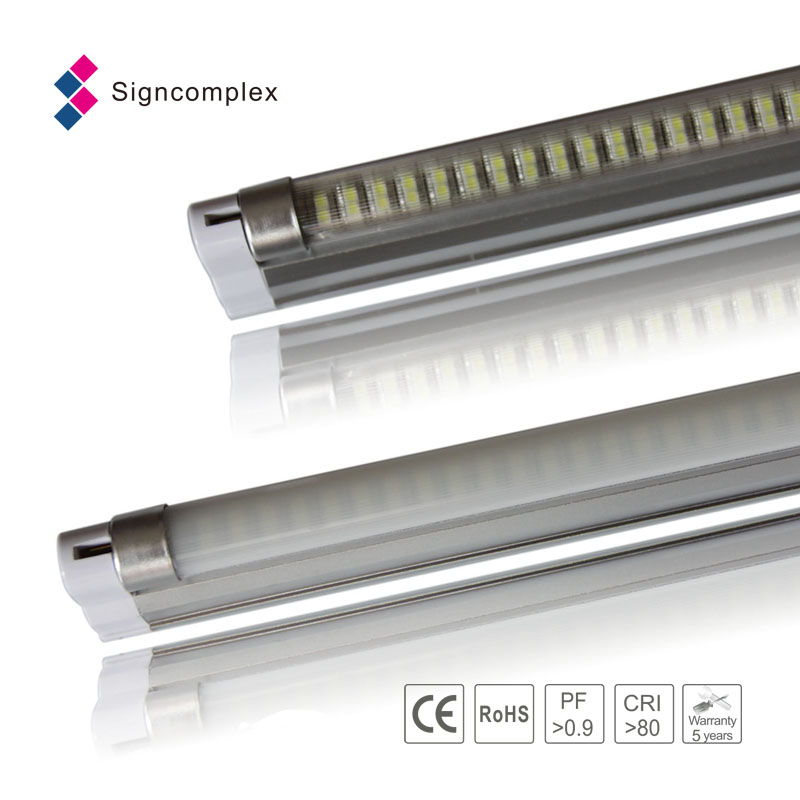

SMD2835 Hanging Continuous Led Linear Light Aluminium Housing,5 years warranty
LED linear trunking system SL5550
Description:
SL5550 Linear lights are mainly used in site that requires continuous lighting and different irritation angle. The light body has simple appearance with soft light. With multiple irritation angles for selection, it is widely used in large department stores,workshops,supermarket,warehouse, parking lots and so on.
Features:
1. Adoption of aluminum alloy section + PMMA lens, surface powder coating technology, exquisite overall appearance, simple structure, light weight, good heat dissipation and optical property.
2. The light body adopts split type design. The light body and track use stainless steel 301 Shrapnel for connection. It is designed with auxiliary safety rope, making it convenient to install and dismantle the light and track and maintenance.
3. The track adopts splicing design, which allows continuous connection. The track is tensioned with spring buckles to realize seamless connection.
4. The push type hoisting buckles adopt stainless steel 301 materials and reverse buckle structure, which allows quick installation and is safe and reliable.
5. The inside of the light adopts 1.5mm2 multiple-core copper wire and WAGO male and female of terminal of plug-in connectors to realize quick connection among lights. The single phase power and three-phase power may be connected outside of the light. When the voltage is 220V, after the single-phase primary incoming line is connected, the total power may reach 2000W and the total power of three-phase power may reach 6000W after three-phase primary incoming line is connected.
Specifications:
| Model | CCT | LED Type | Lumen (±10%) | Power (±10%) | Length (mm) | Voltage (V) | Dimming Optional | Pre -wired | LED psc |
| SC-SL5550-050-AW-CW | 6000-6500K | 2835 | 6000 lm | 50w | 1200 | AC100-240V 50/60HZ | non -dimmable | 5 wires, 1.5MM2 copper core, L1,L2,L3,N,G | 252 |
| SC-SL5550-050-AW-NW | 3800-4200K | 6250 lm | 1200 | ||||||
| SC-SL5550-050-AW-WW | 2800-3200K | 5750 lm | 1200 | ||||||
| SC-SL5550-065-AW-CW | 6000-6500K | 7800 lm | 65w | 1500 | AC 100-240V 50/60HZ | 0-10V dimming | 5 wires, 1.5MM2 copper core, L1,L2,L3,N,G | 336 | |
| SC-SL5550-065-AW-NW | 3800-4200K | 8125 lm | 1500 | ||||||
| SC-SL5550-065-AW-WW | 2800-3200K | 7475 lm | 1500 | ||||||
| SC-SL5550-050-AW-A01-CW | 6000-6500K | 6000 lm | 50w | 1200 | AC 100-240V 50/60HZ | Dal | 7 wires, 1.5MM2 copper core, L1,L2,L3,N,G, DIM+, DIM- | 252 | |
| SC-SL5550-050-AW-A01-NW | 3800-4200K | 6250 lm | 1200 | ||||||
| SC-SL5550-050-AW-A01-WW | 2800-3200K | 5750 lm | 1200 |
Application:
Commercial and industrial lighting places, for example: supermarkets,shopping mall,parking lot,warehouses, workshops,fairs and so on.
1) What are the best selling products in Signcomplex?
- LED strip
- panel lights
- linear light
- high bay
- corn bulb
- tube
-LED controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
