- Input Voltage(V):
- AC200-240V
- CRI (Ra>):
- 80
- Beam Angle(°):
- 90°,60°
- Working Lifetime(Hour):
- 60000
- Lamp Body Material:
- Aluminum Alloy
- IP Rating:
- IP65
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Signcomplex
- Model Number:
- PW-150-AH-W-ZZ
- Light Source:
- LED
- Working Temperature(℃):
- -35 - 40
- Lamp Luminous Flux(lm):
- 16810/16370
- Lamp Luminous Efficiency(lm/w):
- 120
- Warranty:
- 5 Years
- Packing dimension:
- 393*190*375mm
- CCT:
- 5500k-6500k
- Gross weight:
- 4.4kg
- Beam angle:
- 90°,60°
- Max current(A):
- 0.85
- Net weight:
- 4 kg
- Item Type:
- Flood Lights
- LED Light Source:
- seoul SMD2835
- Supply Ability:
- 950000 Piece/Pieces per Month led projector light
- Packaging Details
- Common industrial packaging,Inner box and carton
- Port
- Shenzhen and Hongkong

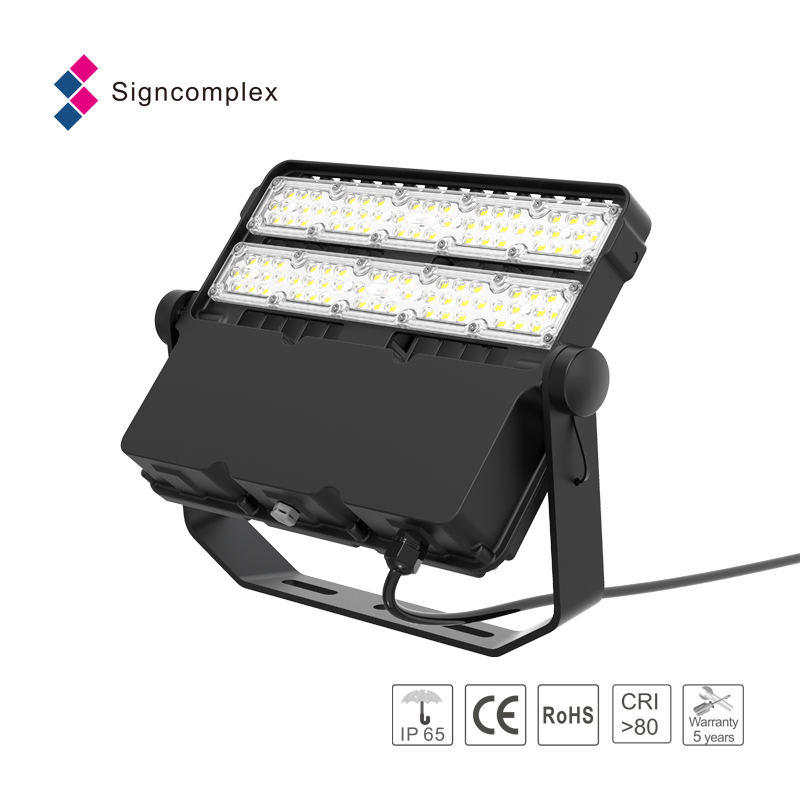

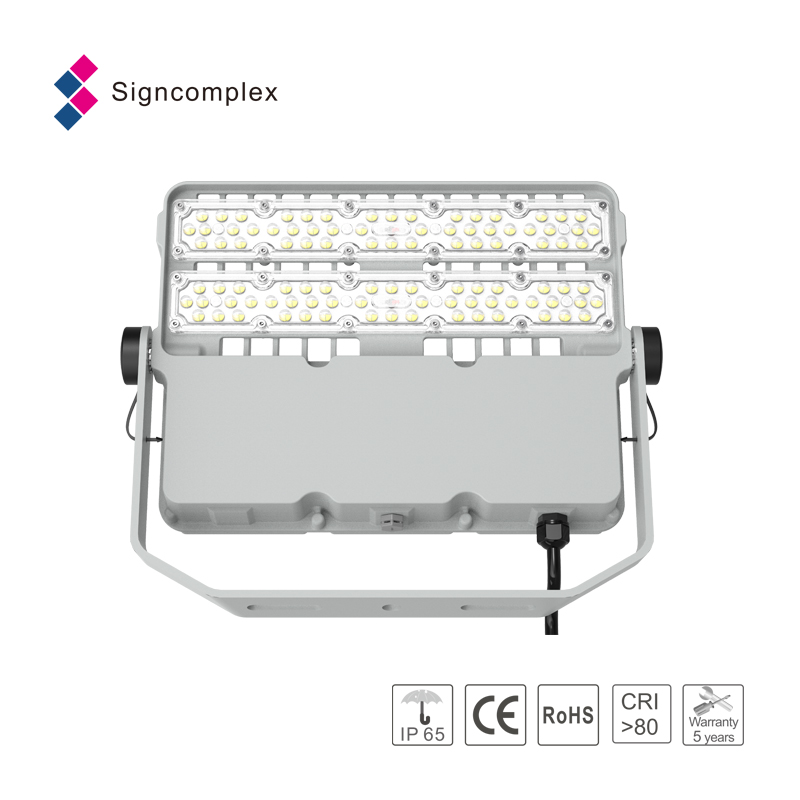

Best Price Waterproof IP65 Indoor Outdoor Led Flood Lighting Projector Light Christmas Outside Garden
PW-150/200/240/300/380/450-AH-XX-YY
Description :
PW series projector light employ high lighting effect LEDs,and its lighting effect can be up to be 120LM/W, the light save energy exceed 70% compared to high- voltage sodium lamp. PW projector light combine unique optical design,and it can be used as flood lighting and also as projecting lighting, optional angle 90°,60°,to reach lighting effect equal to other traditional light source. Adopt convection thermal design to prolong lifetime of LEDs, and its lifetime can be 60,000 hours. Power 150W-450W available, suitable for different lighting scene, landscape lighting and general lighting.
Features :
1.Employ die-casting aluminum alloy lamp body, durable,anti-corrosion; anti-UV PC lens,high impactresistance,uniform luminous surface;
2.Private mode patented product, die-casting mould,can be flexibly spliced, high stability in continuous working;
3.Adopt Seoul high lighting effect LEDs, can be up to 120 LM/W; higher lighting effect,more energysaving, lifetime can be up to 60,000 hours;
4.Multiple choice for power: 150W,200W,240W,300W,380W,450W;
5.Meanwell waterproof power supply, more reliable performance;
6.Designed with breathing apparatus, higher water-proof performance;
7.Ultra-slim design,beautiful appearance, lower transport cost;
8.CRI =80,good color rendering performance;
9.Operating environment temperature:-35℃~40℃;
10.Corrosion-proof grade: W.
Technical parameters :
Model | CCT | Color | Lumen (lm) | Beam angle | LED type | Voltage, frequency | Power (W)
| Max. current (A) | PF | CRI |
PW-150-AH-W-ZZ | 5500-6500K | White | 16810/16370 | 60°/90° | SMD2835 | AC200-240V 50/60Hz | 150W | 0.85A | >90 | >80 |
PW-150-AH-NW-ZZ | 3800-4200K | Neutral white | 16010/15590 | |||||||
PW-150-AH-WW-ZZ | 2700-3200K | Warm white | 15250/14850 | |||||||
PW-200-AH-W-ZZ | 5500-6500K | White | 23600/23580 | 60°/90° | SMD2835 | AC200-240V 50/60Hz | 200W | 1.2A | >90 | >80 |
PW-200-AH-NW-ZZ | 3800-4200K | Neutral white | 22480/22460 | |||||||
PW-200-AH-WW-ZZ | 2700-3200K | Warm white | 21410/21390 | |||||||
PW-240-AH-W-ZZ | 5500-6500K | White | 28980/28670 | 60°/90° | SMD2835 | AC200-240V 50/60Hz | 240W | 1.4A | >90 | >80 |
PW-240-AH-NW-ZZ | 3800-4200K | Neutral white | 27600/27300 | |||||||
PW-240-AH-WW-ZZ | 2700-3200K | Warm white | 26280/26000 | |||||||
PW-300-AH-W-ZZ | 5500-6500K | White | 34250/32840 | 60°/90° | SMD2835 | AC200-240V 50/60Hz | 300W | 1.8A | >90 | >80 |
PW-300-AH-NW-ZZ | 3800-4200K | Neutral white | 32620/31270 | |||||||
PW-300-AH-WW-ZZ | 2700-3200K | Warm white | 31070/29780 | |||||||
PW-380-AH-W-ZZ | 5500-6500K | White | 46430/44930 | 60°/90° | SMD2835 | AC200-240V 50/60Hz | 380W | 2.2A | >90 | >80 |
PW-380-AH-NW-ZZ | 3800-4200K | Neutral white | 44220/42790 | |||||||
PW-380-AH-WW-ZZ | 2700-3200K | Warm white | 42120/40750 | |||||||
PW-450-AH-W-ZZ | 5500-6500K | White | 55830/53270 | 60°/90° | SMD2835 | AC200-240V 50/60Hz | 450W | 2.5A | >90 | >80 |
PW-450-AH-NW-ZZ | 3800-4200K | Neutral white | 53170/50730 | |||||||
PW-450-AH-WW-ZZ | 2700-3200K | Warm white | 50640/48310 |
Application:
Mainly applied in outdoor flood lighting, building decoration, industry, sports center, outdoor stadium, parking lot lighting, and also can be used as roadway lighting.
1) What are the best selling products in Signcomplex?
- LED strip
- panel lights
- linear light
- high bay
- corn bulb
- tube
-LED controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
