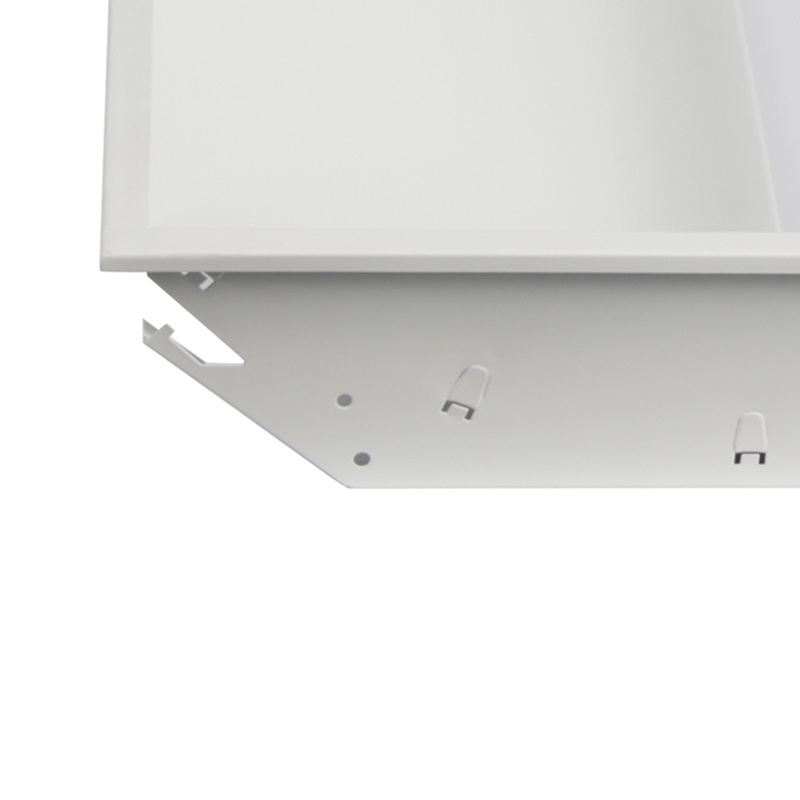

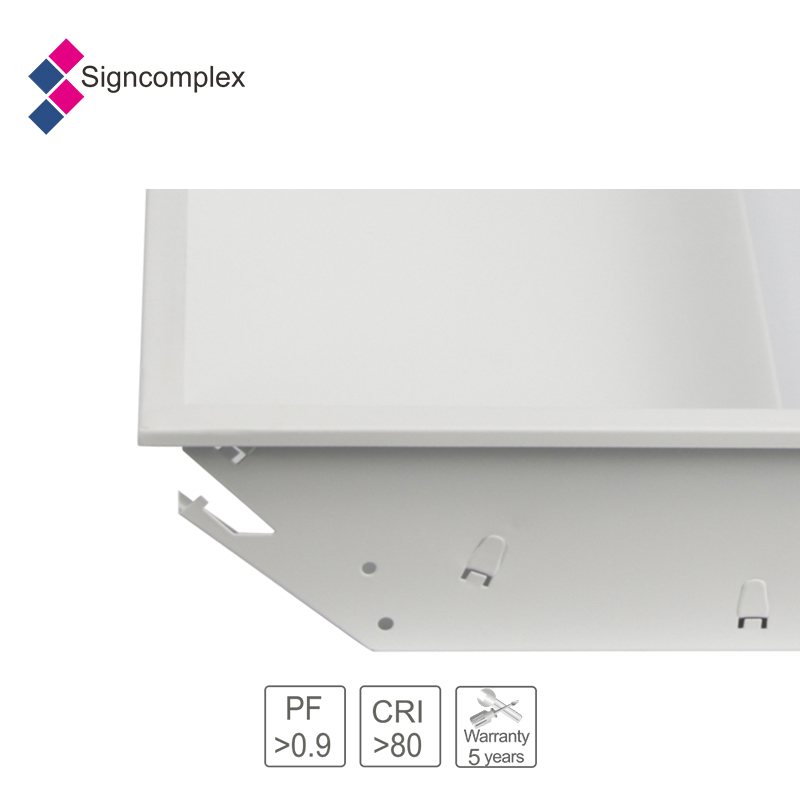

Shenzhen high efficacy panel light, dimmable 2x2 led troffer retrofit light
Click on the image to view the original image
Product: views:5Shenzhen high efficacy panel light, dimmable 2x2 led troffer retrofit light
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
4140lm
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-GLM-040-AW-6060s-01NE
Application:
office
Light Source:
LED
Color Temperature(CCT):
Pure White
Lamp Luminous Efficiency(lm/w):
100
color temperature:
3000K/4000K/5000K
Size:
2*2/2*4 feet
Product name:
led troffer light
Keyword:
led troffer retrofit light
Beam angle:
110°
Current:
0.5 A
PF:
>0.95
CRI:
>80
Item Type:
Panel Lights
LED Light Source:
SMD2835
Warranty(Years):
5
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month led troffer
Packaging & Delivery
Packaging Details
1pcs/inner box, 4 inner boxes/carton
Packing: 4pcs/ctn for 603x603 type
Port
shenzhen

Shenzhen High Efficacy Panel Light,Dimmable 2x2 Led Troffer Retrofit Light

LED Troffer Light(0-10V Dimming)













Features:

1.Visual uniformity
The back-lit LED troffer can produce a very soft natural light and give a comfortable lighting envirnment with
a radian cover.

2.LED efficiency
high lumen LED efficacy,100lm/w &125LM/W for option..

3.Luminaire construction
Powder coat pained die-rolling iron housing,with fireproof juction box on the back for electronical
connection,PC cover with milky color for lighting distribution.

4.Driver
Universal voltage 100-277VAC with integral 0-10V dimming system,no flicker.For non-dimming
requirements,do not connect to dimming control during installation.

5.Cost and energy saving
-50% more energy saving effect than fluorescent tubes
-low heat generation,extra energy saving effect through reduction of HVAC load.
-Easy installation: only 3 steps in 2 minutes, labor cost saving

6.long life time
more than 50,000 hours life time and 5 years warranty.

Specifications:

ModelCCTSIZE(feet)ColorLed TypeLumen(lm)Beam (angle)PowerVoltage(v)DimmerCurrentPF
SC-GLM-040-AW-6060s-01CE5000K2*2cool whiteSMD28354200lm110°40WAC 100-277 50/60HZ0-10v 0.5>0.95
SC-GLM-040-AW-6060s-01NE4000K2*2natural white4140lm110°
SC-GLM-040-AW-6060s-01WE3000K2*2warm white4040lm110°
SC-GLM-030-AW-6060H-01CE5000K2*2cool whiteSMD28353810lm110°30WAC 100-277 50/60HZ0-10v0.5>0.95
SC-GLM-030-AW-6060H-01NE4000K2*2natural white3750lm110°
SC-GLM-030-AW-6060H-01WE3000K2*2warm white3720lm110°
SC-GLM-040-AW-6060H-01CE5000K2*2cool whiteSMD28355200lm110°40WAC 100-277 50/60HZ0-10v0.5>0.95
SC-GLM-040-AW-6060H-01NE4000K2*2natural white5080lm110°
SC-GLM-040-AW-6060H-01WE3000K2*2warm white5040lm110°
SC-GLM-050-AW-6060s-01CE5000K2*4cool whiteSMD28355200lm110°30WAC 100-277 50/60HZ0-10v0.5>0.95
SC-GLM-050-AW-6060s-01NE4000K2*4natural white5100lm110°
SC-GLM-050-AW-6060s-01WE3000K2*4warm white5000lm110°



Applications:

General lighting such as offices,hotels,home,shops,hospitals,schools.

Main products



Certifications



Company Image











Trade Shows



Sales Team



Production line



FAQ

1) What are the best selling products in Signcomplex?
- tube
- panel lights
- LED strips
- spot and bulb
- controllers

2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.

3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.

5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.

9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.

10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
