Home > Products > shenzhen energy-saving slim led downlight recessed 18w with CE RoHS and 3 years warranty

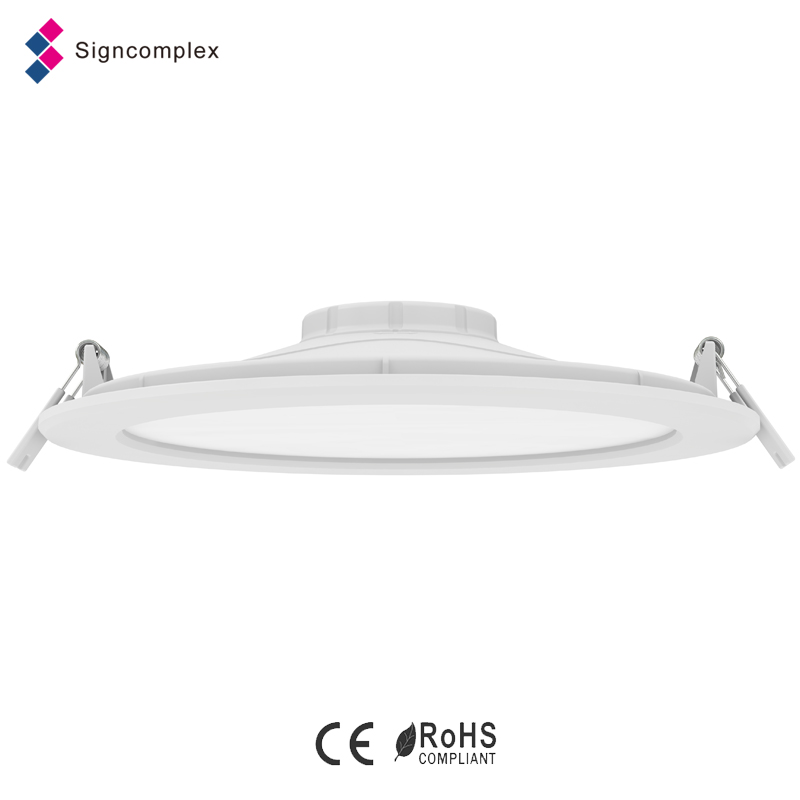

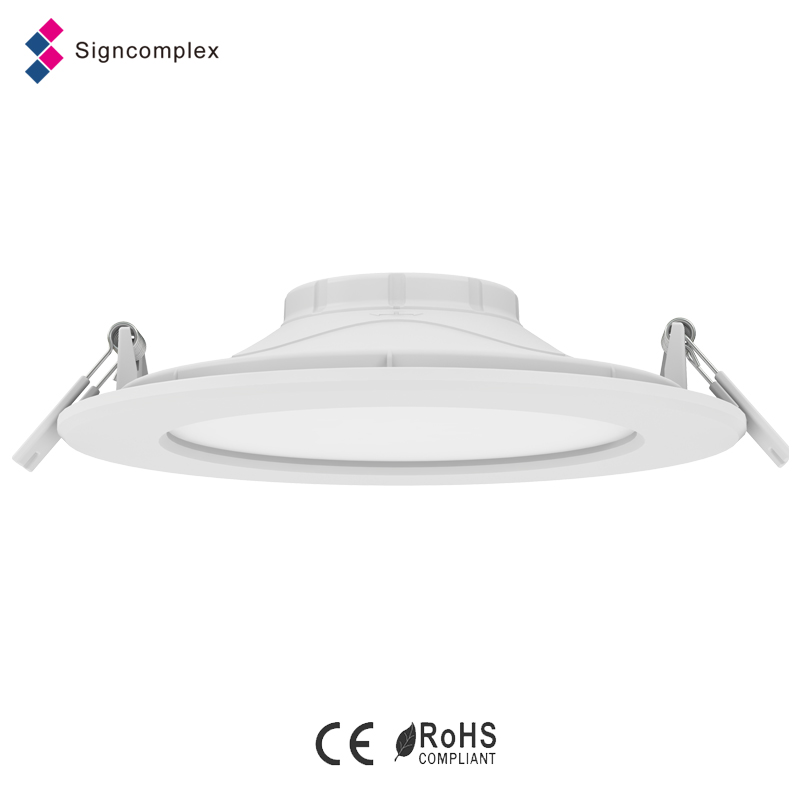

shenzhen energy-saving slim led downlight recessed 18w with CE RoHS and 3 years warranty
Click on the image to view the original image
Product： views：3shenzhen energy-saving slim led downlight recessed 18w with CE RoHS and 3 years warranty
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
1650lm
Working Lifetime(Hour):
50000
Lamp Body Material:
Plastic
Certification:
CE, RoHS
Model Number:
DKL8-018-AW-W-01H
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Product name:
shenzhen energy-savingslim led downlight recessed 18w
Keyword:
led downlight recessed 18w
Size:
105*39
LED quantity:
48
CCT:
5000K
Beam angle:
110°
Maximum current(mA):
90
Application:
Indoor Lighting
Net weight:
0.43KG
Key word:
led downlight
Item Type:
Downlights
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-20 - +40
CRI (Ra>):
80
LED Light Source:
SMD2835
Warranty(Years):
3 years
Lamp Power(W):
18
Lamp Luminous Efficiency(lm/w):
91.6
Supply Ability
Supply Ability:
500000 Piece/Pieces per Week LED downlight
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Yantian
Lead Time:
Shipped in 15 days after payment

Shenzhen Energy-saving  Slim Led Downlight Recessed 18w with CE RoHS and 3 years warranty

Product Description

Features:

*The main body adopt plastic material,without screw design .
*Light guiade plate adopt high transmittance PMMA .
*Unique and delicate looking design.
*Excellent heat dissipation performance to ensure the long
    lifetime of LED.
*The driver can be replaced independently.
*High-efficient and energy -saving LED driver.





 Technical parameters(general bright):

Modual

Number

ColorLed TyperLed QtyCCTLighht OutoutLuminous EfficacyPowerMaximum current(mA)

Voltage



Beam

angle

Net

weight

 PF
DKL4-008-AW-W-01white

2835



485000k550lm68.7lm/w8W<90

100-277VAC

50/60Hz

110°0.14KG≥0.9
DKL4-008-AW-NW-01Neutral white4000k530lm66.2lm/w
DKL4-008-AW-WW-01warm white3000k490lm61.2lm/w
DKL6-012-AW-W-01white725000k920lm76.7lm/w12W<1350.28KG
DKL6-012-AW-NW-01Neutral white4000k880lm73.3lm/w
DKL6-012-AW-WW-01warm white3000k820lm67.5lm/w
DKL8-018-AW-W-0white1105000k1420lm78.8lm/w18W<2000.43KG
DKL8-018-AW-NW-01Neutral white4000k1360lm75.5lm/w
DKL8-018-AW-WW-01warm white3000k1250lm69.4lm/w



 Technical parameters(high bright):

Modual

Number

ColorLed TyperLed QtyCCTLighht OutoutLuminous EfficacyPowerMaximum current(mA)

Voltage

Beam angle

Net

weight

 PF
DKL4-008-AW-W-01Hwhite2835485000k650lm81.2lm/w8W<90100-277VAC

50/60Hz

110°0.14KG≥0.9
DKL4-008-AW-NW-01HNeutral white4000k620lm77.5lm/w
DKL4-008-AW-WW-01Hwarm white3000k570lm71.2lm/w
DKL6-012-AW-W-01Hwhite725000k1080lm90.0lm/w12W<1350.28KG
DKL6-012-AW-NW-01HNeutral white4000k1030lm85.8lm/w
DKL6-012-AW-WW-01warm white3000k960lm79.1lm/w
DKL8-018-AW-W-01Hwhite1105000k1650lm91.6lm/w18W<2000.43KG
DKL8-018-AW-NW-01HNeutral white4000k1580lm87.7lm/w
DKL8-018-AW-WW-01Hwarm white3000k1450lm80.5lm/w
