- Type:
- LED Tri-proof Lights
- Model Number:
- VT2F-020-AW-50K-D01
- Product Name:
- LED tri-proof light 30w
- Power:
- 30w
- Input Voltage:
- AC100~277V
- IP Rate:
- IP65
- IK grade:
- IK08
- Power Factor:
- PF>0.9
- Lifespan:
- 50000 Hrs
- Length:
- 0.6M 1.2m
- Application:
- Parking Lot , flood factory and other places
- Light Efficacy:
- 150LM/W
- Supply Ability:
- 50000 Piece/Pieces per Month
- Packaging Details
- Commercial inner box and carton
- Port
- shenzhen
High Quality IK08 IP65 Tri-proof Light Fixture,Led Tri-proof Light 30w with 5 Years warranty
VT Series
VT2F-020/030-AW-XXK-YY
VT4F-030/040/050/060-AW-XXK-YY
Description of the led tri-proof light fixture:

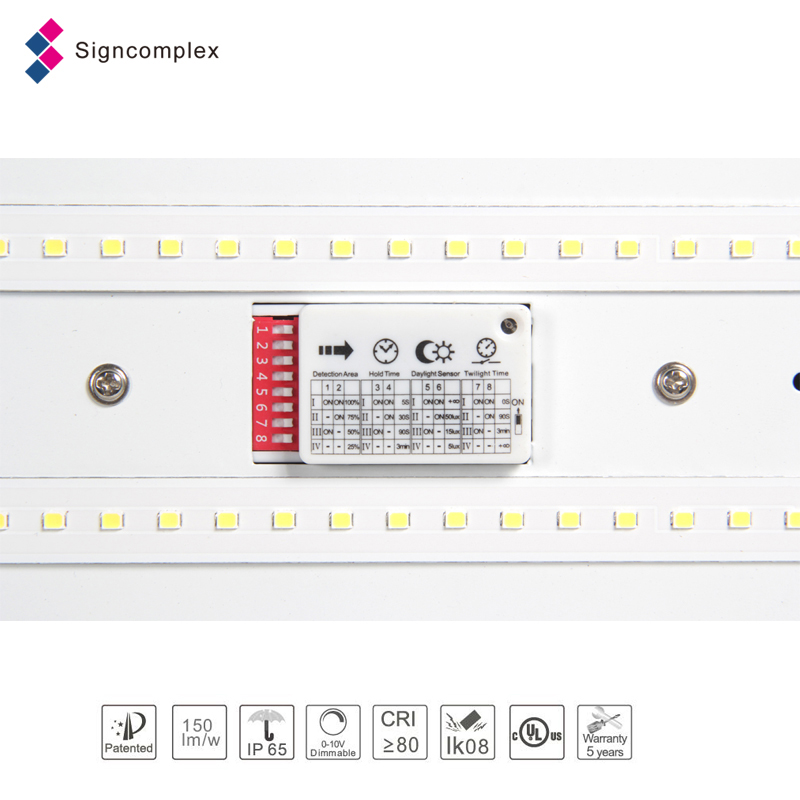

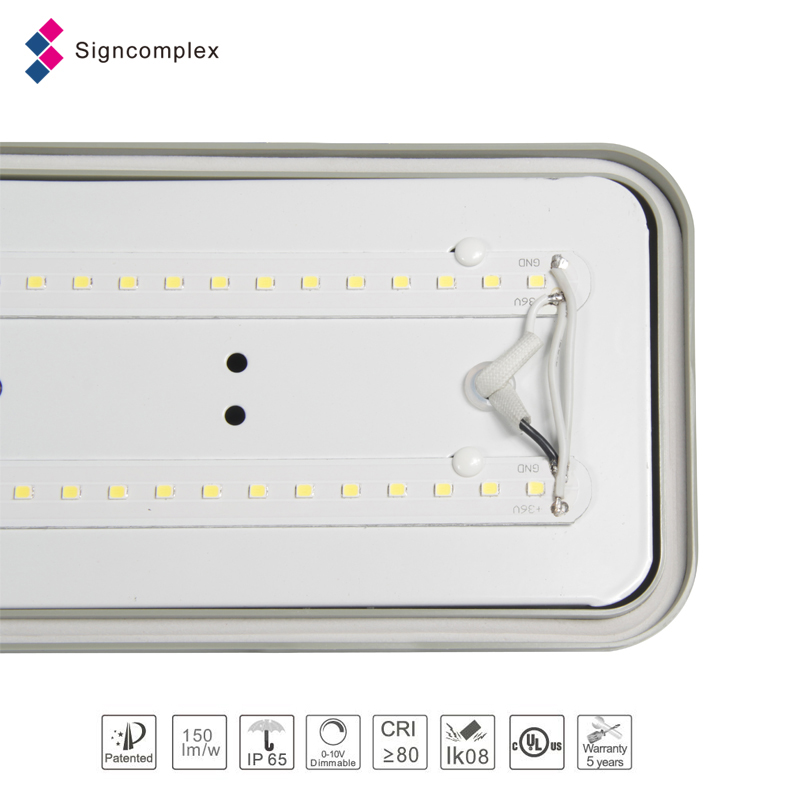

VT series is usually used in environment which require water-proof,dust-proof,slight corrosion-proof lighting, and it is widely used in parking lot,food factory, dust factory, cold storage, station and other indoor places; VT series lamp can be ceiling mounted or suspension mounted;the lamp adopt PC as eco-friendly material,and it can work stably in different environment;the lamp adopt LEDs of high lighting effect up to 150LM/W, and it can save energy 70% above.Built-in sensor, beautiful appearance, convenient to install, suitable for different applications. Power supply with iron shell, equipped with high quality LEDs, lifespan up to 50,000 hours.
Features :
1.Knob buckle, easy to operate; add shockproof and anti-loose bumping, more securely;
2.Screwless wire connection, tool free (press type wiring );
3.Power supply cooling via metal shell, better cooling effect than plastic shell;
4.Adopt CLASS P power supply,more flexible choice;
5.Milky white cover and strips cover optional;
6.Plastic buckle and metal buckle optional;
7.When installation, the buckle can hang the PC cover, convenient to connect wire;
8.Plastic PG13.5 and quick-connect terminal optional;
9.High transmittance top cover, high lighting effect,uniform and soft light;
10.Plastic shell, low weight,suitable for ceiling and suspension installation;
11.PC cover,impact resistance,IK08;
12.Operating environment temperature:-20ºC- 45ºC;
13.Corrosion-proof grade: slight protection.
Specification:
Model | CCT | Lumen(lm) (±10%) | Beam angle | LED Type | Power(w) (±10%) | Voltage Frequency, Current | CRI | PF |
VT2F-020-AW-50K-D01 | 5000K | 2760 | 120° | SMD2835 | 20w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT2F-020-AW-40K-D01 | 4000K | 2700 | ||||||
VT2F-020-AW-35K-D01 | 3500K | 2600 | ||||||
VT2F-020-AW-30K-D01 | 3000K | 2600 | ||||||
VT2F-020-AW-50K-D02 | 5000K | 2640 | 120° | SMD2835 | 20w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT2F-020-AW-40K-D02 | 4000K | 2600 | ||||||
VT2F-020-AW-35K-D02 | 3500K | 2540 | ||||||
VT2F-020-AW-30K-D02 | 3000K | 2540 | ||||||
VT2F-030-AW-50K-D01 | 5000K | 4140 | 120° | SMD2835 | 30w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT2F-030-AW-40K-D01 | 4000K | 4050 | ||||||
VT2F-030-AW-35K-D01 | 3500K | 3900 | ||||||
VT2F-030-AW-30K-D01 | 3000K | 3900 | ||||||
VT2F-030-AW-50K-D02 | 5000K | 3960 | 120° | SMD2835 | 30w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT2F-030-AW-40K-D02 | 4000K | 3900 | ||||||
VT2F-030-AW-35K-D02 | 3500K | 3810 | ||||||
VT2F-030-AW-30K-D02 | 3000K | 3810 | ||||||
VT4F-030-AW-50K-D01 | 5000K | 4140 | 120° | SMD2835 | 30w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT4F-030-AW-40K-D01 | 4000K | 4050 | ||||||
VT4F-030-AW-35K-D01 | 3500K | 3900 | ||||||
VT4F-030-AW-30K-D01 | 3000K | 3900 | ||||||
VT4F-030-AW-50K-D02 | 5000K | 3960 | 120° | SMD2835 | 30w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT4F-030-AW-40K-D02 | 4000K | 3900 | ||||||
VT4F-030-AW-35K-D02 | 3500K | 3810 | ||||||
VT4F-030-AW-30K-D02 | 3000K | 3810 | ||||||
VT4F-040-AW-50K-D01 | 5000K | 5520 | 120° | SMD2835 | 40w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT4F-040-AW-40K-D01 | 4000K | 5400 | ||||||
VT4F-040-AW-35K-D01 | 3500K | 5200 | ||||||
VT4F-040-AW-30K-D01 | 3000K | 5200 | ||||||
VT4F-040-AW-50K-D02 | 5000K | 5280 | 120° | SMD2835 | 40w | AC 100-277 50/60Hz | ≥80 | ≥0.9 |
VT4F-040-AW-40K-D02 | 4000K | 5200 | ||||||
VT4F-040-AW-35K-D02 | 3500K | 5080 | ||||||
VT4F-040-AW-30K-D02 | 3000K | 5080 |
Products Application:
Tri-proof light of medium power can be used in warehouse,parking lot,shopping mall,farm,food factory, cold storage, metro,underground passage and other places.
Mass production:
1) What are the best selling products in Signcomplex?
- LED strip
- Panel light
- Linear light
- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack / Shoebox / Canopy light / Tri-proof light
- Corn bulb
- LED tube
- Emergency light (Exit Sign / Emergency Downlight / Camping Light)
- LED Controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
