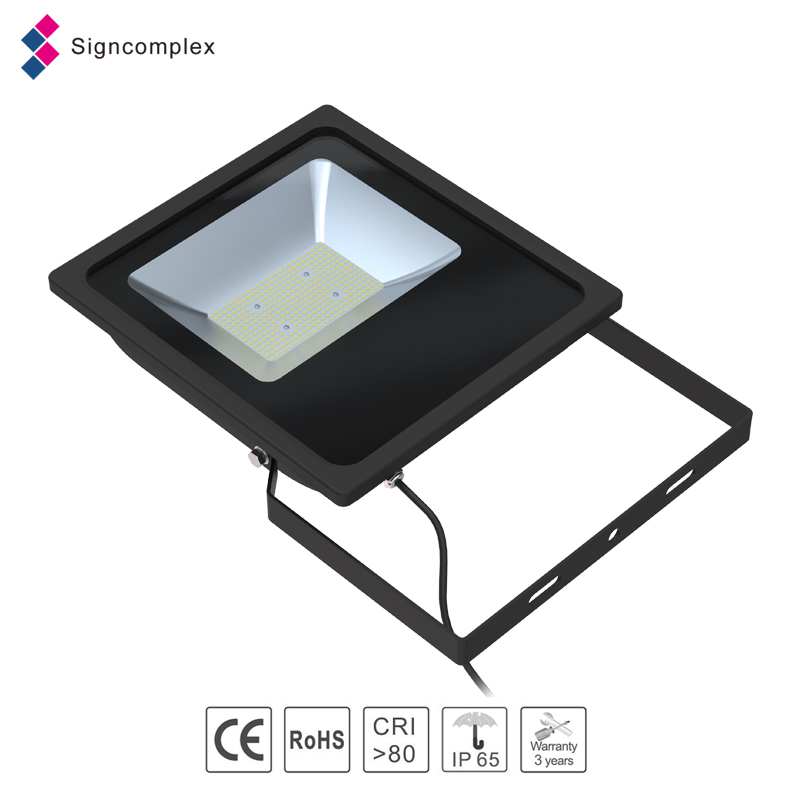

Signcomplex Ip65 110LM/W flood light bulbs led flood light 10w with 3 years warranty

Click on the image to view the original image

Product：	views：4Signcomplex Ip65 110LM/W flood light bulbs led flood light 10w with 3 years warranty
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:39

Product Details

Overview

Quick Details

Input Voltage(V):: AC200-240V

CRI (Ra>):: 80

Beam Angle(°):: 120 Degree

Working Lifetime(Hour):: 60000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP65

Certification:: CE, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: FL-010-230-W-AC-YY

Light Source:: LED

Lamp Luminous Flux(lm):: 960

Working Temperature(℃):: -20 - 40

Product Name:: led flood light

Power:: 150W

Max current:: 0.06A

Material:: Aluminum+Tempered Glass

Warranty:: 3 Years

certifications:: CE ROHS

Beam angle:: 120 degree

IP Grade:: WaterproofIP65

Keyword:: led flood light 10w

Item:: Signcomplex Ip65 110LM/W flood light bulbs led flood light

Item Type:: Flood Lights

Color Temperature(CCT):: Cool White

LED Light Source:: SMD2835

Lamp Power(W):: 10

Lamp Luminous Efficiency(lm/w):: 110

Supply Ability

Supply Ability:: 5000000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Commercial Inner box and carton

Port: shenzhen

Lead Time:: 7-12

AC Flood Light Series

FL-010/020/0303/050/070/100/150/230-XX-AC-YY

Features :

AC flood light employ capacitor-free technology,which greatly reduce the defete rate of driver and improve lifespan to 60,000 hours.Ultra-slim shape design,greatly save transport and installation cost.AC series empoly 2835 LEDs of high lighting effect,which can be up to 110 LM/W .10-150W available,suitable for differt ligting scene,landscape lighting and general lighting.

Description:

1.Employ die-casting aluminum alloy lamp body,high toughened glass cover ,durable,corrision-resistant;

2.High effect thermal management,LEDs integrated with power,can continue to work in high stability;Light lifespan can be up to 60,000 hours.

3.Can on/off frequently,no flicker or glare phenomenon;

4.Compact appearance,novel design,greatly reduce transportation ang installation cost;

5.High lighting effect LEDs,and lighting effect of light can be up to 110LM/W;

6.CRI=80,good color rendering performance;

7.Temperature of operating environment:-20-40°C;

8.Corrosion -proof grade:W

Technical parameters:

Model	CCT	Color	Lumen(lm)	Led Type	Power(w)	VoltageV)	Beam angle	Max current(A)	CRI
FL-010-230-W-AC-YY	5500-6500K	White	960	SMD 2835	10	AC200-240 50/60HZ	120°	0.06	>80
FL-010-230-NW-AC-YY	4000-4500K	Netural white	940
FL-010-230-WW-AC-YY	2700-3200K	Warm white	910
FL-020-230-W-AC-YY	5500-6500K	White	1900	SMD 2835	20	AC200-240 50/60HZ	120°	0.12	>80
FL-020-230-NW-AC-YY	4000-4500K	Netural white	1870
FL-020-230-WW-AC-YY	2700-3200K	Warm white	1830
FL-030-230-W-AC-YY	5500-6500K	White	2870	SMD 2835	30	AC200-240 50/60HZ	120°	0.18	>80
FL-030-230-NW-AC-YY	4000-4500K	Netural white	2810
FL-030-230-WW-AC-YY	2700-3200K	Warm white	2750
FL-050-230-W-AC-YY	5500-6500K	White	4920	SMD 2835	50	AC200-240 50/60HZ	120°	0.3	>80
FL-050-230-NW-AC-YY	4000-4500K	Netural white	4860
FL-050-230-WW-AC-YY	2700-3200K	Warm white	4780
FL-070-230-W-AC-YY	5500-6500K	White	6890	SMD 2835	70	AC200-240 50/60HZ	120°	0.40	>80
FL-070-230-NW-AC-YY	4000-4500K	Netural white	6800
FL-070-230-WW-AC-YY	2700-3200K	Warm white	6660
FL-100--230-W-AC-YY	5500-6500K	White	10030	SMD 2835	100	AC200-240 50/60HZ	120°	0.6	>80
FL-100-230-NW-AC-YY	4000-4500K	Netural white	9850
FL-100-230-WW-AC-YY	2700-3200K	Warm white	9640
FL-120-230-W-AC-YY	5500-6500K	White	11820	SMD 2835	120	AC200-240 50/60HZ	120°	0.7	>80
FL-120-230-NW-AC-YY	4000-4500K	Netural white	11700
FL-120-230-WW-AC-YY	2700-3200K	Warm white	11460
FL-150-230-W-AC-YY	5500-6500K	White	14790	SMD 2835	150	AC200-240 50/60HZ	120°	0.85	>80
FL-150-230-NW-AC-YY	4000-4500K	Netural white	11610
FL-150-230-WW-AC-YY	2700-3200K	Warm white	14310

Application:

Mainly applied in outdoor flood lighting,building decoration,industry,sports centers,outdoor stadium,port,parking lot lighting and can also be used as roadway lighting.
