100lm/w Square LED Panel Light 40w with 5 Years Warranty
LED Panel Light(0-10V Dimming)
100LM/W, Standard version
SC-PSCAWXE6060-X40W
SC-PSCAWXE3012-X40W
SC-PSCAWXE6012-X50W

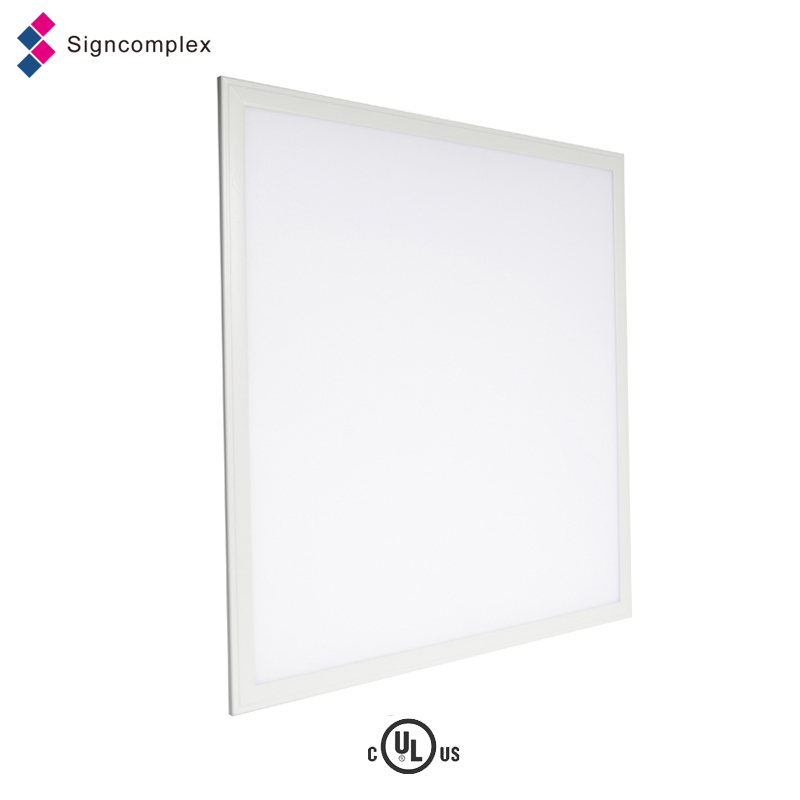

Description:
LED Square Panel Light . Using Light Guide Plate, it has the feature of uniform and smooth light beam,low glarerating, low light pollution, and excellent protection from eyestrain. It can be widely used as interior lighting in shops, supermarkets, malls and hospitals, etc
Features:
1.Visual uniformity
The edge-lit LED panels blend with various ceiling details and produce soft natural light
2.Low glare lighting
The edge mounted LEDs give even glare free special illumination.It produces a comfortable lighting environment.
3.LED efficiency
High lumen LED efficacy paired with high power factor drivers reduce operating cost.
4. Luminaire construction
A powder coat painted extruded aluminum frame encompasses the perimeter of multi-layered acrylic panel

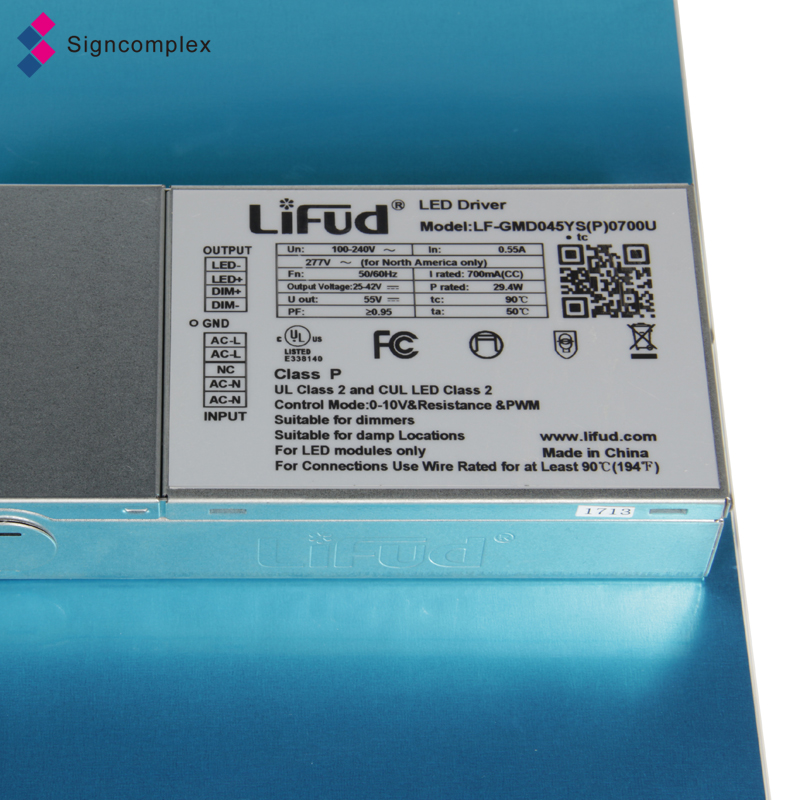

system..The fireproof metal junction box is attached at the backside of the panel light.
5.Cost and energy saving
50% more energy saving effect than fluorescent tubes.
Low heat generation,extra energy saving effect through reduction of HVAC load.
Easy installation:only 3 steps in 2 minutes,labor cost saving
Around 9mm lamp body with very light weight,space and transportation cost saving
6.Long life time
More than 50,000 hours life time and 5 years warranty.
Applications:
X Series Square Panel Light can be used
in hotels,meeting rooms,factories,offices,
commercial purposes,residential,institution
buildings,schools,hospitals,places which
needs energy saving and high color rendering
index lighting.
Specification:
| Model | CCT | Size(feet) | Color | Led Type | Lumen(lm) | CRI | Beam angle | Power(W) | Voltage(V) |
| SC-PSCAWWE6060-X40W | 3000k | 2*2 | White | 2835 | 4200 | >80 | 110° | 40 | AC100-277V 50/60HZ |
| SC-PSCAWNE6060-X40W | 4000k | 2*2 | Natural white | 4400 | >80 | 110° | AC100-277V 50/60HZ | ||
| SC-PSCAWCE6060-X40W | 5000k | 2*2 | Warm white | 4400 | >80 | 110° | AC100-277V 50/60HZ | ||
| SC-PSCAWWE3012-X40W | 3000k | 1*4 | White | 2835 | 4200 | >80 | 110° | 40 | AC100-277V 50/60HZ |
| SC-PSCAWNE3012-X40W | 4000k | 1*4 | Natural white | 4400 | >80 | 110° | AC100-277V 50/60HZ | ||
| SC-PSCAWCE3012-X40W | 5000k | 1*4 | Warm white | 4400 | >80 | 110° | AC100-277V 50/60HZ | ||
| SC-PSCAWWE6012-X50W | 3000k | 2*4 | White | 2835 | 5250 | >80 | 110° | 50 | AC100-277V 50/60HZ |
| SC-PSCAWNE6012-X50W | 4000k | 2*4 | Natural white | 5500 | >80 | 110° | AC100-277V 50/60HZ | ||
| SC-PSCAWCE6012-X50W | 5000k | 2*4 | Warm white | 5500 | >80 | 110° | AC100-277V 50/60HZ |
