smd2835 High Lumen Led Efficacy Led Panel 125lm/w with 5 Years Warranty
LED Panel Light(0-10V Dimming)
125LM/W, PREMIUM VERSION

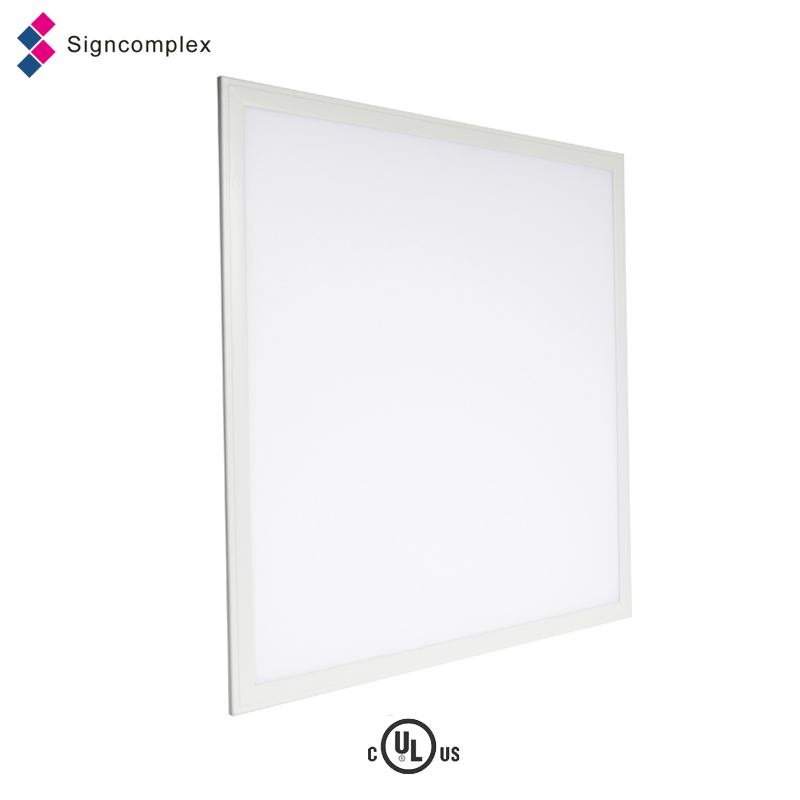

Description:
LED Square Panel Light . Using Light Guide Plate, it has the feature of uniform and smooth light beam,low
glarerating, low light pollution, and excellent protection from eyestrain. It can be widely used as interior
lighting in shops, supermarkets, malls and hospitals, etc
Features:
1.Visual uniformity
The edge-lit LED panels blend with various ceiling details and produce soft natural light
2.Low glare lighting
The edge mounted LEDs give even glare free special illumination.It produces a comfortable lighting environment.
3.LED efficiency
High lumen LED efficacy paired with high power factor drivers reduce operating cost.
4. Luminaire construction
A powder coat painted extruded aluminum frame encompasses the perimeter of multi-layered acrylic panel

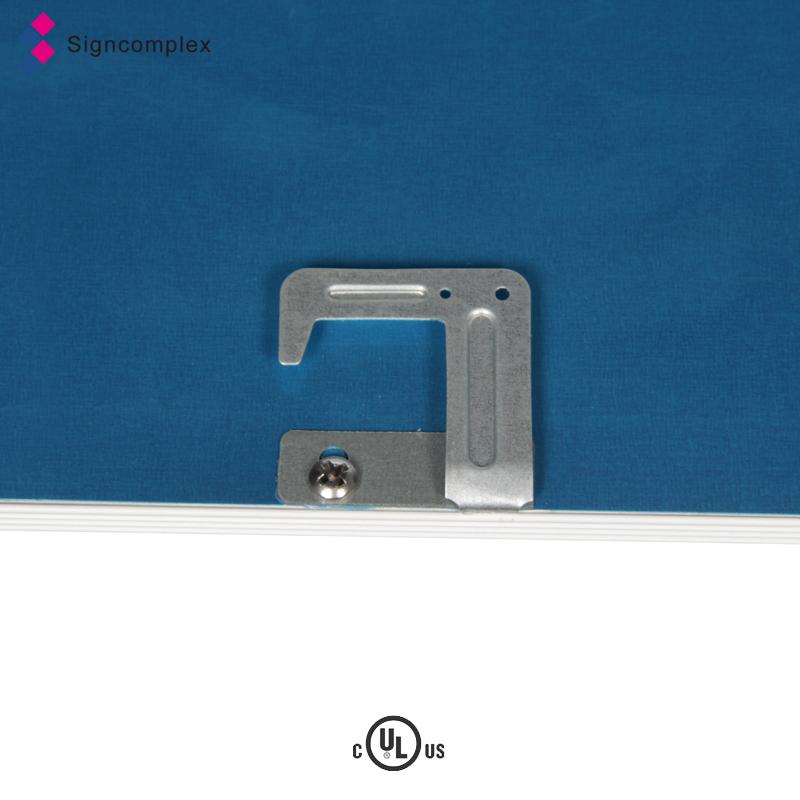

system..The fireproof metal junction box is attached at the backside of the panel light.
5.Cost and energy saving
50% more energy saving effect than fluorescent tubes.
Low heat generation,extra energy saving effect through reduction of HVAC load.
Easy installation:only 3 steps in 2 minutes,labor cost saving
Around 9mm lamp body with very light weight,space and transportation cost saving
6.Long life time
More than 50,000 hours life time and 5 years warranty.
Applications:
X Series Square Panel Light can be used
in hotels,meeting rooms,factories,offices,
commercial purposes,residential,institution
buildings,schools,hospitals,places which
needs energy saving and high color rendering
index lighting.
Specification:
| Model | CCT | Size(feet) | Color | Led Type | Lumen(lm) | CRI | Beam angle | Power(W) | Voltage(V) |
| SC-PSCAWWE6060-H-X20W | 3000K | 2*2 | White | 2835 | 2400 | >80 | 110° | 20 | AC100-277V 50/60HZ |
| SC-PSCAWNE6060-H-X20W | 4000K | 2*2 | Natural white | 2835 | 2500 | >80 | 110° | AC100-277V 50/60HZ | |
| SC-PSCAWCE6060-H-X20W | 5000K | 2*2 | Warm white | 2835 | 2500 | >80 | 110° | AC100-277V 50/60HZ | |
| SC-PSCAWWE6060-H-X25W | 3000K | 2*2 | White | 2835 | 3000 | >80 | 110° | 25 | AC100-277V 50/60HZ |
| SC-PSCAWNE6060-H-X25W | 4000K | 2*2 | Natural white | 2835 | 3125 | >80 | 110° | AC100-277V 50/60HZ | |
| SC-PSCAWCE6060-H-X25W | 5000K | 2*2 | Warm white | 2835 | 3125 | >80 | 110° | AC100-277V 50/60HZ | |
| SC-PSCAWWE6060-H-X30W | 3000K | 2*2 | White | 2835 | 3600 | >80 | 110° | 30 | AC100-277V 50/60HZ |
| SC-PSCAWNE6060-H-X30W | 4000K | 2*2 | Natural white | 2835 | 3750 | >80 | 110° | AC100-277V 50/60HZ | |
| SC-PSCAWCE6060-H-X30W | 5000K | 2*2 | Warm white | 2835 | 3750 | >80 | 110° | AC100-277V 50/60HZ |
Request pirce? a sample? or custom order?
Contact us now for more discount!
1) What are the best selling products in Signcomplex?
- LED strip
- Panel light
- Linear light
- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack / Shoebox / Canopy light / Tri-proof light
- Corn bulb
- LED tube
- Emergency light (Exit Sign / Emergency Downlight / Camping Light)
- LED Controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
