- Warranty(Years):
- 5
- Input Voltage(V):
- AC 100-240V 50/60Hz
- Lamp Luminous Efficiency(lm/w):
- 150
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 40
- Working Lifetime(Hour):
- 30000
- Lamp Body Material:
- Aluminum alloy and PMM
- IP Rating:
- IP40
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Signcomplex
- Model Number:
- SC-SL9070-040-AW-CW
- Light Source:
- LED
- Color Temperature(CCT):
- Pure White
- LED Light Source:
- SMD 2835
- Lamp Luminous Flux(lm):
- 6105
- Length:
- 1200mm
- Color:
- white black and grey
- Beam angle:
- 90°
- PF:
- >0.95
- CCT:
- 6000-6500K
- LED Pcs:
- 252
- Energy saving:
- 90%
- Item Type:
- Tube Lights
- Supply Ability:
- 850000 Piece/Pieces per Month we have stock for the led linear hanging light
- Packaging Details
- Common industrial packaging,Inner box and carton
- Port
- Shenzhen and Hongkong
New 150lm/w Linear Continuous Led Linear Light for Commercial And Industrial Lighting Places

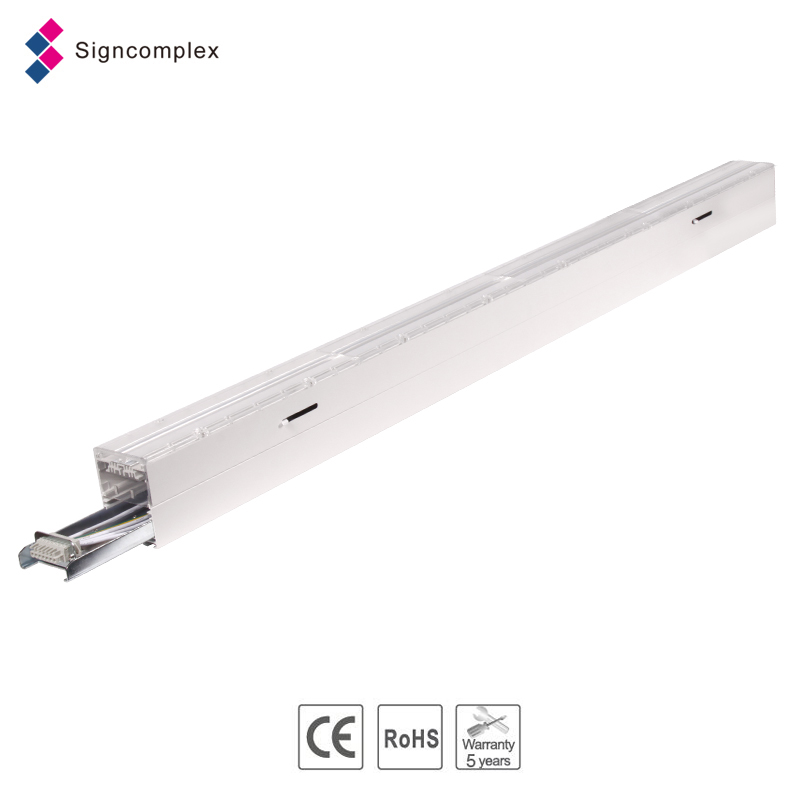

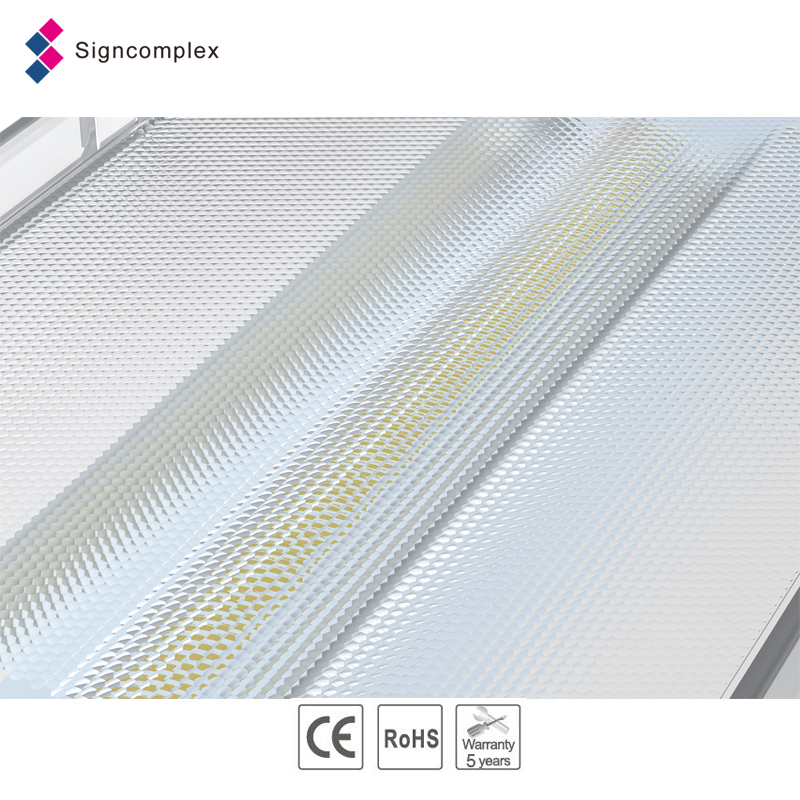

SL 9070 LED Linear Light
LED linear trunking system
Description:
SL9070 is the latest new led trunking linear system, it is divied to 2 parts-the aluminum trunking rail and the linear lighting module,easy to install and maintain. It is pre-mounted with 5/7 wires, with 3 phase and 4 wires electronical circuit design, can work at the continuous run 250m.It is widely used for supermarkets, warehouses, workshops, fairs and so on.
Application:
Commercial and industrial lighting places, for example: supermarkets,shopping mall,parking lot,warehouses, workshops,fairs and so on.
Specifications:
Model | CCT | LED Type | Lumen(lm) (±10%) | Power (±10%) | Length (mm) | Voltage (V) | Dimming Optional | Pre -wired | LED psc |
SC-SL9070-040-AW-CW | 6000-6500K | 2835 | 6105 | 40w | 1200 | AC100-240V 50/60HZ | non -dimmable | 5wires, 2.5MM2 copper core,L1,L2 ,L3,N,G | 252 |
SC-SL9070-040-AW-NW | 3800-4200K | 5810 | 40w | 1200 | |||||
SC-SL9070-040-AW-WW | 2800-3200K | 5530 | 40w | 1200 | |||||
SC-SL9070-050-AW-CW | 6000-6500K | 7400 | 50w | 1500 | AC 100-240V 50/60HZ | 336 | |||
SC-SL9070-050-AW-NW | 3800-4200K | 6800 | 50w | 1500 | |||||
SC-SL9070-050-AW-WW | 2800-3200K | 6600 | 50w | 1500 | |||||
SC-SL9070-075-AW-CW | 6000-6500K | 10500 | 75w | 2400 | AC 100-240V 50/60HZ | 504 | |||
SC-SL9070-075-AW-NW | 3800-4200K | 10010 | 75w | 2400 | |||||
SC-SL9070-075-AW-WW | 2800-3200K | 9520 | 75w | 2400 |
1) What are the best selling products in Signcomplex?
- LED strip
- Panel light
- Linear light
- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack / Shoebox / Canopy light / Tri-proof light
- Corn bulb
- LED tube
- Emergency light (Exit Sign / Emergency Downlight / Camping Light)
- LED Controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
