Home > Products > SMD 2835 20w 40w 50w waterproof led emergency tube light
SMD 2835 20w 40w 50w waterproof led emergency tube light
Click on the image to view the original image
Product: views:5SMD 2835 20w 40w 50w waterproof led emergency tube light
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Warranty(Years):
3
Input Voltage(V):
AC100-240V/ 50-60Hz
Lamp Luminous Efficiency(lm/w):
30
CRI (Ra>):
80
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CE, EMC, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
tri-proof lamp
Light Source:
LED
Color Temperature(CCT):
Pure White
LED Light Source:
SMD 2835 LED
Lamp Luminous Flux(lm):
4850
Model No.:
TP-050-AW-W-B-05
Input Current:
0.6A
LED Quantity:
416PCS
Net Weight:
2.93kg
Materials:
Aluminum profile+PC
CCT:
5500-6500K
Application:
warehouse,parking lot,shopping mall ,etc
Item Type:
Tube Lights
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month we have stock for the emergency tube light
Packaging & Delivery
Packaging Details
20w:
outer carton dimension:700*340*270mm(12pcs/carton)
40w:
outer carton dimension:1300*340*270mm(12pcs/carton)
50w:
outer carton dimension:1600*340*270mm(12pcs/carton)
Port
Shenzhen and Hongkong

SMD 2835 20w 40w 50w waterproof led emergency tube light







Emergency Medium Power Tri-proof Light with Built-in Power Supply

TP-020/040/050-B-05





Description:

Tri-proof light is usually used in environment which require water-proof,dust-proof,corrosion-proof lighting,such as shopping mall,warehouse and other indoor places.The lamp features smooth surface,no dust deposition,so it can be ceiling mounted or suspending mounted.The light is equipped with emergency power supply,when power outage,it can continuously work 3 hours with 30% brightness,charging time≤24 houus,suitable for places which need emergency lighting.





Features:

1.Water-proof design without adhesive ,so there is no water leakage caused by adhesive aging,convenient to disassemble;
2.Energy-saving and eco-friendly,no UV,no IR,or mercury,RoHS compliant;
3.Aluminum profile+PC,high shatterproof performance,good waterproof performance and anti-aging performance;
4.PC cover with high light transmittance+low power LEDs,uniform luminous surface,no dark spot;
5.High efficient cooling design,LEDs and power supply work in low temperature,high stability in continuous working;
6.Can on/off frequently,no flicker or glare;good color rendering performance;
7.Compact appearance,novel design,easy to install and transport.



Technical parameters:

ModelCCTLumen(lm)
(±10%)
LED Type
Quantity
CRIPower(w)
(±10%)
Voltage,
Frequency,
Current
PF
TP-020-AW-W-B-055500-6500K16202835
144pcs
≥8020AC100-240V
50/60Hz,
0.3A
≥0.9
TP-020-AW-NW-B-054000-4500K1600≥80
TP-020-AW-WW-B-052700-3200K1570≥80
TP-040-AW-W-B-055500-6500K32402835
336pcs
≥8040AC100-240V
50/60Hz,
0.5A
≥0.9
TP-040-AW-NW-B-054000-4500K3200≥80
TP-040-AW-WW-B-052700-3200K3140≥80
TP-050-AW-W-B-055500-6500K48502835
416pcs
≥8050AC100-240V
50/60Hz,
0.6A
≥0.9
TP-050-AW-NW-B-054000-4500K4770≥80
TP-050-AW-WW-B-052700-3200K4650≥80


Application:

Suitable for warehouse,parking lot,shopping mall ,farm,factory,cold storage,subway,underground passage,etc.

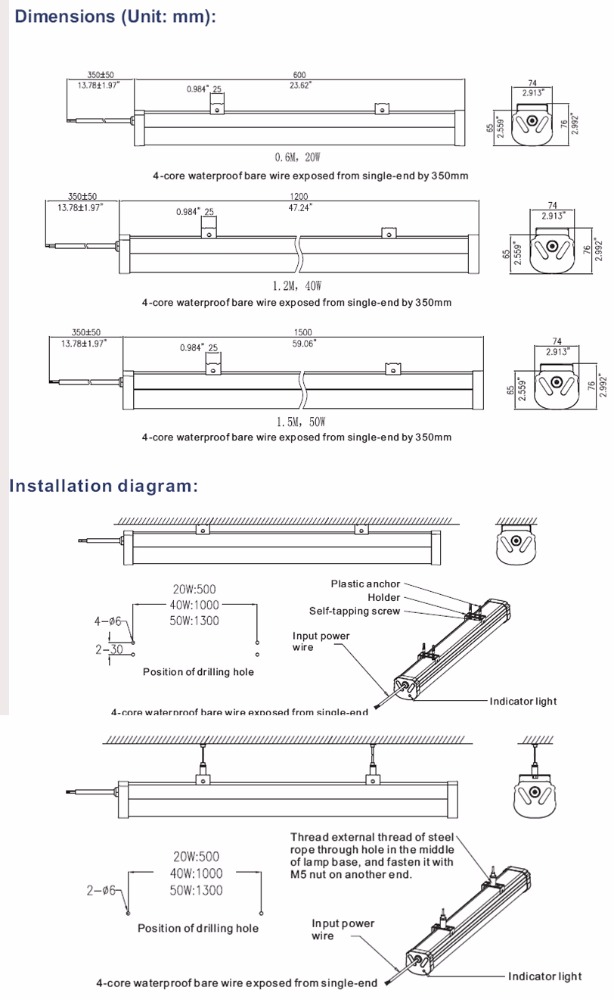

Dimensions(Unit:mm/inch):





Package:













Production line:







Warehouse:

convenient to purchase ,we set up a warehouse in the United State,customers can buy led strip,led tube ,led panel light,led corn lamp,led controller...



USA warehouse address: 6465 N.Avondale Ave. Chicago, IL 60631. USA
