Home > Products > high lumen efficacy AC100-277V led troffer light

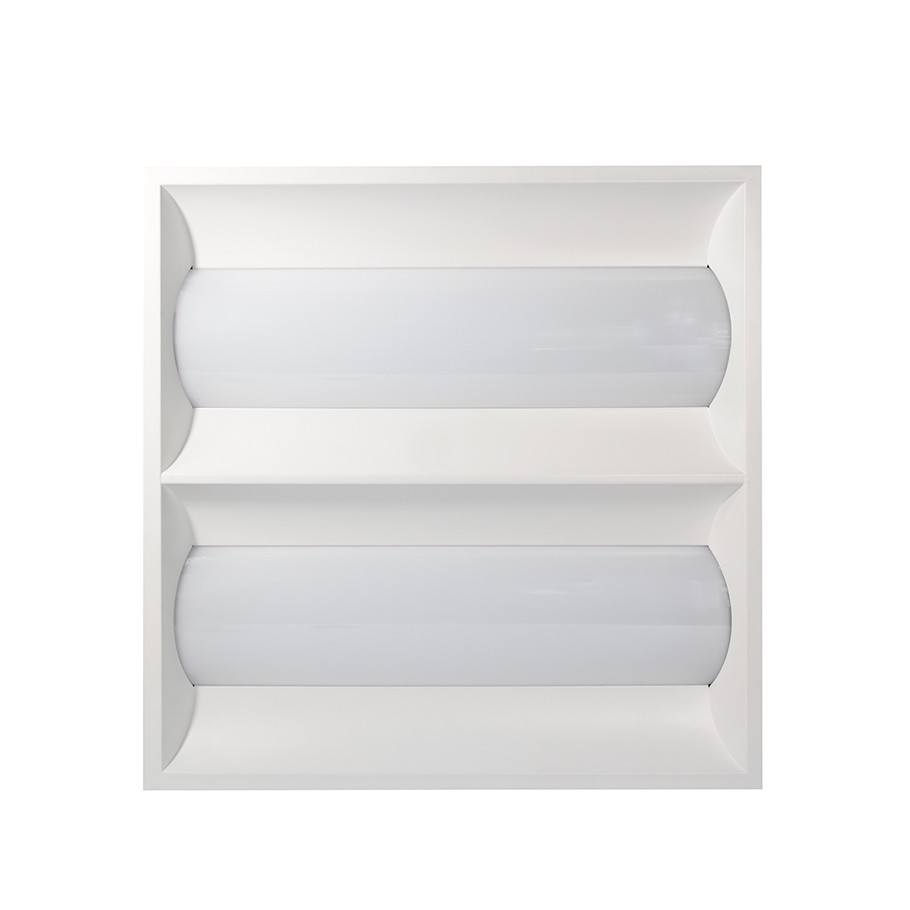

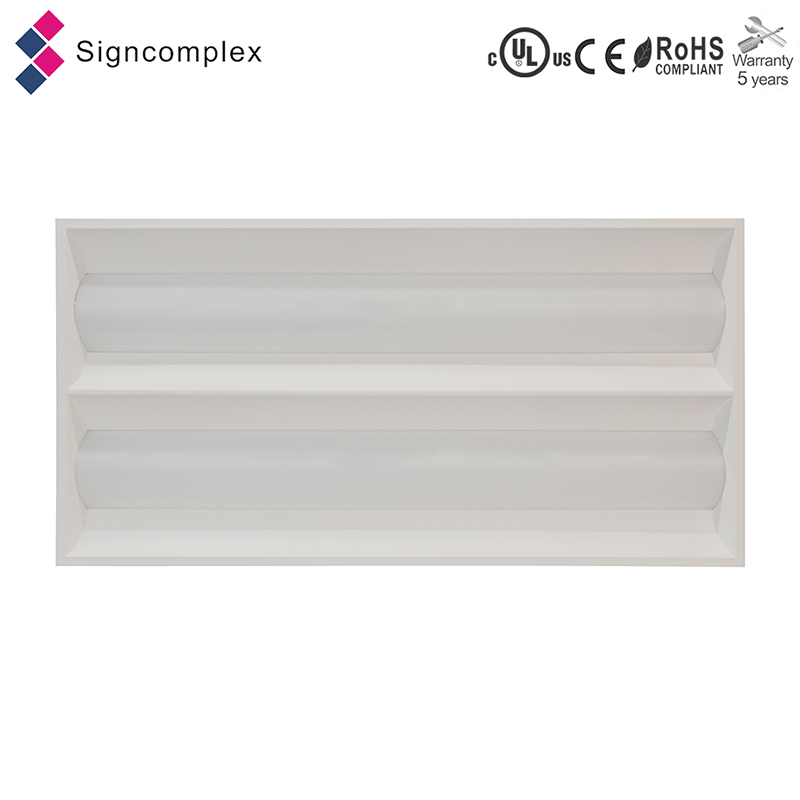

high lumen efficacy AC100-277V led troffer light
Click on the image to view the original image
Product: views:4high lumen efficacy AC100-277V led troffer light
Type: SC-GLN-040-AW-01CW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Type:
SC-GLN-040-AW-01CW
Certification:
CE RoHS
LED TYPE:
2835SMD
Lumen(lm) (±10%):
4330
Beam angle:
110 degree
Power(W) (±10%):
40w
Voltage (V):
AC100-277V 50/60Hz
Warranty:
5 years
CCT:
5000K
Size:
2*2ft
Keyword:
ledtroffer
item:
high lumen efficacy AC100-277V led troffer light
Supply Ability
Supply Ability:
950000 Piece/Pieces per Month we have stock for the ul led troffer light
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
40W
Net weight/PC:4.2 kg
Gross weight/CTN: 21.7 kg
Inner size: 710X710X184mm
Carton size: 730X392X724mm
1pcs/inner box,4 inner boxes/carton.
Port
Shenzhen and Hongkong

High lumen efficacy AC100-277V led troffer light



LED Troffer Light(0-10V Dimming)

Features
1.Visual uniformity
The back-l it LED troffer can produce a very soft natural light and give a comfortable l ighting envirnment with a radian cover.
2.LED efficiency
high lumen LED efficacy,up to 100LM/W for cool white and natural white.
3.Luminaire construction
Powder coat pained die-rolling iron housing,with fireproof juction box on the back for electronical
connection,PC cover with mi lky color for l ighting distribution.
4.Driver
Universal voltage 100-277VAC with integral 0-10V dimming system,no fl icker.For non-dimming
requirements,do not connect to dimming control during instal lation.
5.Cost and energy saving
-50% more energy saving effect than fluorescent tubes
-low heat generation,extra energy saving effect through reduction of HVAC load.
-Easy instal lation: only 3 steps in 2 minutes, labor cost saving
6.long life time
more than 50,000 hours l ife time and 5 years warranty.



Specifications:

ModelCCTSize
(feet)
ColorLED TypeLumen(lm)
(±10%)
CRIBeam anglePower(W)
(±10%)
Voltage
(V)
DimmerCurrent
(A)
PF
SC-GLN-040-AW-01CW5000K2*2cool white28354330≥80110°40WAC100-277V
50/60Hz
0-10V0.5>0.95
SC-GLN-040-AW-01NW4000K2*2natural white4305≥80110°
SC-GLN-040-AW-01WW3000K2*2warm white3678≥80110°
SC-GLN-055-AW-01CW5000K2*4cool white28355486≥80110°55WAC100-277V
50/60Hz
0-10V0.5>0.95
SC-GLN-055-AW-01NW4000K2*4natural white5516≥80110°
SC-GLN-055-AW-01WW3000K2*4warm white4924≥80110°



Applications
General lighting such as offices,hotels,home,shops,hospitals,schools.
