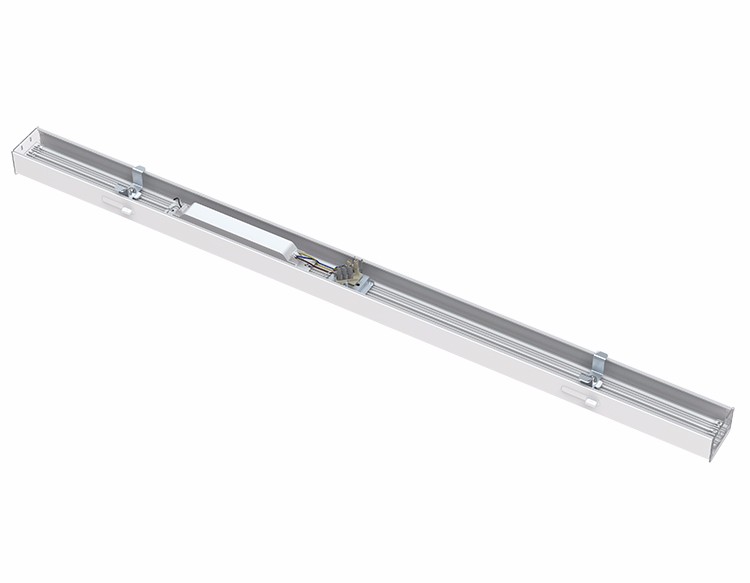

CE RoHS high quality 150lm/w linear rail systems, 1.2m 2.4m LED linear trucking system
Click on the image to view the original image
Product： views：5CE RoHS high quality 150lm/w linear rail systems, 1.2m 2.4m LED linear trucking system
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Warranty(Years):
5
Input Voltage(V):
AC 100-240V 50/60Hz
Lamp Power(W):
40
Lamp Luminous Efficiency(lm/w):
150
CRI (Ra>):
80
Working Temperature(℃):
-20 - +40
Working Lifetime(Hour):
50000
Lamp Body Material:
premium aluminum
IP Rating:
IP40
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
led linear light
Light Source:
LED
Model number:
SC-SL9070-040-AW-01W
CCT:
6000-6500K
Beam Angle:
90°
PF:
>0.95
Weight (Kg):
3.8
Length:
1200mm
Lamp material:
Aluminum al loy+PMM
Applications:
supermarkets,shopping mall,parking lot,warehouses...
Certificate:
CE RoHS
Product Name:
LED linear trucking system
Item Type:
Tube Lights
Lamp Luminous Flux(lm):
6000
Color Temperature(CCT):
Pure White
LED Light Source:
SMD 2835
Supply Ability
Supply Ability:
8500000 Piece/Pieces per Month we have stock for the LED linear trucking system
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Shenzhen and Hongkong
Lead Time:
Shipped in5- 15 days after payment

CE RoHS high quality 150lm/w linear rail systems, 1.2m 2.4m LED linear trucking system









9070 LED Linear Light SL

LED linear trucking system





Description  :

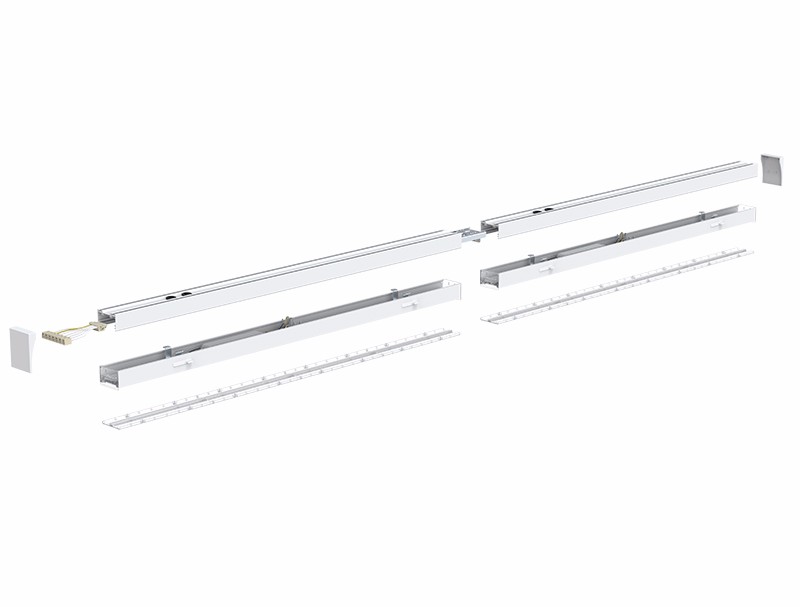

SL9070 is the latest new led trucking linear system, it is divied to 2 parts-the aluminum trucking rail and

the linear lighting module,easy to install and maintain. It is pre-mounted with 5/7 wires, with 3 phase and

4 wires electronical circuit design, can work at the continuous run 250m.It is widely used for supermarkets,

warehouses, workshops, fairs and so on.



Features:



Specifications:
ModelCCTLED TypeLumen(lm)
(±10%)		Power(W)
(±10%)		Length(mm)Voltage
(V)
SC-SL9070-040-AW-01W6000-6500K28356000 lm40W1200AC 100-240V
   50/60Hz
SC-SL9070-040-AW-01NW3800-4200K5720 lm40W1200
SC-SL9070-040-AW-01WW2800-3200K5440 lm40W1200
SC-SL9070-070-AW-01W6000-6500K283510500 lm70W2400AC 100-240V
   50/60Hz
SC-SL9070-070-AW-01NW3800-4200K10010 lm70W2400
SC-SL9070-070-AW-01WW2800-3200K9520 lm70W2400
Beam angleEnergy saving PF CRI IP Life spanLamp material
90°90%>0.95≥80IP4030000hrsAluminum alloy+PMM





 Application:

Commercial and industrial lighting places, for example: supermarkets,shopping mall,parking lot,warehouses,

workshops,fairs and so on.
