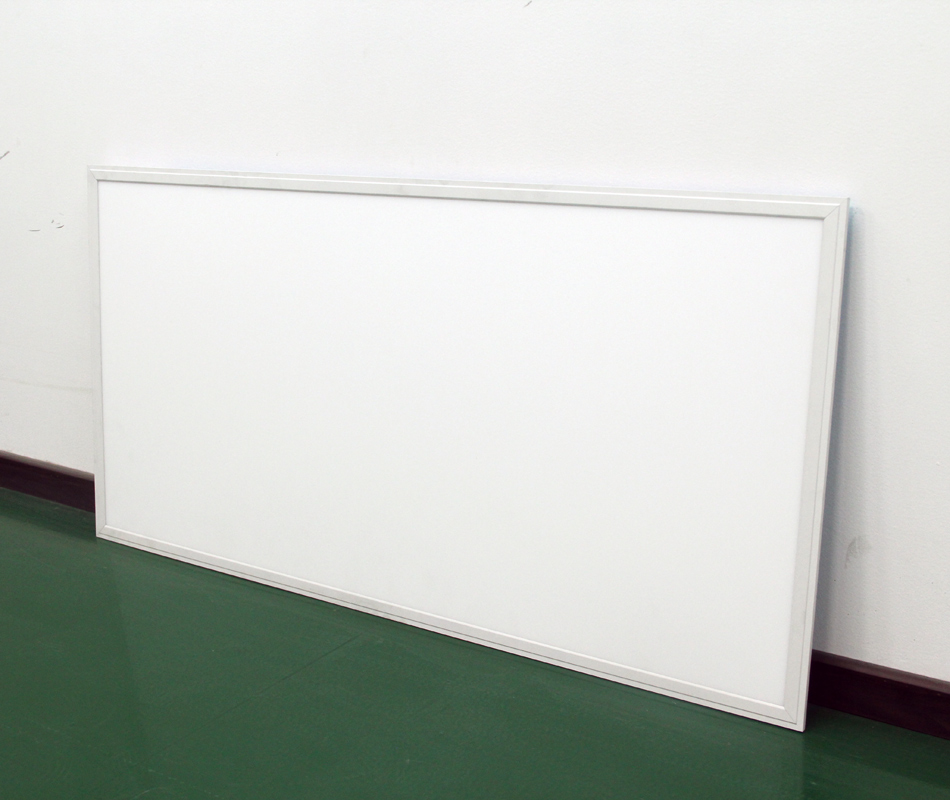

2x4 led panel light listed, led backlight panel 120x60

Click on the image to view the original image

Product：	views：42x4 led panel light listed, led backlight panel 120x60
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:39

Product Details

Overview

Quick Details

Input Voltage(V):: 100-277V

Lamp Luminous Flux(lm):: 3904

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP44

Certification:: CE, RoHS, UL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Light Source:: LED

CCT:: 5000-6500K

PF:: >0.9

Beamangle:: 110degree

Weight (Kg):: 7.68

Gross weight:: 9.78kg

Reflector:: milk color PMMA

Rated current:: 1.5A

Item:: Signcomplex 5years warranty 2835smd 55w 2x4 led panel light price

Item Type:: Panel Lights

Color Temperature(CCT):: Cool White

LED Light Source:: 2835

Warranty(Years):: 5

Lamp Luminous Efficiency(lm/w):: 90

Supply Ability

Supply Ability:: 500000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton
Packing size: 730X290X690mm (4pcs per box)

Port: Shezhen and Hongkong

Lead Time:: 5-15 days

Signcomplex 5years warranty 2835smd 55w 2x4 led panel light price

UL Certified LED Panel Light

SC-PSCAWCE6012-SC55W
SC-PSCAWNE6012-SC55W
SC-PSCAWWE6012-SC55W

Description of the led 2*4 feet panel:

LED Panel Light . Using Light Guide Plate, it has the feature of uniform and smooth l ight beam,
low glare rating, low l ight pol lution, and excel lent protection from eyestrain. It can be widely used as
interior lighting in shops, supermarkets, mal ls and hospitals, etc

Features of the led 2*4 feet panel:

Color: cool white, nature white, warm white, other available
Enclosure material: AI6063 + PMMA
Beam angle: 110°
Saving energy: 50%
Operating environment: dry location
Rated voltage/frequency: 100-277V AC 50/60Hz
LED Source: 2835 SMD LED
Reflector: milk color PMMA
Rated current: 1.5A
Rated power: 55W
Rated power factor: >0.9
Rated harmonic distortion: <20%
Rated luminous flux: 3904,3953,3482(lm)
Rated color temperature: 5000-6500K(CW)
Rated CRI: >80
Rated R9: >0
Rated life span: more than 50,000Hrs
3700-4500(NW), 2700-3200(WW)
Driving current of single LED: 60mA

No UV, no IR
Standard warranty: 5 years
Safety standard: RoHS, CE, UL

Specifications:

Model	CCT	LED Type	Lumen(lm) (±10%)	Power	CRI	PF	Voltage	Beam angle	Weight
SC-PSCAWCE6012-SC55W	5000-6500K	2835	3904lm	55W	>80	>0.9	AC100-277V 50-60Hz	110°	7.68Kg
SC-PSCAWNE6012-SC55W	3700-4500K	2835	3953lm	55W	>80	>0.9	AC100-277V 50-60Hz	110°	7.68Kg
SC-PSCAWWE6012-SC55W	2700-3200K	2835	3482lm	55W	>80	>0.9	AC100-277V 50-60Hz	110°	7.68Kg

Applications:

-Hotels
-Conference / Meeting rooms
-Factories & Offices
-Commercial Purposes.
-Residential / Institution Bui ldings
-Schools, Colleges & Universities
-Hospitals
-Places where energy saving and high color rendering index lighting are needed.
