- Type:
- Flex LED Strips
- Input Voltage(V):
- 12V/24V
- Lamp Power:
- 19.2W/M
- Lamp Luminous Flux(lm):
- 1700lumen/m
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 50
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- PVC
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Signcomplex
- Model Number:
- SC-IC-W4
- Light Source:
- LED
- Emitting Color:
- White
- Color Temperature(CCT):
- white
- LED Light Source:
- SMD3528
- IP rating:
- IP20(IP65 available)
- Current (Amps/m):
- 1.6/0.8
- Stand Length:
- 5m/roll
- LED Q'ty:
- 240pcs/m
- Beam Angle (degrees):
- 120
- Product Name:
- 3528smd led lighting strip profiles, IP20 IP65 4mm led strip 240 led/m
- Item Type:
- Light Strips
- Supply Ability:
- 9500000 Meter/Meters per Month we have stock for the smd led light strip
- Packaging Details
- package of the ultra bright led strip:
5m a roll. anti-static packing
- Port
- Shenzhen and Hongkong
3528smd led lighting strip profiles, IP20 IP65 4mm led strip 240 led/m
SC-IC
Great advantages:
Eco friendly
Long life span,standard warranty 3 years
Complete cut / connection accessories
No need of constant-current power feed
low power consumption
Custom packing
CCT can be adjusted, wider CCT range
Can display several changing patterns with a controller and remote
Specifications:
Model No. | Color | Length (m) | LED Q"ty | LED Type | Beam angle (drgees) | Light Output (lumen/m) | Voltage (V DC) | Current (Amps/m) | Max.Power consumption (w/m) | IP |
SC-IC-W4 | white | 5 | 1200 | 3528SMD LED | 120 | 1700 | 12v/24v | 1.6/0.8 | 19.2 | 20 |
SC-IC-WW4 | warm white | 5 | 1200 | 120 | 1580 | 12v/24v | 1.6/0.8 | 19.2 | 20 | |
SC-IC-NW4 | nature white | 5 | 1200 | 120 | 1620 | 12v/24v | 1.6/0.8 | 19.2 | 20 | |
SC-IC-R4 | red | 5 | 1200 | 120 | 600 | 12v/24v | 1.6/0.8 | 19.2 | 20 | |
SC-IC-G4 | green | 5 | 1200 | 120 | 880 | 12v/24v | 1.6/0.8 | 19.2 | 20 | |
SC-IC-B4 | blue | 5 | 1200 | 120 | 360 | 12v/24v | 1.6/0.8 | 19.2 | 20 | |
SC-IC-Y4 | yellow | 5 | 1200 | 120 | 680 | 12v/24v | 1.6/0.8 | 19.2 | 20 |
Model No. | Color | Length (m) | LED Q"ty | LED Type | Beam angle (drgees) | Light Output (lumen/m) | Voltage (V DC) | Current (Amps/m) | Max.Power consumption (w/m) | IP |
SC-IC-W | white | 5 | 300 | 3528SMD LED | 120 | 420 | 12v/24v | 0.4/0.2 | 4.8 | 20 |
SC-IC-WW | warm white | 5 | 300 | 120 | 390 | 12v/24v | 0.4/0.2 | 4.8 | 20 | |
SC-IC-NW | nature white | 5 | 300 | 120 | 400 | 12v/24v | 0.4/0.2 | 4.8 | 20 | |
SC-IC-R | red | 5 | 300 | 120 | 150 | 12v/24v | 0.4/0.2 | 4.8 | 20 | |
SC-IC-G | green | 5 | 300 | 120 | 220 | 12v/24v | 0.4/0.2 | 4.8 | 20 | |
SC-IC-B | blue | 5 | 300 | 120 | 90 | 12v/24v | 0.4/0.2 | 4.8 | 20 | |
SC-IC-Y | yellow | 5 | 300 | 120 | 170 | 12v/24v | 0.4/0.2 | 4.8 | 20 | |
SC-IC-W2 | white | 5 | 600 | 120 | 850 | 12v/24v | 0.8/0.4 | 9.6 | 20 | |
SC-IC-WW2 | warm white | 5 | 600 | 120 | 790 | 12v/24v | 0.8/0.4 | 9.6 | 20 | |
SC-IC-NW2 | nature white | 5 | 600 | 120 | 810 | 12v/24v | 0.8/0.4 | 9.6 | 20 | |
SC-IC-R2 | red | 5 | 600 | 120 | 300 | 12v/24v | 0.8/0.4 | 9.6 | 20 | |
SC-IC-G2 | green | 5 | 600 | 120 | 440 | 12v/24v | 0.8/0.4 | 9.6 | 20 | |
SC-IC-B2 | blue | 5 | 600 | 120 | 180 | 12v/24v | 0.8/0.4 | 9.6 | 20 | |
SC-IC-Y2 | yellow | 5 | 600 | 120 | 340 | 12v/24v | 0.8/0.4 | 9.6 | 20 | |

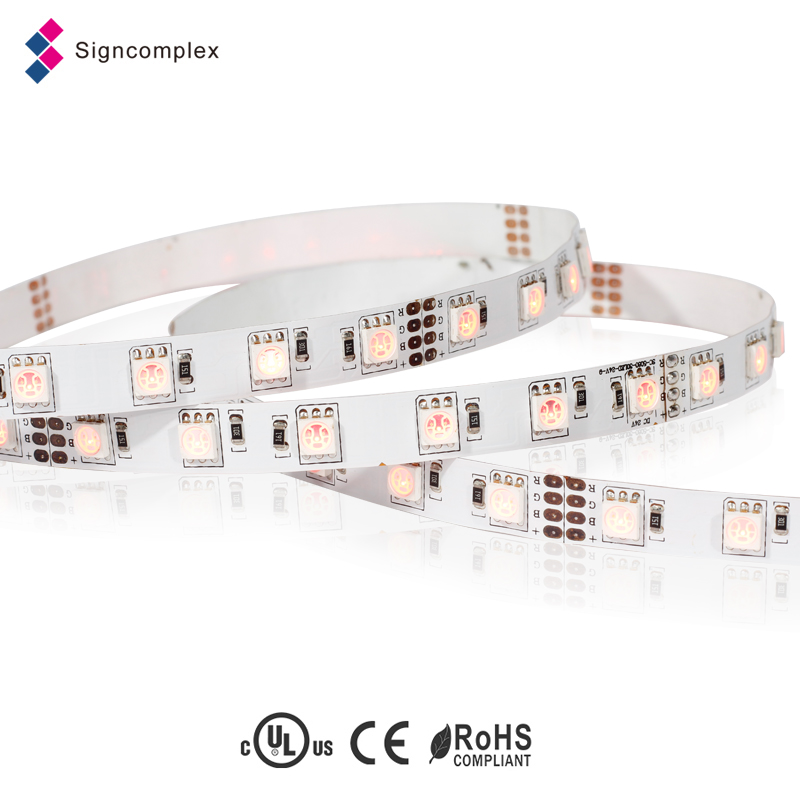

SC-IC-RGB | RGB | 5 | 150 | 5050SMD LED | 120 | 250 | 12v/24v | 0.6/0.3 | 7.2 | 20 |
SC-IC-RGB2 | RGB | 5 | 300 | 120 | 500 | 12v/24v | 1.2/0.6 | 14.4 | 20 |
We have variety of LED Strip:3528/5050/3014 /3020/5730/2835 led strip,IP20/IP65/IP68/IP67 led strip,Neon Flex,Normal brightness/High brightness/Super brightness/High CRI /Hybrid//Unique led strip,Rigid led strip...
Packing information:
Applications:
Cove lighting
Architectural lights for canopy,corridor,windoe,archway
Backlight or edge lighting for signage
DIY lights for home use
Path and contour marking
Decorative lights for holiday,event,show,exhibition
