Home > Products > high efficiency 3014 12/24V led strip light 120 led, led strip 2700K with 3 years warranty

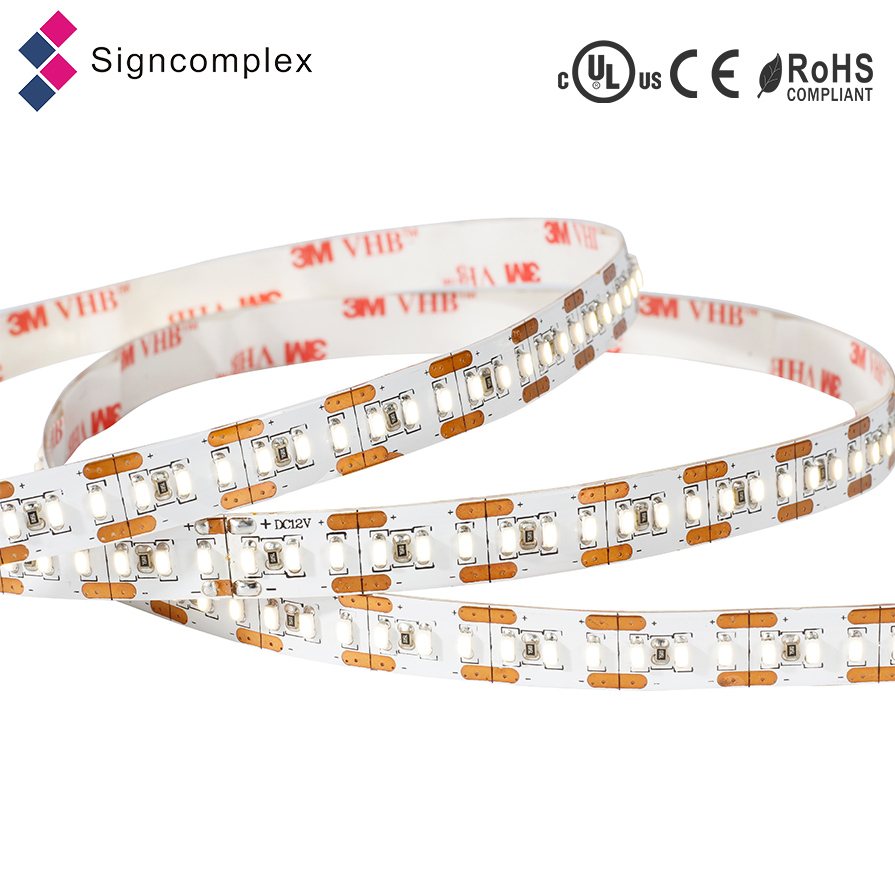

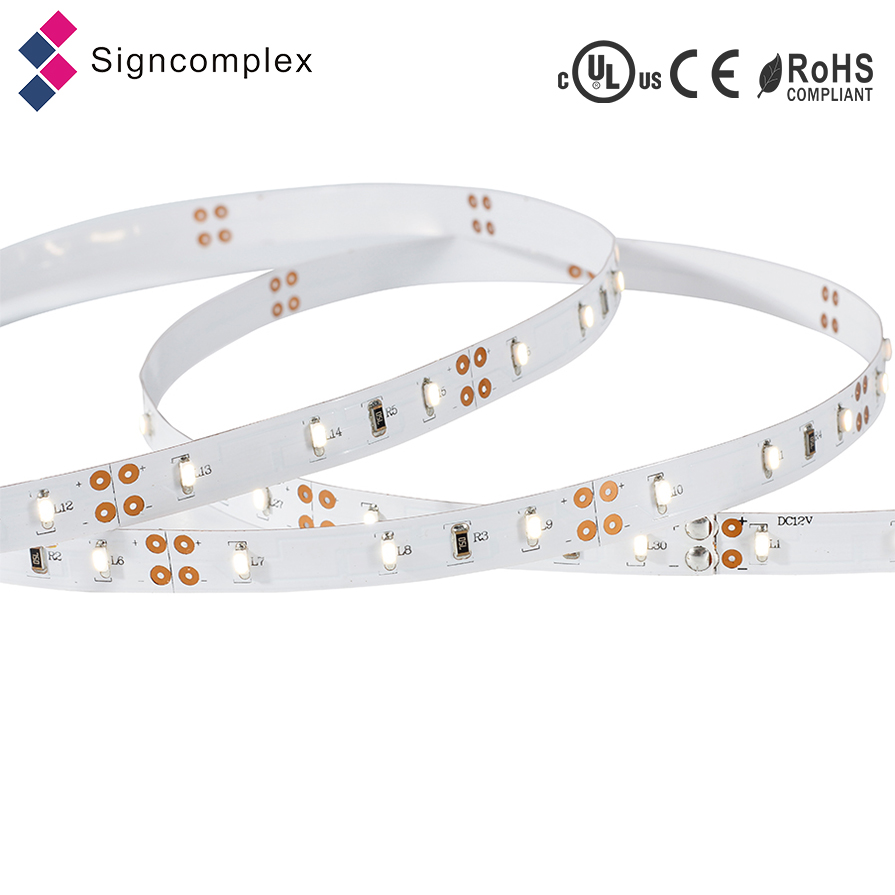

high efficiency 3014 12/24V led strip light 120 led, led strip 2700K with 3 years warranty
Click on the image to view the original image
Product: views:2high efficiency 3014 12/24V led strip light 120 led, led strip 2700K with 3 years warranty
Branch: Signcomplex
Type: Flex LED Strips
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
5.8w/m
Lamp Luminous Flux(lm):
810 lumen/m
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PVC
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-IE-PW
Light Source:
LED
Color Temperature(CCT):
5500-7000K
LED Light Source:
SMD3014
Max.Length (m):
10
Width (mm):
8
Min.Length (mm):
62.5
Current(Amps/m):
1.2
LED Qty. (pcs/m):
64
Rated watt (w/m):
5.8
Thickness:
1.6
IP Rating:
available for IP20,IP64,IP65,IP67
Item Type:
Light Strips
Supply Ability
Supply Ability:
80000000 Roll/Rolls per Month we have stock for the flexible led strip
Packaging & Delivery
Packaging Details
flexible strip with reel,Anti-static foil bag,Carton box
Port
Shenzhen and Hongkong

High Efficiency 3014 12/24V Led Strip Light 120 Led, Led Strip 2700K with 3 Years Warranty













Variety of led strips:

3528/5050/3014/3020/5730/2835 led strip,IP20/IP40/IP65/IP67/IP68 led strip,Neon Flex,Normal brightness/High brightness/Super brightness/High CRI/Hybrid brightness led strip,Unique led strip,Colorful / white led strips...



140lm/w 3014 high light efficiency
LED Strip
SC-IE/IE2/IE3-P





Features:
1.3014 LED
2.12/24V DC
3.140lm/w,white/natural white/warm white
4.64led/m,128led/m,192led/m,200led/m
5.IP20
6.MAX length:5m for IE,IE2,2.82m for IE3
7.TUV,CE,ROHS,3 years warranty



Technical parameters:

ModelCCTLuminous Flux
(lm/m)
Width
(mm)
Max.Length
(m)
Min.Length
(mm)
DC Voltage
(V)
LED Qty.
(pcs/m)
Rated watt
(w/m)
Thickness
SC-IE-PW5500-7000K81081062.512645.81.6
SC-IE-PNW4000-4500K800
SC-IE-PWW2700-3200K740
SC-IE2-PW5500-7000K1610101031.21212811.51.6
SC-IE2-PNW4000-4500K1590
SC-IE2-PWW2700-3200K1470
SC-IE3-PW5500-7000K2410105201220017.21.6
SC-IE3-PNW4000-4500K2370
SC-IE3-PWW2700-3200K2200
SC-IE-PW-245500-7000K81081062.524645.81.6
SC-IE-PNW-244000-4500K800
SC-IE-PWW-242700-3200K740
SC-IE2-PW-245500-7000K1610101031.22412811.51.6
SC-IE2-PNW-244000-4500K1590
SC-IE2-PWW-242700-3200K1470
SC-IE3-PW-245500-7000K2410105202419217.21.6
SC-IE3-PNW-244000-4500K2370
SC-IE3-PWW-242700-3200K2200







Application:
Advertising billboard,backlit decoration,architecture,bar,dance hall,wine cabinet,floor,ceiling,etc.



 Warehouse:



convenient to purchase ,we set up a warehouse in the United State,customers can buy led strip,led tube ,led panel light,led corn lamp,led controller...
USA warehouse address: 6465 N.Avondale Ave. Chicago, IL 60631. USA





Contact us

Request pirce? a sample? or custom order?

Contact us now for more discount!



Company Information



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- Panel light
- Linear light

- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack / Shoebox / Canopy light / Tri-proof light
- Corn bulb

- LED tube

- Emergency light  (Exit Sign / Emergency Downlight / Camping Light)

- LED Controller



2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.



3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.



4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.



5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.



6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.



7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.



8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.



9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
