medium power 20w 40w 50w led emergency tube light with built-in power supply
Emergency Medium Power Tri-proof Light with Built-in Power Supply
TP-020/040/050-B-05
Description:
Tri-proof light is usually used in environment which require water-proof,dust-proof,corrosion-proof lighting,such as shopping mall,warehouse and other indoor places.The lamp features smooth surface,no dust deposition,so it can be ceiling mounted or suspending mounted.The light is equipped with emergency power supply,when power outage,it can continuously work 3 hours with 30% brightness,charging time≤24 houus,suitable for places which need emergency lighting.
Features:
1.Water-proof design without adhesive ,so there is no water leakage caused by adhesive aging,convenient to disassemble;
2.Energy-saving and eco-friendly,no UV,no IR,or mercury,RoHS compliant;
3.Aluminum profile+PC,high shatterproof performance,good waterproof performance and anti-aging performance;
4.PC cover with high light transmittance+low power LEDs,uniform luminous surface,no dark spot;
5.High efficient cooling design,LEDs and power supply work in low temperature,high stability in continuous working;
6.Can on/off frequently,no flicker or glare;good color rendering performance;
7.Compact appearance,novel design,easy to install and transport.
Technical parameters:
| Model | CCT | Lumen(lm) (±10%) | LED Type Quantity | CRI | Power(w) (±10%) | Voltage, Frequency, Current | PF |
| TP-020-AW-W-B-05 | 5500-6500K | 1620 | 2835 144pcs | ≥80 | 20 | AC100-240V 50/60Hz, 0.3A | ≥0.9 |
| TP-020-AW-NW-B-05 | 4000-4500K | 1600 | ≥80 | ||||
| TP-020-AW-WW-B-05 | 2700-3200K | 1570 | ≥80 | ||||
| TP-040-AW-W-B-05 | 5500-6500K | 3240 | 2835 336pcs | ≥80 | 40 | AC100-240V 50/60Hz, 0.5A | ≥0.9 |
| TP-040-AW-NW-B-05 | 4000-4500K | 3200 | ≥80 | ||||
| TP-040-AW-WW-B-05 | 2700-3200K | 3140 | ≥80 | ||||
| TP-050-AW-W-B-05 | 5500-6500K | 4850 | 2835 416pcs | ≥80 | 50 | AC100-240V 50/60Hz, 0.6A | ≥0.9 |
| TP-050-AW-NW-B-05 | 4000-4500K | 4770 | ≥80 | ||||
| TP-050-AW-WW-B-05 | 2700-3200K | 4650 | ≥80 |
Application:

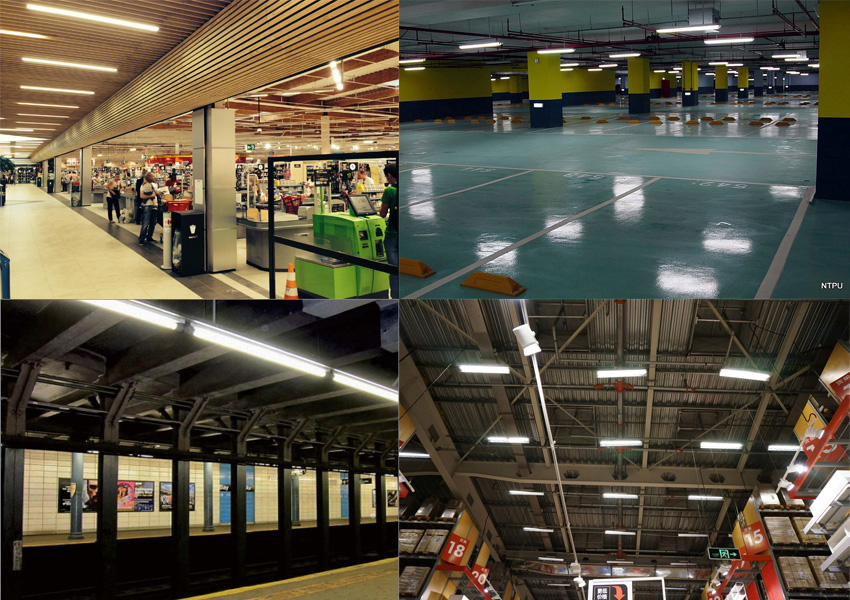

Suitable for warehouse,parking lot,shopping mall ,farm,factory,cold storage,subway,underground passage,etc.
Dimensions(Unit:mm/inch):
Package:

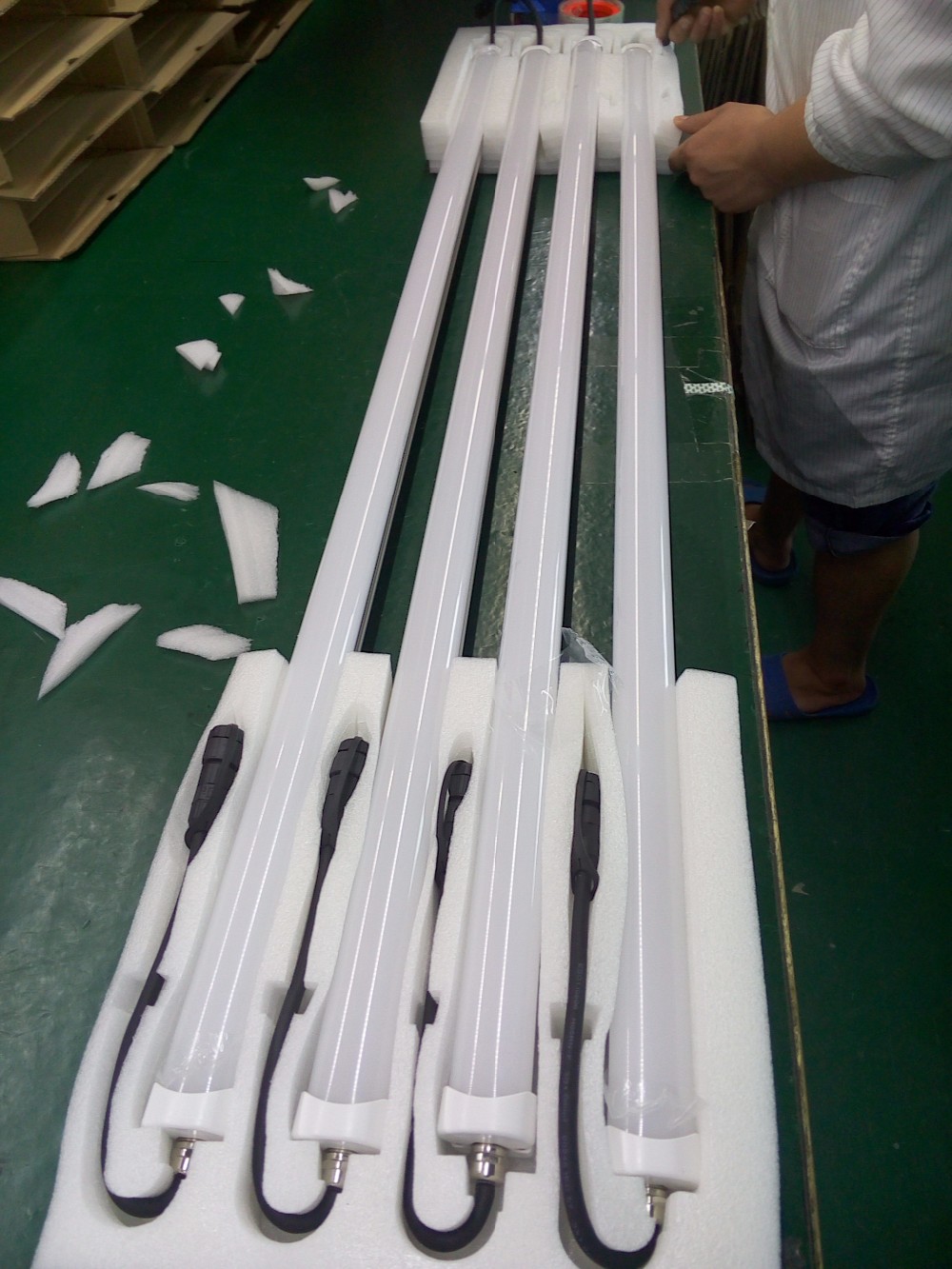

Production line:
Warehouse:
1) What are the best selling products in Signcomplex?
- tube
- panel lights
- LED strips
- spot and bulb
- controllers
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
Pleaese email for details!
