excellent cooling performance 2016 tri-proof led medium, IP65 modern led tri-proof light

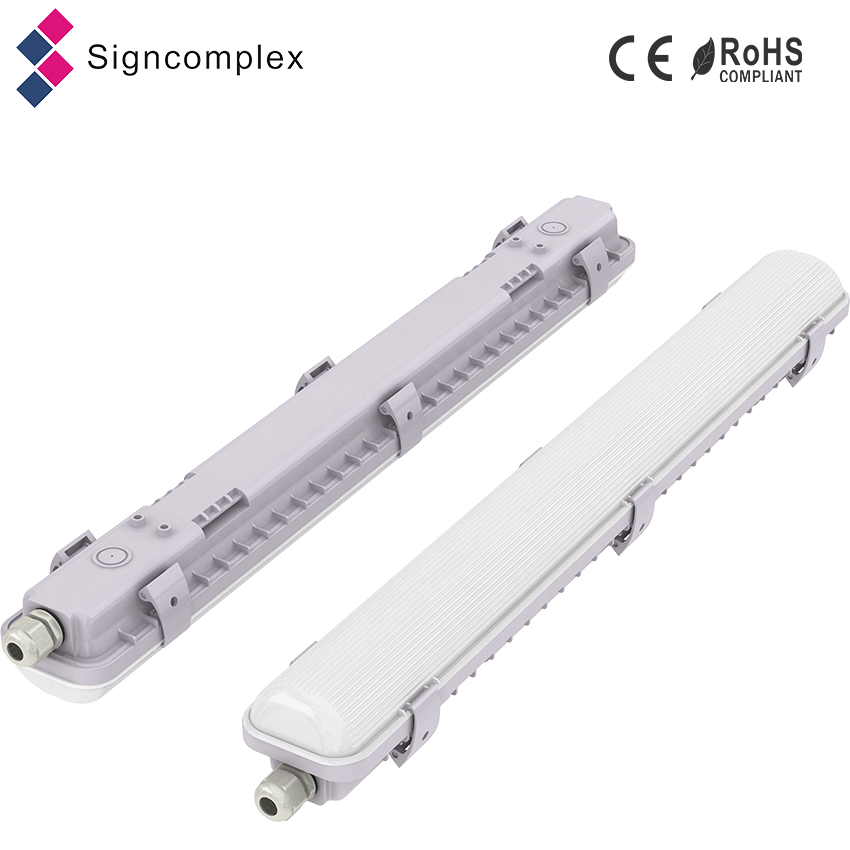

Tri-proof LED Lamp
TP-020/040/050-AW-A2-01/02
Description:
Tri-proof light is usually used in environment which require water-proof ,dust-proof,slight-corrosion-proof lighting,and it is widely used in shopping mall,warehouse and other indoor places.Tri-proof light of medium power can be ceiling mounted or suspending installed.Adopt PC as the material which ensure that it can work stably in different environment.White appearance.Lifespan:36,000 hours.Operating environment:-20℃-35℃,CE/RoHS compliant.
Features
1.Opal and wave cover optional;
2.High impact resistance PC cover,IK08
3.High transmittance PC cover transmit soft light,high light efficiency,uniform light;no dark spot;
4.High efficient heat dissipation,LEDs and power supply low temperature rise,high stability of continuous working;
5.Can switch start frequently,no flicker;
6.Compact appearance,novel design style,easy to install and transport;
7.Plastic shell features light weight,suitable for ceiling and suspendent installation;
8.Power supply shell adopt metal,excellent thermal management performance;
9.The power supply is fixed at bottom shell via adapter plate,which is separated from lamp panel,better cooling effect;
10.Add loop wire on DC,simple;add pressing wire plate on AC,resistant to pull,better cooling effect;
11.Mild anti-corrosion,dust-proof and water-proof;
12.Metal buckle or plastic buckle optional.
Technical parameters:
| Cover | Model | CCT | Lumen(lm) (±10%) | CRI | Beam angle | Power(w) (±10%) | LED Type Quantity | Voltage Frequency, Current | PF | Corrosion-proof Grade |
| Opal cover | FTN-TP-020-AW-W-A2-01 | 5500-6500K | 2010 | ≥80 | 120° | 20 | 2835 120pcs | AC220-240V 50/60Hz 0.12A | ≥0.9 | W |
| FTN-TP-020-AW-NW-A2-01 | 4000-4500K | 1990 | ≥80 | 120° | 20 | |||||
| FTN-TP-020-AW-WW-A2-01 | 2700-3200K | 1900 | ≥80 | 120° | 20 | |||||
| Wave cover | FTN-TP-020-AW-W-A2-02 | 5500-6500K | 2210 | ≥80 | 120° | 20 | ||||
| FTN-TP-020-AW-NW-A2-02 | 4000-4500K | 2180 | ≥80 | 120° | 20 | |||||
| FTN-TP-020-AW-WW-A2-02 | 2700-3200K | 2080 | ≥80 | 120° | 20 | |||||
| Opal cover | FTN-TP-040-AW-W-A2-01 | 5500-6500K | 3940 | ≥80 | 120° | 40 | 2835 240pcs | AC220-240V 50/60Hz 0.25A | ≥0.9 | W |
| FTN-TP-040-AW-NW-A2-01 | 4000-4500K | 3900 | ≥80 | 120° | 40 | |||||
| FTN-TP-040-AW-WW-A2-01 | 2700-3200K | 3850 | ≥80 | 120° | 40 | |||||
| Wave cover | FTN-TP-040-AW-W-A2-02 | 5500-6500K | 4330 | ≥80 | 120° | 40 | ||||
| FTN-TP-040-AW-NW-A2-02 | 4000-4500K | 4290 | ≥80 | 120° | 40 | |||||
| FTN-TP-040-AW-WW-A2-02 | 2700-3200K | 4280 | ≥80 | 120° | 40 | |||||
| Opal cover | FTN-TP-050-AW-W-A2-01 | 5500-6500K | 4570 | ≥80 | 120° | 50 | 2835 288pcs | AC220-240V 50/60Hz 0.3A | ≥0.9 | W |
| FTN-TP-050-AW-NW-A2-01 | 4000-4500K | 4520 | ≥80 | 120° | 50 | |||||
| FTN-TP-050-AW-WW-A2-01 | 2700-3200K | 4430 | ≥80 | 120° | 50 | |||||
| Wave cover | FTN-TP-050-AW-W-A2-02 | 5500-6500K | 5020 | ≥80 | 120° | 50 | ||||
| FTN-TP-050-AW-NW-A2-02 | 4000-4500K | 4970 | ≥80 | 120° | 50 | |||||
| FTN-TP-050-AW-WW-A2-02 | 2700-3200K | 4870 | ≥80 | 120° | 50 |
Main applications:
Tri-proof light of medium power can be used in warehouse,parking lot,shopping mall,farm,food factory,cold storage,metro,underground passage and other places.
Package:
Production line:
Warehouse:
