Home > Products > IP20 12VDC 1.2Amps/M 300LED Qty 5050 SMD LED 14.4W/M RGB LED Flexible Strip Light
IP20 12VDC 1.2Amps/M 300LED Qty 5050 SMD LED 14.4W/M RGB LED Flexible Strip Light
Click on the image to view the original image
Product: views:3IP20 12VDC 1.2Amps/M 300LED Qty 5050 SMD LED 14.4W/M RGB LED Flexible Strip Light
Branch: Signcomplex
Type: Flex LED Strips
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
14.4W/M
Lamp Luminous Flux(lm):
2350
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PC
Certification:
CE, EMC, GS, LVD, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-IB-RGB2
Light Source:
LED
Color Temperature(CCT):
RGB
LED Light Source:
SMD5050
LED Quantity:
60LEDs/M
PCB Color:
White PCB
IP Rating:
IP20 (IP64-IP68)
FPC Width:
10mm
Lumen per meter:
470lm
Min cut:
25mm
Beam Angle:
120 degree
Length:
5 Meters/roll
Item Type:
Light Strips
Supply Ability
Supply Ability:
100000 Roll/Rolls per Month
Packaging & Delivery
Packaging Details
5m a roll, anti-static packing
Port
Shenzhen
Product Description

IP20 12VDC 1.2Amps/M 300LED Qty 5050 SMD LED 14.4W/M RGB LED Flexible Strip Light



Basic information:

LED chip:SMD 5050

LED Qty: 60LEDs/M, 300LEDs/5M

Watt:14.4W/M

Voltage:12/24V DC

Color: Warm White/Natural White/Cool White

Length:5M/Roll

Cutting is available

Min cut: 25mm/12V





Why Signcomplex  Flexible led strip:



1.       IP20 Non waterproof, IP64-IP68 Waterproof, IP68 can be used underwater.

2.       high flexible, the minium bend radius 25mm

3.       soft light effect ,uniform color light source can"t be seen

4.       High Brightness LED Chip

5.       each 25mm can be cut and can be connected via connectors

6.       Anti-UV, high anti-corrosion grade.

7.       TUV, CE, ROHS certificated, 3 years warranty.





Widely application :



Architecture contour ,advertising ,building,plaza floor,stair handrail , swimming pool, grass yard ,ect

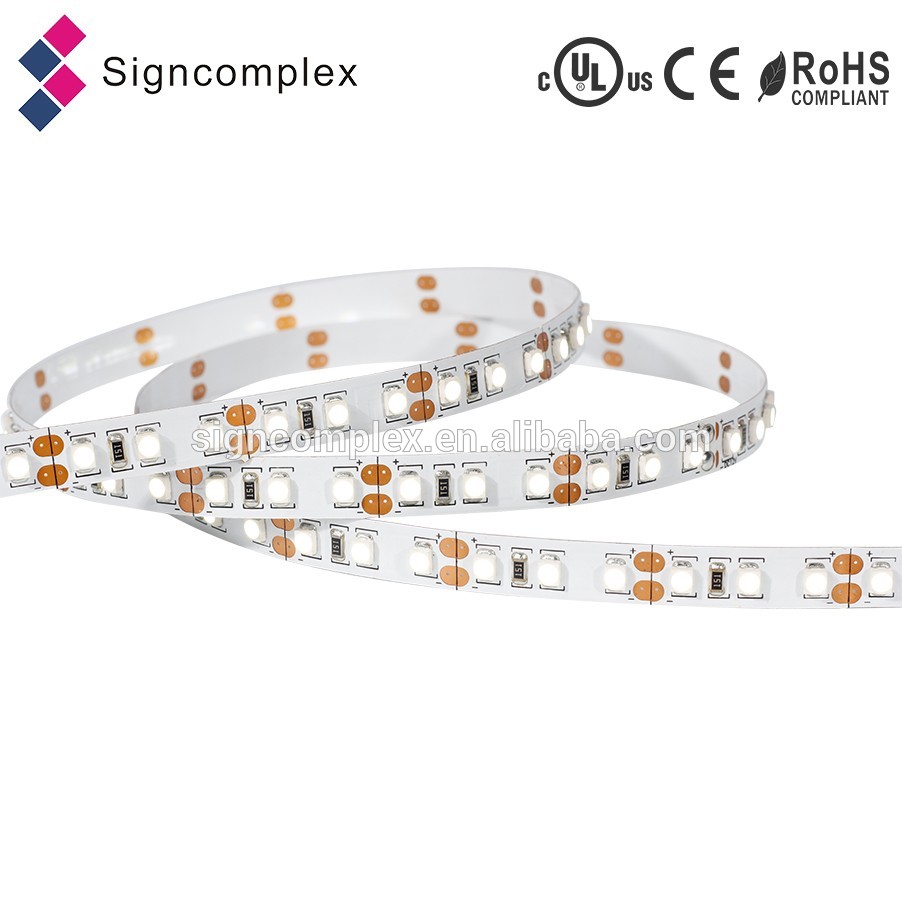

Product picture:



Production lines:



Product applications:











Company Information



About Signcomplex:



1. TUV ISO 9001:2015 certified company.

2. Focus on LED Lighting field for 10 years.

3. More than 600 employees, 50 R&D team, 110 sales team.

4. 3 buildings, over 25,000 square meters factory area.

5. TOP 10 led lighting suppliers in US since 2013.



Signcomplex Product Show room:









Factory scan, sales office:





Lighting Fair:



Signcomplex Equipment, R&D software, Certificates:
