led parking lot light, led 600mm light fixture innovative products

Click on the image to view the original image

Product：	views：4led parking lot light, led 600mm light fixture innovative products
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:39

Product Details

Overview

Quick Details

Warranty(Years):: 5

Input Voltage(V):: AC100-277V 50/60Hz

Lamp Luminous Efficiency(lm/w):: 130

CRI (Ra>):: 80

Working Temperature(℃):: -25 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP65

Certification:: CE, RoHS, UL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: led tri-proof light

Light Source:: LED

Model:: TP-020-AW-NW-B-S21/S22

Beam Angle (degrees):: 230

Color:: W/NW/WW

CCT:: 3800-4200K

LED Qty:: 144pcs

Item:: led 600mm light fixture

Keyword:: led 600mm light fixture

CRI:: >80

PF:: 0.9

Application:: warehouse, parking lot and other places.

Item Type:: Tube Lights

Color Temperature(CCT):: Neutral white

LED Light Source:: SMD2835

Lamp Luminous Flux(lm):: 1930

Supply Ability

Supply Ability:: 8000000 Piece/Pieces per Month simple is available for the led 600mm light fixture

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Yantian

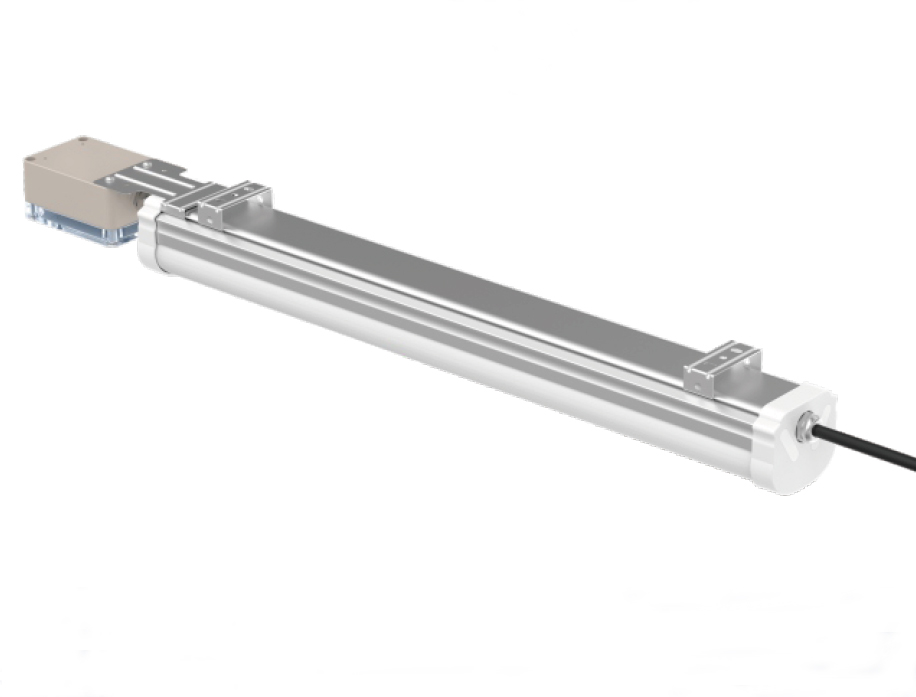

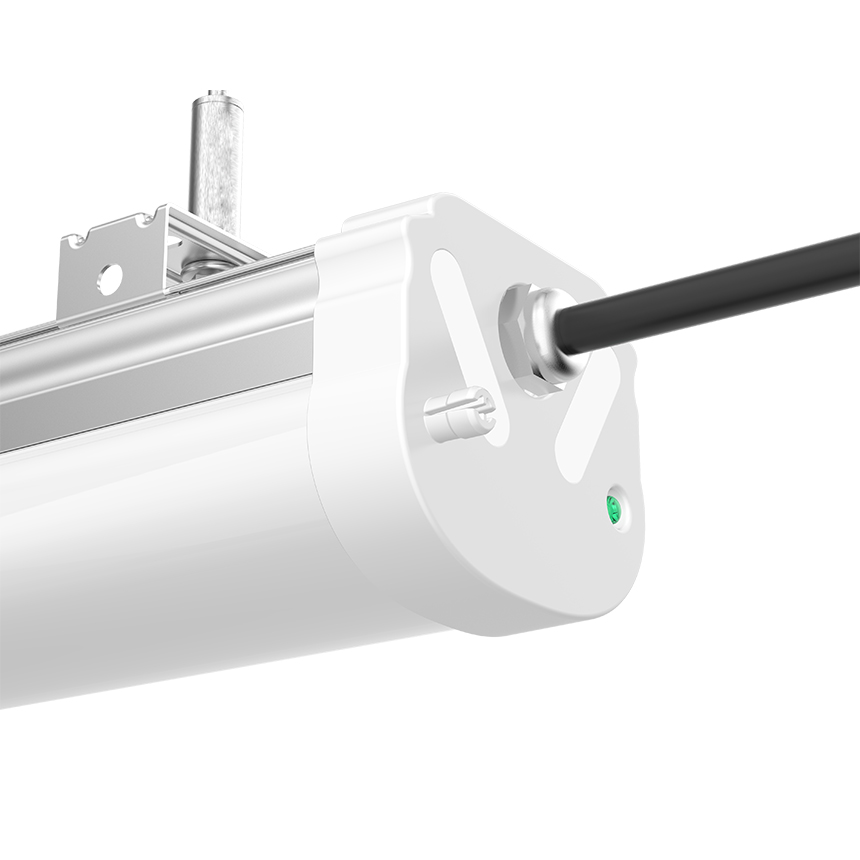

Tri-proof Lamp with RF Wireless Transceiver
and Motion Detector
TP-020/040/050-AW-W/NW/WW-B-S21/S22/S31/S32

Introduction
Tri-proof Lamp integrate wireless transceiver with frequency range 2.4GHz and motion detector with HF
system 5.8GHz. Due to use full digital receiving & transmitting and fixed address number for creation of groups,
it has high reliability and stability. Motion can be detected through plastic, glass and thin non-metal materials.

Features
1. Water-proof design without adhesive, so there is no water leakage caused by adhesive aging, convenient to disassemble;
2. Anti-UV cover, it’s ideal choice for outdoor use;
3. High impact resistance PC cover, IK10;
4. High transmittance PC cover transmit soft light, high light efficiency, uniform light;
5. Can switch start frequently, no flicker;
6. Built-in motion detector, easy to mount;
7. Use wireless networking, easy to installation and free of wire.

Technical parameters:

Model	CCT	Color	Lumen(lm) (±10%)	Beam angle	LED Type Quantity	Power(w) (±10%)	Voltage, Frequency	CRI	PF
TP-020-AW-W-B-S21/S22	4700-5300K	white	2020	230°	SMD2835 144pcs	20	AC100-277V 50/60Hz	>80	0.9
TP-020-AW-NW-B-S21/S22	3800-4200K	neutral white	1930
TP-020-AW-WW-B-S21/S22	2700-3200K	warm white	1850
TP-040-AW-W-B-S21/S22	4700-5300K	white	4040	230°	SMD2835 336pcs	40	AC100-277V 50/60Hz	>80	0.9
TP-040-AW-NW-B-S21/S22	3800-4200K	neutral white	3860
TP-040-AW-WW-B-S21/S22	2700-3200K	warm white	3830
TP-050-AW-W-B-S21/S22	4700-5300K	white	4740	230°	SMD2835 384pcs	50	AC100-277V 50/60Hz	>80	0.9
TP-050-AW-NW-B-S21/S22	3800-4200K	neutral white	4370
TP-050-AW-WW-B-S21/S22	2700-3200K	warm white	4270
TP-020-AW-W-B-S31/S32	5500-6500K	white	2020	230°	SMD2835 144pcs	20	AC100-240V 50/60Hz	>80	0.9
TP-020-AW-NW-B-S31/S32	4000-4500K	neutral white	1930
TP-020-AW-WW-B-S31/S32	2700-3200K	warm white	1850
TP-040-AW-W-B-S31/S32	5500-6500K	white	4040	230°	SMD2835 336pcs	40	AC100-240V 50/60Hz	>80	0.9
TP-040-AW-NW-B-S31/S32	4000-4500K	neutral white	3860
TP-040-AW-WW-B-S31/S32	2700-3200K	warm white	3830
TP-050-AW-W-B-S31/S32	5500-6500K	white	4740	230°	SMD2835 384pcs	50	AC100-240V 50/60Hz	>80	0.9
TP-050-AW-NW-B-S31/S32	4000-4500K	neutral white	4370
TP-050-AW-WW-B-S31/S32	2700-3200K	warm white	42
