546pcs Epistar SMD2835 30320lm LED High Bay Light 240W Ufo Led High Bay light with 5 years warranty
Click on the image to view the original image
Product： views：2546pcs Epistar SMD2835 30320lm LED High Bay Light 240W Ufo Led High Bay light with 5 years warranty
Type： UFO LED High Bay Light
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Product Name:
LED High Bay Lights
Power:
240W
Input Voltage:
AC100-277V
LED Chip:
Epistar SMD2835
Lighting Efficiency:
130LM/W
Luminous:
30320lm
Material:
Aluminum+tempered Glass
LED Driver:
Meanwell HBG
Beam Angle:
120 degree
Warranty:
5 years
Type:
UFO LED High Bay Light
Certification:
CE ROHS
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
inner box and outer carton box
Inner box dimension: 390*390*210mm (1pcs)
Outer carton dimension:405*405*650(3pcs)
Port
Shenzhen
Product Description

546pcs Epistar SMD2835 30320lm LED High Bay Light 240W Ufo Led High Bay light with 5 years warranty





Advantages:

  • Completely unique, novel, fashion and slim design, much more beautiful appearance, very popular in the market.
  • No lampshade, easy and convenient to package, transportation and installation, save freight cost and mounting cost.
  • Suspending installation with strong rings, wall mounted and ceiling mounted with thickness bracket, to meet various lighting atmosphere.
  • Adopted structure waterproof design, waterproof grade is IP65, instead of IP54.
  • High lighting efficiency 130LM/W SMD2835, CRI>80, UGR<25.
  • Meanwell HBG Led driver, 5 years warranty.



 Parameters:



Model No.CB2-100-AW-W-01CB2-150-AW-W-01CB2-200-AW-W-01CB2-240-AW-W-01
Power100W150W200W240W
Input VoltageAC100-277V
Frequency50-60Hz
Efficiency130lm/w
IP GradeIP65
Luminous11370-12580lm17030-18820lm22800-25320lm28070-30320lm
LED Qty210pcs336pcs420pcs546pcs
MaterialAluminum+Tempered cover
Beam Angle120 degree
Dimmable&Sensor0-10V Dimmable, Wavesensor
Warranty5 years
CertificateCE ROHS are pending

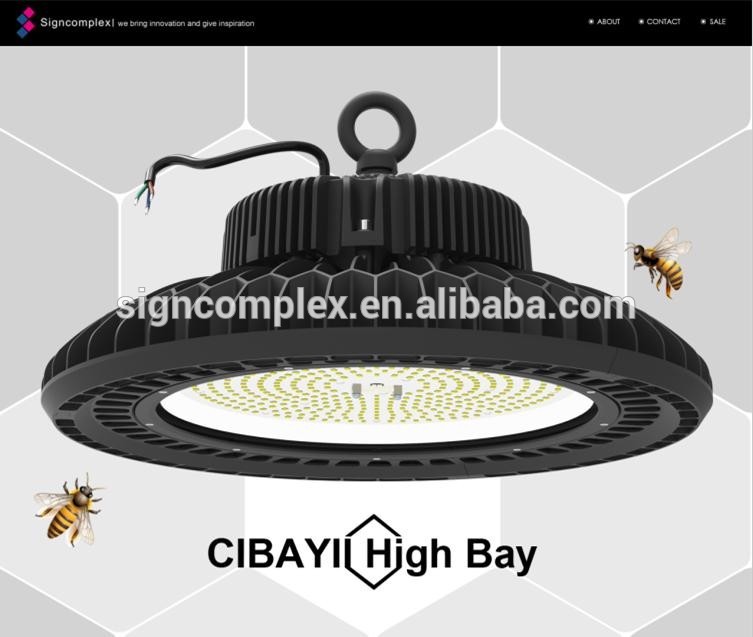

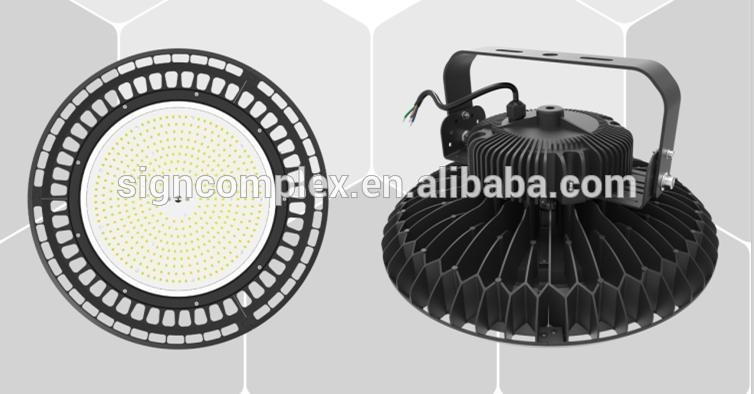

 Pictures:

Dimensions:



Installation ways:



Applications:
