Water-proof Dust-proof Slight Corrosion-proof 20w 40w 50w Medium Tri-proof LED Lamp

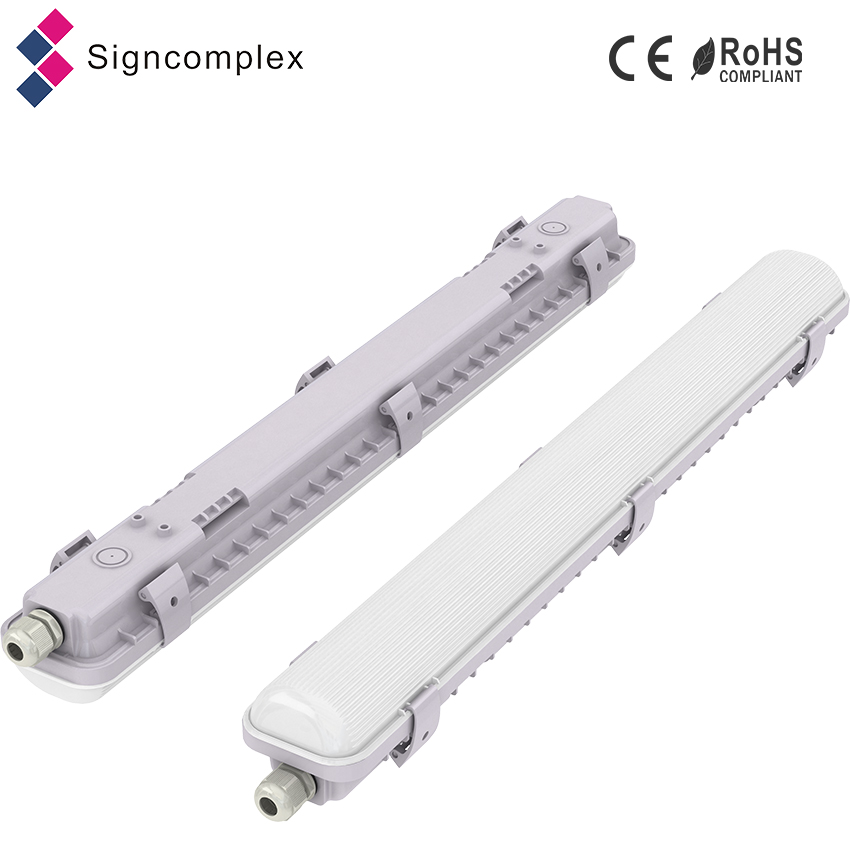

Tri-proof LED Lamp
TP-020/040/050-AW-A2-01/02
Description:

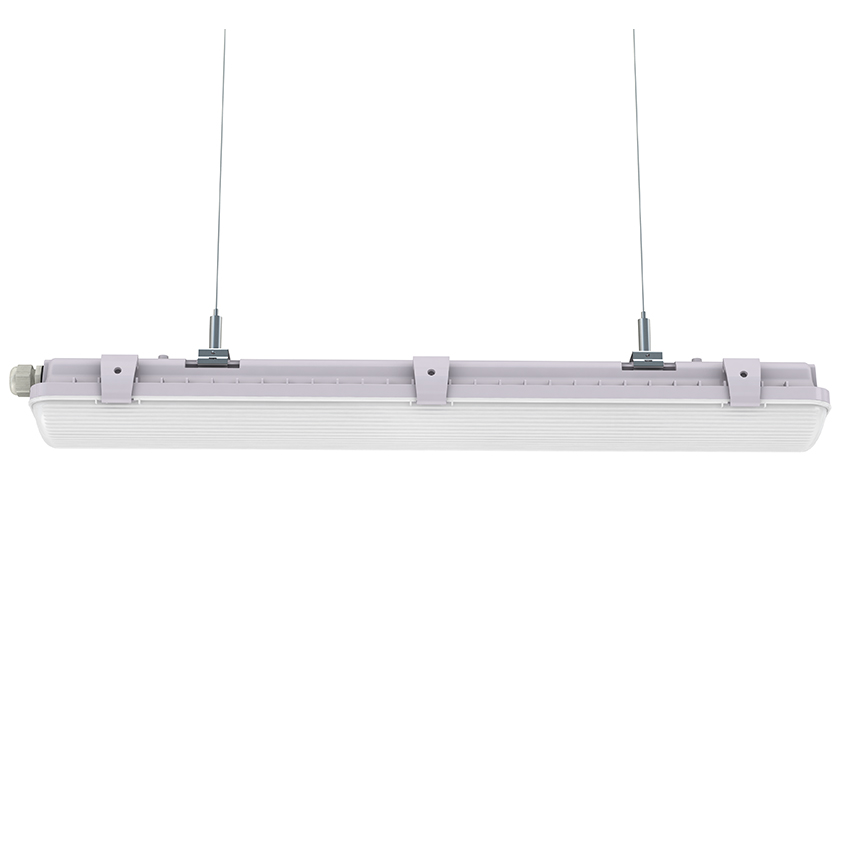

Tri-proof light is usually used in environment which require water-proof ,dust-proof,slight-corrosion-proof lighting,and it is widely used in shopping mall,warehouse and other indoor places.Tri-proof light of medium power can be ceiling mounted or suspending installed.Adopt PC as the material which ensure that it can work stably in different environment.White appearance.Lifespan:36,000 hours.Operating environment:-20℃-35℃,CE/RoHS compliant.
Features
1.Opal and wave cover optional;
2.High impact resistance PC cover,IK08
3.High transmittance PC cover transmit soft light,high light efficiency,uniform light;no dark spot;
4.High efficient heat dissipation,LEDs and power supply low temperature rise,high stability of continuous working;
5.Can switch start frequently,no flicker;
6.Compact appearance,novel design style,easy to install and transport;
7.Plastic shell features light weight,suitable for ceiling and suspendent installation;
8.Power supply shell adopt metal,excellent thermal management performance;
9.The power supply is fixed at bottom shell via adapter plate,which is separated from lamp panel,better cooling effect;
10.Add loop wire on DC,simple;add pressing wire plate on AC,resistant to pull,better cooling effect;
11.Mild anti-corrosion,dust-proof and water-proof;
12.Metal buckle or plastic buckle optional.
Technical parameters:
| Cover | Model | CCT | Lumen(lm) (±10%) | CRI | Beam angle | Power(w) (±10%) | LED Type Quantity | Voltage Frequency, Current | PF | Corrosion-proof Grade |
| Opal cover | FTN-TP-020-AW-W-A2-01 | 5500-6500K | 2010 | ≥80 | 120° | 20 | 2835 120pcs | AC220-240V 50/60Hz 0.12A | ≥0.9 | W |
| FTN-TP-020-AW-NW-A2-01 | 4000-4500K | 1990 | ≥80 | 120° | 20 | |||||
| FTN-TP-020-AW-WW-A2-01 | 2700-3200K | 1900 | ≥80 | 120° | 20 | |||||
| Wave cover | FTN-TP-020-AW-W-A2-02 | 5500-6500K | 2210 | ≥80 | 120° | 20 | ||||
| FTN-TP-020-AW-NW-A2-02 | 4000-4500K | 2180 | ≥80 | 120° | 20 | |||||
| FTN-TP-020-AW-WW-A2-02 | 2700-3200K | 2080 | ≥80 | 120° | 20 | |||||
| Opal cover | FTN-TP-040-AW-W-A2-01 | 5500-6500K | 3940 | ≥80 | 120° | 40 | 2835 240pcs | AC220-240V 50/60Hz 0.25A | ≥0.9 | W |
| FTN-TP-040-AW-NW-A2-01 | 4000-4500K | 3900 | ≥80 | 120° | 40 | |||||
| FTN-TP-040-AW-WW-A2-01 | 2700-3200K | 3850 | ≥80 | 120° | 40 | |||||
| Wave cover | FTN-TP-040-AW-W-A2-02 | 5500-6500K | 4330 | ≥80 | 120° | 40 | ||||
| FTN-TP-040-AW-NW-A2-02 | 4000-4500K | 4290 | ≥80 | 120° | 40 | |||||
| FTN-TP-040-AW-WW-A2-02 | 2700-3200K | 4280 | ≥80 | 120° | 40 | |||||
| Opal cover | FTN-TP-050-AW-W-A2-01 | 5500-6500K | 4570 | ≥80 | 120° | 50 | 2835 288pcs | AC220-240V 50/60Hz 0.3A | ≥0.9 | W |
| FTN-TP-050-AW-NW-A2-01 | 4000-4500K | 4520 | ≥80 | 120° | 50 | |||||
| FTN-TP-050-AW-WW-A2-01 | 2700-3200K | 4430 | ≥80 | 120° | 50 | |||||
| Wave cover | FTN-TP-050-AW-W-A2-02 | 5500-6500K | 5020 | ≥80 | 120° | 50 | ||||
| FTN-TP-050-AW-NW-A2-02 | 4000-4500K | 4970 | ≥80 | 120° | 50 | |||||
| FTN-TP-050-AW-WW-A2-02 | 2700-3200K | 4870 | ≥80 | 120° | 50 |
Main applications:
Tri-proof light of medium power can be used in warehouse,parking lot,shopping mall,farm,food factory,cold storage,metro,underground passage and other places.
Production line:
1) What are the best selling products in Signcomplex?
- LED strip
- panel lights
- linear light
- high bay
- corn bulb
- tube
-LED controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
