3 years warranty Aluminum housing Epistar Chip 6inch 8 inch 30W COB LED Downlight
Click on the image to view the original image
Product： views：23 years warranty Aluminum housing Epistar Chip 6inch 8 inch 30W COB LED Downlight
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-240V
Lamp Luminous Flux(lm):
2700
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP44
Certification:
CE, EMC, LVD, RoHS, UL
Model Number:
QDL6-030-AW-WW
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Cutout:
150mm
Beam angle:
60 Degree
Cover:
Tempered glass
PF:
0.9
SDCM:
<5
Power:
30W (15W 18W 25W 30W )
Size:
Dia177mm *cuthole150H*86mm
Product name:
LED Recessed Downlight
LED Chip:
Epistar COB Led Chip
Dimmable:
0-10V/Traic/Dali/wireless
Item Type:
Downlights
Warranty(Years):
3
CRI (Ra>):
80
Color Temperature(CCT):
Warm White
Working Temperature(℃):
-20 - +35
Lamp Power(W):
30
LED Light Source:
COB
Lamp Luminous Efficiency(lm/w):
100
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common industrial packaging
Port
shenzhen
Lead Time:
5 days after payment
Specification
Lamp Parameter
Power
30W
Input voltage
AC100-240V
Led Chip
1pcs COB
Luminous
2700LM
installation
embedded
CCT
3000K
Hole diameter
150MM
Warranty
3 years
Product Description

Lamp materials

Signcomplex Dolux COB led downlight is designed by our own R&D team, adopt aluminum for the lamp body, stainless rings, led driver with driver box, ensure excellent heat dissipation for both driver and led.

LED and reflective cup


Epistar COB chip, pure reflective cup, and tempered clear glass. It represent beautiful, elegant decoration for office, hotel, supermarket, home, restaurant, shop, store, school, etc.


Model
QDL-018-AW-W
QDL-025-AW-W
QDL-030-AW-W
LED Light Source
Epistar COB
                 Epistar COB
   Epistar COB
Bulb Watt
18W
25W
30W
Input Voltage
AC100-240V
                AC100-240V
               AC100-240V
Installation Process
Applications
Certifications

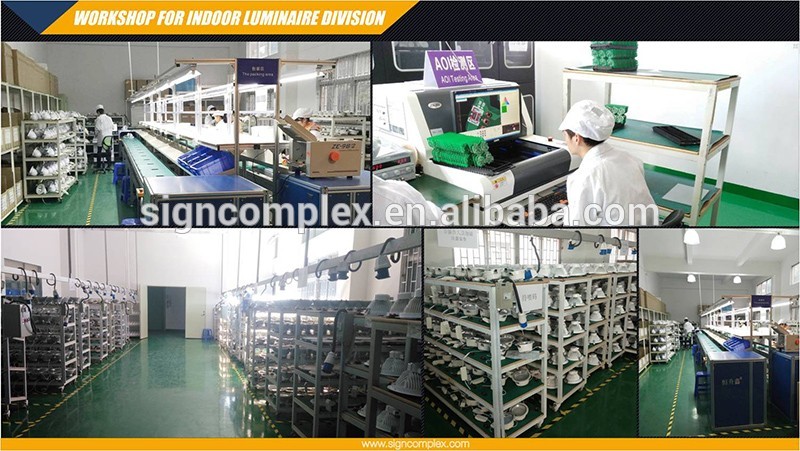

Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 5-7 days, mass production time needs 2-3 weeks for order quantity more than 3000pcs.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
