Home > Products > AC100-277V No Lampshade 50% Freight cost saving Round Shape LED High Bay Light 150 Watt for warehouse lighting

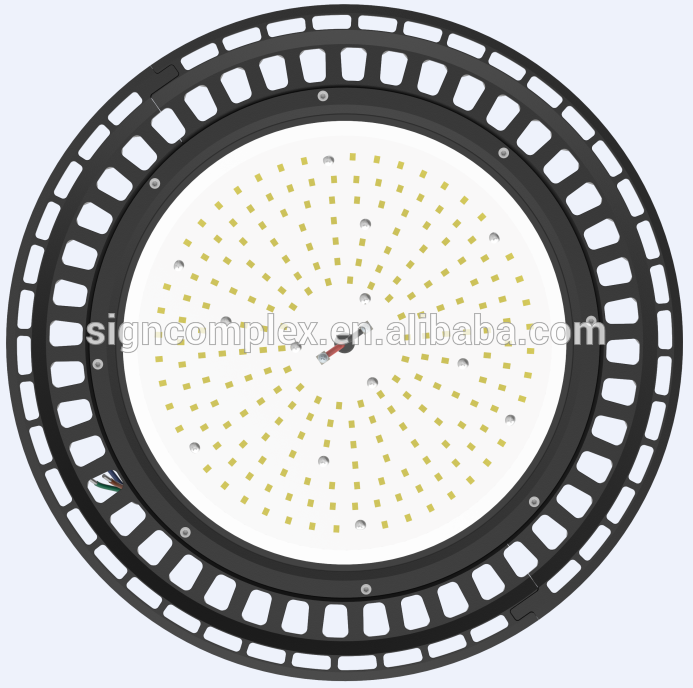

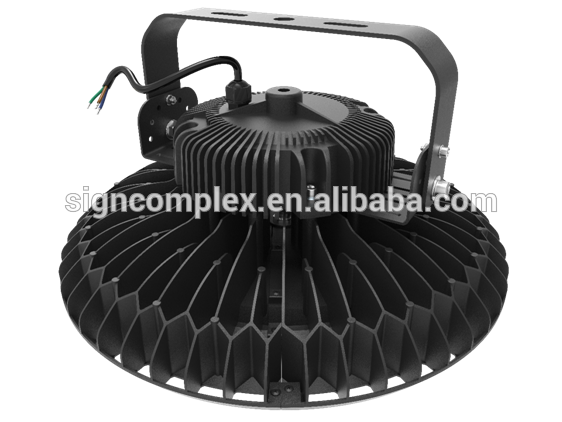

AC100-277V No Lampshade 50% Freight cost saving Round Shape LED High Bay Light 150 Watt for warehouse lighting
Click on the image to view the original image
Product： views：7AC100-277V No Lampshade 50% Freight cost saving Round Shape LED High Bay Light 150 Watt for warehouse lighting
Type： UFO LED High Bay Light
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:39
  Negotiated
Product Details
Overview
Quick Details
Product Name:
LED High Bay Lights
Power:
150W
IP Grade:
IP65
Input Voltage:
AC100-277V
LED Chip:
Epistar SMD2835
Lighting Efficiency:
130LM/W
Material:
Aluminum+tempered Glass
LED Driver:
Meanwell HBG
Beam Angle:
120 degree
Warranty:
5 years
Type:
UFO LED High Bay Light
Certification:
CE ROHS
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
inner box and outer carton box
Inner box dimension: 390*390*210mm (1pcs)
Outer carton dimension:405*405*650(3pcs)
Port
Shenzhen
Lead Time:
Shipped within 15 days after payment
Product Description
AC100-277V No Lampshade 50% Freight cost saving Round Shape LED High Bay Light 150 Watt for warehouse lighting

Features:
1. Completely unique, novel, fashion and slim design, much more beautiful appearance, very popular in the market.

2. No lampshade, easy and convenient to package, transportation and installation, save freight cost and mounting cost.
3. Suspending installation with strong rings, wall mounted and ceiling mounted with thickness bracket, to meet various lighting atmosphere.
4.Adopted structure waterproof design, waterproof grade is IP65, instead of IP54.
5.High lighting efficiency 130LM/W SMD2835, CRI>80, UGR<25.
6. Meanwell HBG Led driver, 5 years warranty.



 Parameters:



Model No.    CB2-100-AW-W-01   CB2-150-AW-W-01 CB2-200-AW-W-01CB2-240-AW-W-01
Power   100W150W200W240W
Input VoltageAC100-277V
Frequency50-60Hz
Efficiency130lm/w
Luminous11370-12580lm17030-18820lm22800-25320lm28070-30320lm
LED Qty210pcs336pcs420pcs546pcs
MaterialAluminum+Tempered cover
Beam Angle120 degree
Dimmable&Sensor0-10V Dimmable, Wavesensor
Warranty5 years







Installation ways:



Applications:
