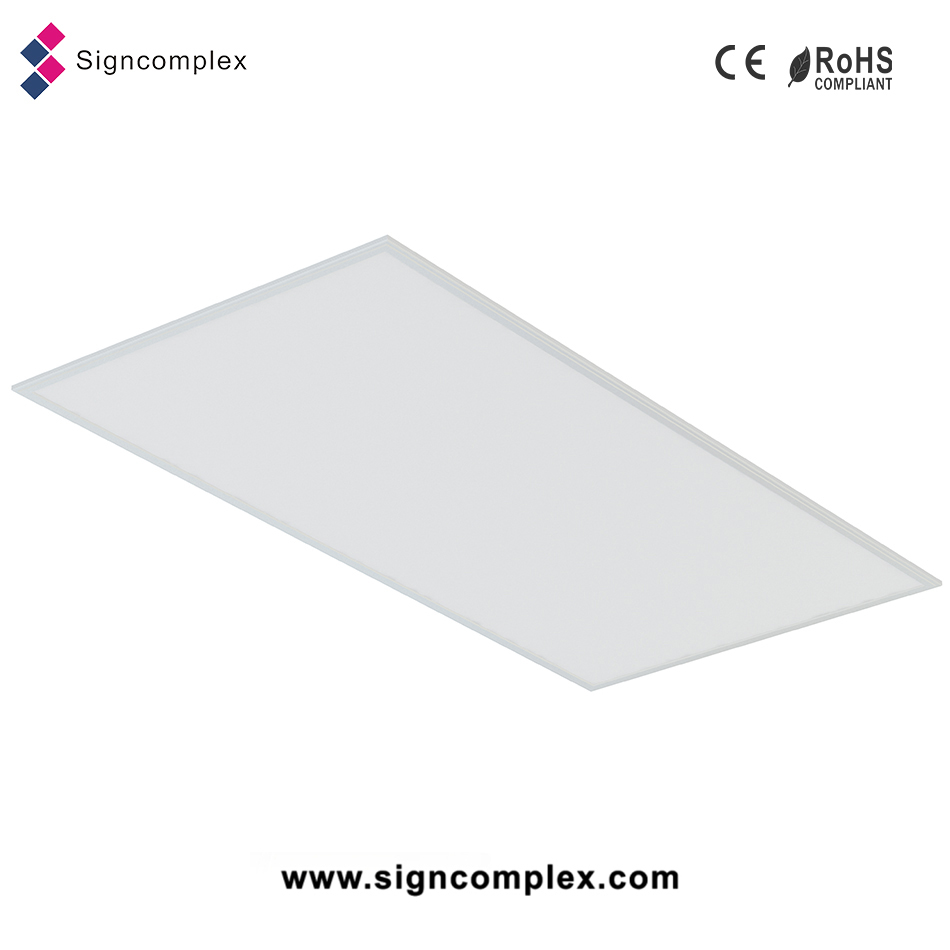

flat 2835 40w 55w dimmable led back light panel 1200 x 600 24v
LED Panel Light(0-10V Dimming)
SC-PSCAWCE6012-SC55W
SC-PSCAWNE6012-SC55W
SC-PSCAWWE6012-SC55W
Description of the 600x1200 led panel light:
LED Panel Light . Using Light Guide Plate, it has the feature of uniform and smooth l ight beam,
low glare rating, low l ight pol lution, and excel lent protection from eyestrain. It can be widely used as
interior lighting in shops, supermarkets, mal ls and hospitals, etc
Features of the 600x1200 led panel light:
Color: cool white, nature white, warm white, other available
Enclosure material: AI6063 + PMMA
Beam angle: 110°
Saving energy: 50%
Operating environment: dry location
Rated voltage/frequency: 100-277V AC 50/60Hz
LED Source: 2835 SMD LED
Reflector: milk color PMMA
Rated current: 1.5A
Rated power: 55W
Rated power factor: >0.9
Rated harmonic distortion: <20%
Rated luminous flux: 5364,5441,4700(lm)
Rated color temperature: 5000K(CW),4000K(NW),3000K(WW)
Rated CRI: >80
Rated R9: >0
Rated life span: more than 50,000Hrs
Driving current of single LED: 41.9mA
No UV, no IR
Standard warranty: 5 years
0-10V dimming: Voltage rating of the dimming wires shall be at less the branch circuit voltage
Specifications
| Model | CCT | LED Type | Lumen(lm) (±10%) | CRI | Beam angle | Power(W) (±10%) | Voltage (V) | PF | Weight (Kg) |
| SC-PSCAWCE6012-SC55W | 5000-6500K | 2835 | 5364lm | >80 | 110° | 55W | AC100-277V 50-60Hz | >0.9 | 7.68 |
| SC-PSCAWNE6012-SC55W | 3700-4500K | 5441lm | >80 | 110° | 55W | ||||
| SC-PSCAWWE6012-SC55W | 2700-3200K | 4700lm | >80 | 110° | 55W |
Applications
-Hotels
-Conference / Meeting rooms
-Factories & Offices
-Commercial Purposes.
-Residential / Institution Bui ldings
-Schools, Colleges & Universities
-Hospitals
-Places where energy saving and high color rendering index lighting are needed.
Production of flowsheet:
1) What are the best selling products in Signcomplex?
- tube
- panel lights
- LED strips
- spot and bulb
- controllers
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
