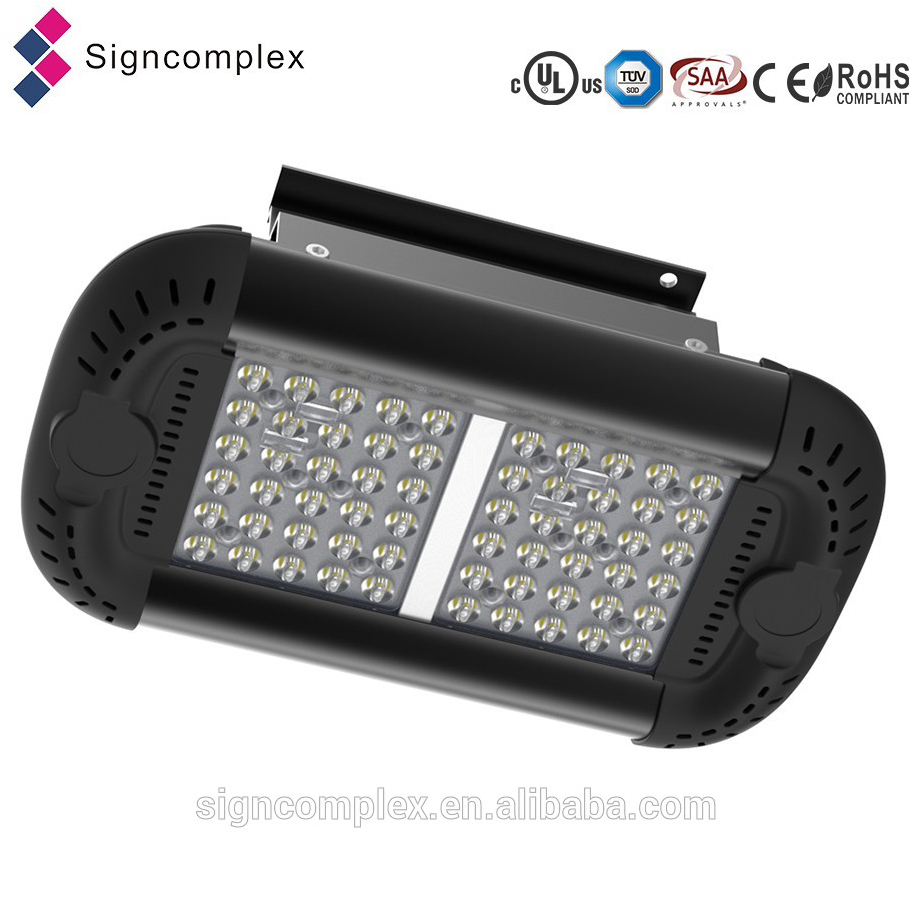

Dimmable Dali Libay highbay 200w highbay with glass fixtures 5 years warranty
Description

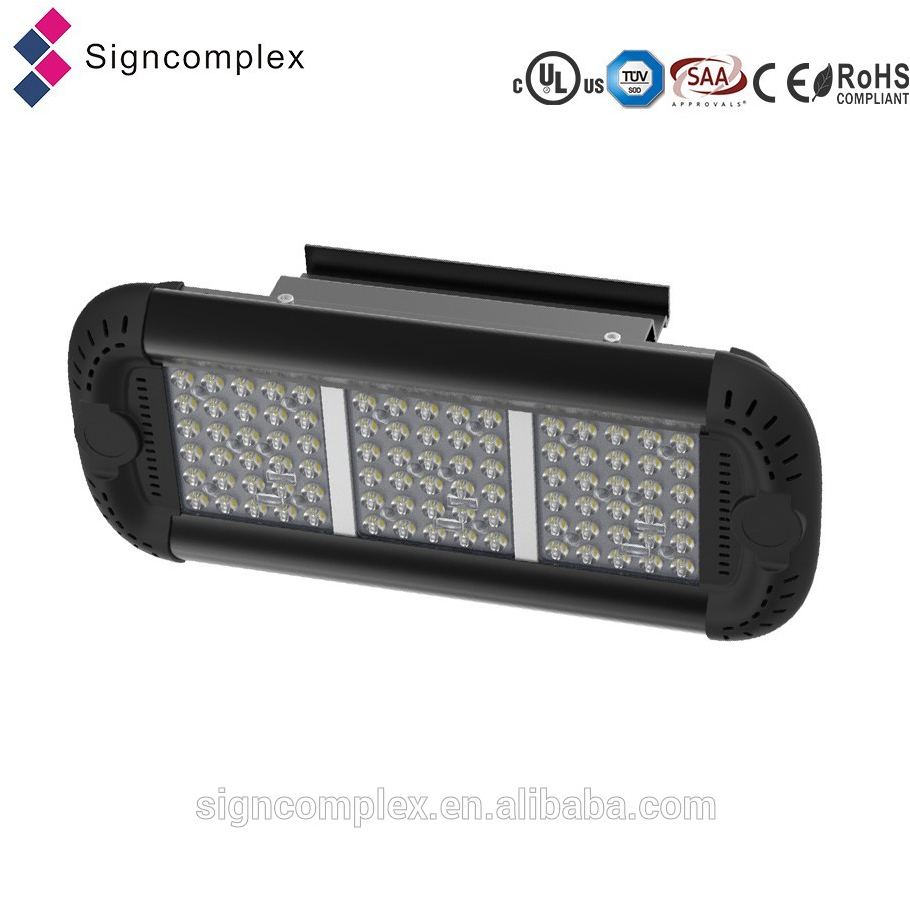

LiBay is an unique flexible lighting that can be used as normal high bay light but also used as warehouse light.We supply narrow,medium or wide beam angle.30*70 degree and 70*120 degree are designed for warehouse, aisle. 65*65 degree and 120*120 degree are suitable for gymnasium, factory,high bay appliance.With modular design,LiBay can be specified in two modules 90W, three modules 120W, four modules 150W,five modules 200W,six modules 240W, seven modules 300W.Efficiency 130lm of fixture, can save 60% energy.
Features
1) Linear and modular design
Fashion and pleasant appearance.
Easy intall, both ceiling and hanging, save labor cost.
2) Single output – 130 lumen/w
seoul 1919 LED
Range of 90W-280W, target to replace traditional HPS.
3) Lens angle option 30°x 70°, 70°x 120°, 120°x 120° for different applications
Anti-glare design.
Provide lens angle option to meet various lighting requires.
4) Ideal solution for commercial and industry lighting
For various applications such as warehouse, parking lot, plant, farm and so forth.
5) Modular design, 90W-280W are available;
6) Ceiling installation and suspension installation;
7) Black and silver color optional ;
8) IP65 ;
9) TUV,SAA approval ;
10) 5 years warranty ;
Specification
90W
120W
150W
200W
240W
280W
Installation
Installation requirement
1) The lamp can only be installed downward vertically, otherwise cooling and waterproof maybe damaged.
2) Power off before installation;
3) Make sure the installation material can endure the lamp weight; fix ceiling installation panel on installing surface with M10 expansion bolts;
4) Insert electrical cavity into ceiling installation panel(align locking bolt holes), then fasten lamp with M8 bolt +spring washer;
5) If choose suspendent installaton method, please confirm there are hangers first, fix suspendent bracket in the reserved hold of radiator, and fasten it with M6 nut, finally hook the suspendent bracket on the hanger.
6) Connet lamp wire to matched power wire, and seal the joint with insulation. 130lm/w led lights
Application
Packing information
90w
Net weight:3.8KG Gross weight(include ceiling installation plate):5.3kg;
Installation accessories:ceiling installatiuon plate(optina) 1.1kg
Suspendent bracket(optional)0.15kg
Outer carton dimension 450*280*190(1pcs/carton)
120W
Net weight: 5.05KG Gross weight(include ceiling installation plate):6.5kg;
Installation accessories: ceiling installatiuon plate(optina) 1.1kg
Suspendent bracket(optional)0.15kg
Outer carton dimension 560*280*190(1pcs/carton)
150W
Net weight: 5.9KG Gross weight(include ceiling installation plate):7.6 kg;
Installation accessories: ceiling installatiuon plate(optina) 1.1kg
Suspendent bracket(optional)0.15kg
Outer carton dimension 670*280*190(1pcs/carton)
200W
Net weight:7.0KG Gross weight(include ceiling installation plate):8.8KG;
Installation accessories: ceiling installatiuon plate(optina) 1.1kg
Suspendent bracket(optional)0.15kg
Outer carton dimension 780*280*190(1pcs/carton)
240W
Net weight: 7.88KG Gross weight(include ceiling installation plate):9.8KG;
Installation accessories: ceiling installatiuon plate(optina) 1.1kg
Suspendent bracket(optional)0.15kg
Outer carton dimension 900*280*190(1pcs/carton)
280W
Net weight: 9.33KG Gross weight(include ceiling installation plate): 11.2KG;
Installation accessories: ceiling installatiuon plate(optina) 1.1kg
Suspendent bracket(optional)0.15kg
Outer carton dimension 1010*280*190(1pcs/carton)
