led panel light 6060 40w 2ft*2ft 0-10v dimming with 5 years warranty time

Click on the image to view the original image

Product：	views：2led panel light 6060 40w 2ft*2ft 0-10v dimming with 5 years warranty time
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:39

Product Details

Overview

Quick Details

Input Voltage(V):: AC100-277V

Lamp Luminous Flux(lm):: 4000

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP44

Certification:: CE, ETL, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SC-PSCAWCE6060-J40W

Light Source:: LED

Lamp Luminous Efficiency(lm/w):: 100

Power:: 40w

Shape:: Square Shape

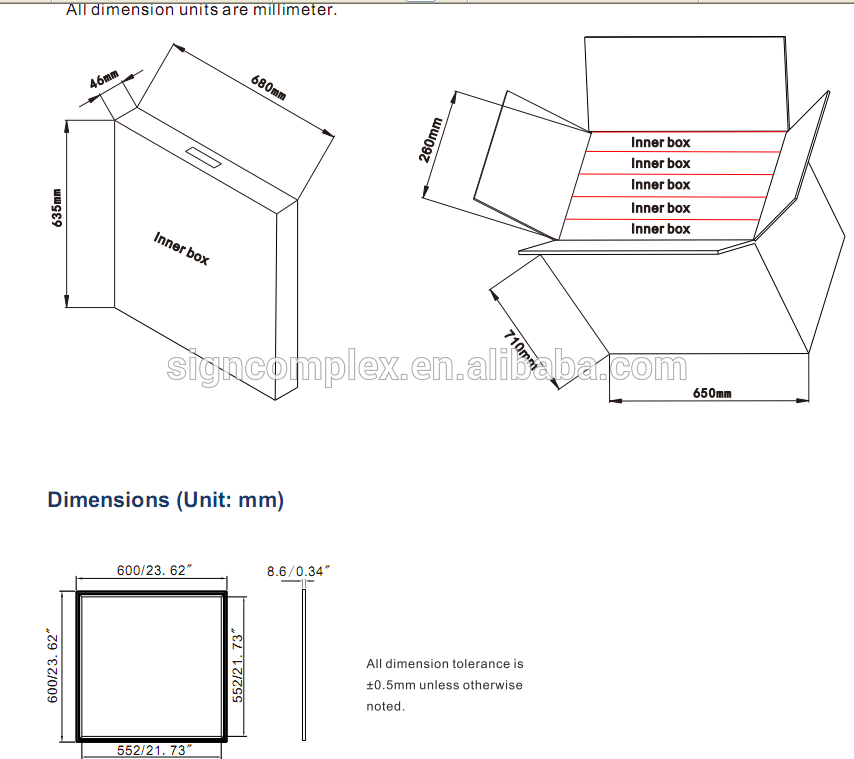

Size:: 600mm*600mm

LED Chip:: SMD4014

Material:: Aluminum frame

Beam angle:: 110 Degree

Dimmable:: 0-10v

Color:: 3000K/4000K/5000K

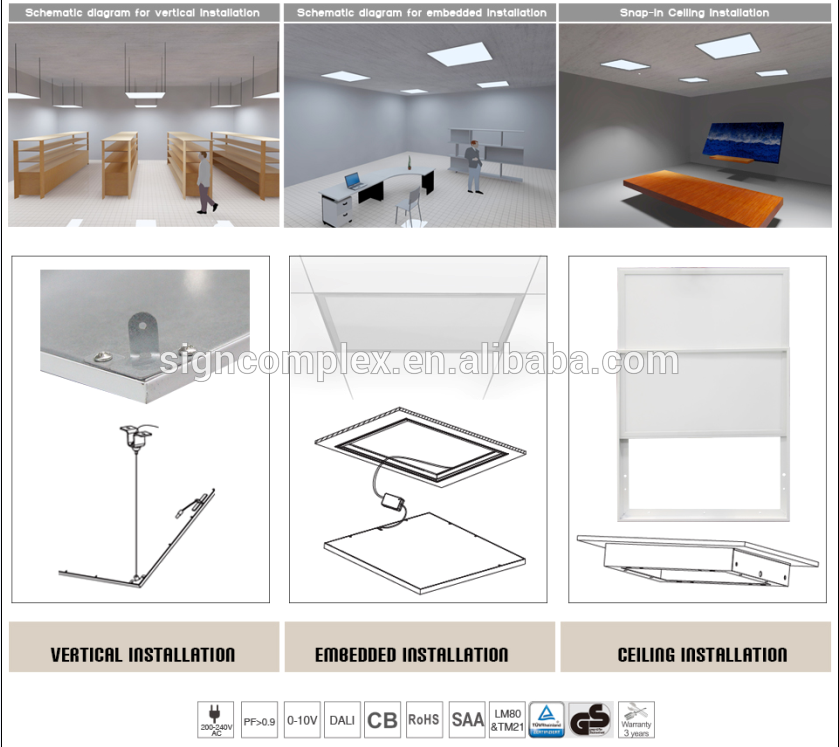

Installation:: suspended/recessed/surface mounted

Item Type:: Panel Lights

LED Light Source:: SMD4014

Warranty(Years):: 5

Supply Ability

Supply Ability:: 300000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 2pcs in one box, 2 boxes in one carton

Port: shenzhen

5 warranty years square Embedded/ surface mounted/ suspended panel light 600 x 600

LED Panel Light
SC-PSCAWCE6060-J40W

SC-PSCAWNE6060-J40W

SC-PSCAWWE6060-J40W

Features

1. Color:cool white(5000-6500K), nature white(3700-4500K),warm white(2700-3200K), other available.
2. Beam angle: 110 Degree
3. Saving energy: 50%
4. Life span more than 50000Hrs
5. IP code: IP44
6. Standard warranty: 5 years
7. CE, ROHS,etc certificated

Technical Parameter
Working voltage:AC100-277v
Max Current: 1.05A
LED type: 4014 SMD LED
Output Power: 40W
Dimming: 0-10v dimmable

Specifications:

Model	CCT	LED Type	Lumen(lm) (±10%)	CRI	Beam angle	Power(W) (±10%)	Voltage (V)	Size(ft)
SC-PSCAWCE6060-J40W	5000-6500K	4014	3880	>80	110°	40w	AC100-277v	2*2ft
SC-PSCAWNE6060-J40W	3700-4500K		3821	>80	110°	40w
SC-PSCAWWE6060-J40W	2700-3200K		3330	>80	110°	40w

Applications:
- Hotels
- Conference/Meeting rooms
- Factories and offices
- Commercial purposes
- Residential / Institution buildings
- Schools, colleges, universities and hospitals
-Places which needs energy saving and high color rendering index lighting.
