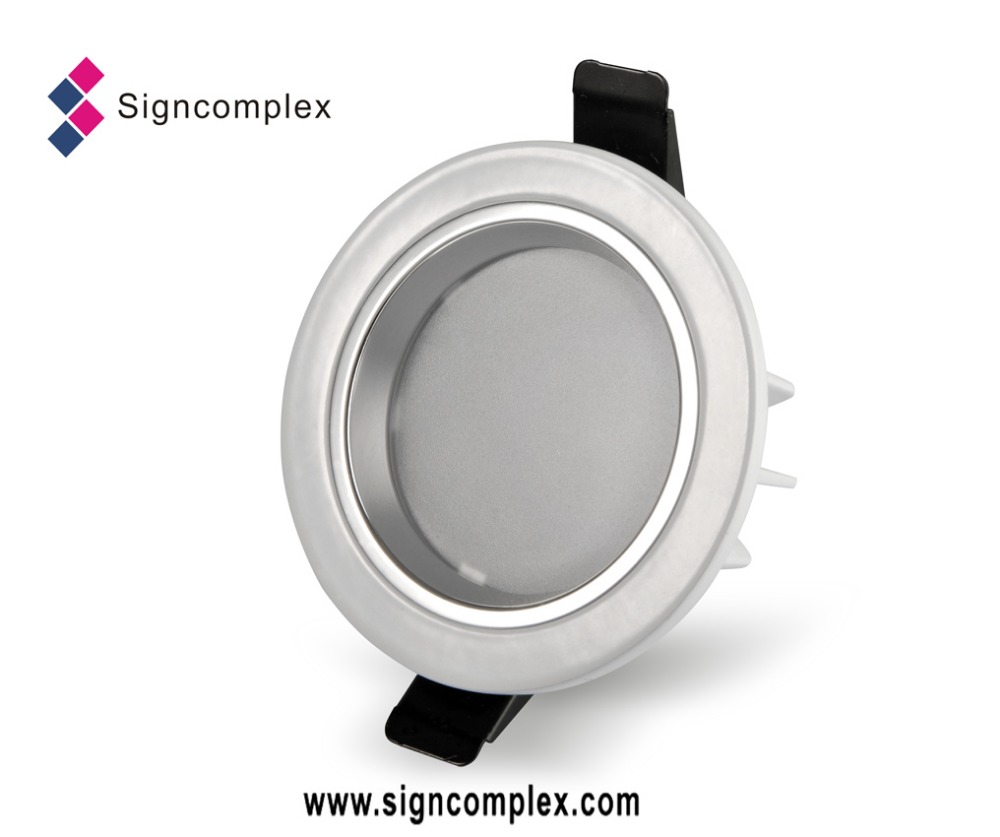

color temperature adjustable led downlight, 25w led downlight smd5730

Click on the image to view the original image

Product：	views：2color temperature adjustable led downlight, 25w led downlight smd5730
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:40

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 100-120V AC 60Hz

Lamp Luminous Flux(lm):: 100

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP33

Certification:: CE, LVD, RoHS

Model Number:: TDLD6-025-AL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

PF:: >0.9

Beam angle:: 88°

color:: white/warm white/Natural white

Led Qty:: 48

Net Weight:: 0.64g

CCT:: 6000-6300K

item:: color temperature adjustable led downlight, 25w led downlight smd5730

Item Type:: Downlights

Warranty(Years):: 3

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +40

Lamp Power(W):: 25

LED Light Source:: 5730

Lamp Luminous Efficiency(lm/w):: 1840

Color Temperature(CCT):: 5000-7000K/2700-3500K/4000-5000K

Supply Ability

Supply Ability:: 800000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Nner box dimension: 231*205*96MM
Net weight: 0.78KG
Gross weight: 1.01KG
Carton box dimension (18PCS inside) : 665*480*305MM

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 15 days after payment

Features :

*TRIAC dimmable, fluent, no strobe;
*Dimmable range 1%~100%;
*Unique structure design ensure optimized lighting effects;
*Obvious energy-saving effects;
*No UV or IR;
*Flexible control system of color difference ensure durability of light and color;
*Strong and durable aluminum enclosure, good heat dissipation structure;
*Milky cover, no flare, soft light;
*Constant -current driver, provide circuit protection and ensure lumen maintenance;
*Lifespan is above 50,000 hours.

Application :
Widely used in hotel, house, office, parking lot, exhibition, club and other places needing indoor lighting.

Specification:

Model Number	Color	LED Type	LED Qty.	CCT(K)	Light Output (lm)	Power (W)	Maximum current(mA)	Voltage (V) Frequency	Beam angle(°)	Net weight (KG)	PF
TDLD6-025-AL	white	5730	48	6000-6300	1840	25W	<100	100-120V AC 60Hz	88°	0.64	≥0.9
TDLD6-025-AL	Neutral white		48	3900-4100	1620
TDLD6-025-AL	warm white		48	2900-3100	1250
TDLD6-025-AH	white		48	6000-6300	1840	25W	<50	200-240V AC 50Hz
TDLD6-025-AH	Neutral white		48	3900-4100	1620
TDLD6-025-AH	warm white		48	2900-3100	1250
