TUV COB downlights, die-casting aluminum alloy rotatable 6inch 25w anti-glare led downlight

Click on the image to view the original image

Product：	views：2TUV COB downlights, die-casting aluminum alloy rotatable 6inch 25w anti-glare led downlight
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:40

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: AC100-240V

Lamp Luminous Flux(lm):: 2720

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP40

Certification:: CE, RoHS, UL

Model Number:: MDL6-025-AW-W-01

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Size:: 6" /8"available

Beam angle:: 90 Degree

Frequency:: 50-60hz

Power factor:: more than 0.9

Color temperature:: white/warm white/nature white

Item Type:: Downlights

Color Temperature(CCT):: Cool White

Working Temperature(℃):: -20 - 45

CRI (Ra>):: 80

LED Light Source:: COB

Warranty(Years):: 3 years

Lamp Power(W):: 25

Lamp Luminous Efficiency(lm/w):: 120

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Inner box and carton box

Port: shenzhen

Lead Time:: 10-15 working days

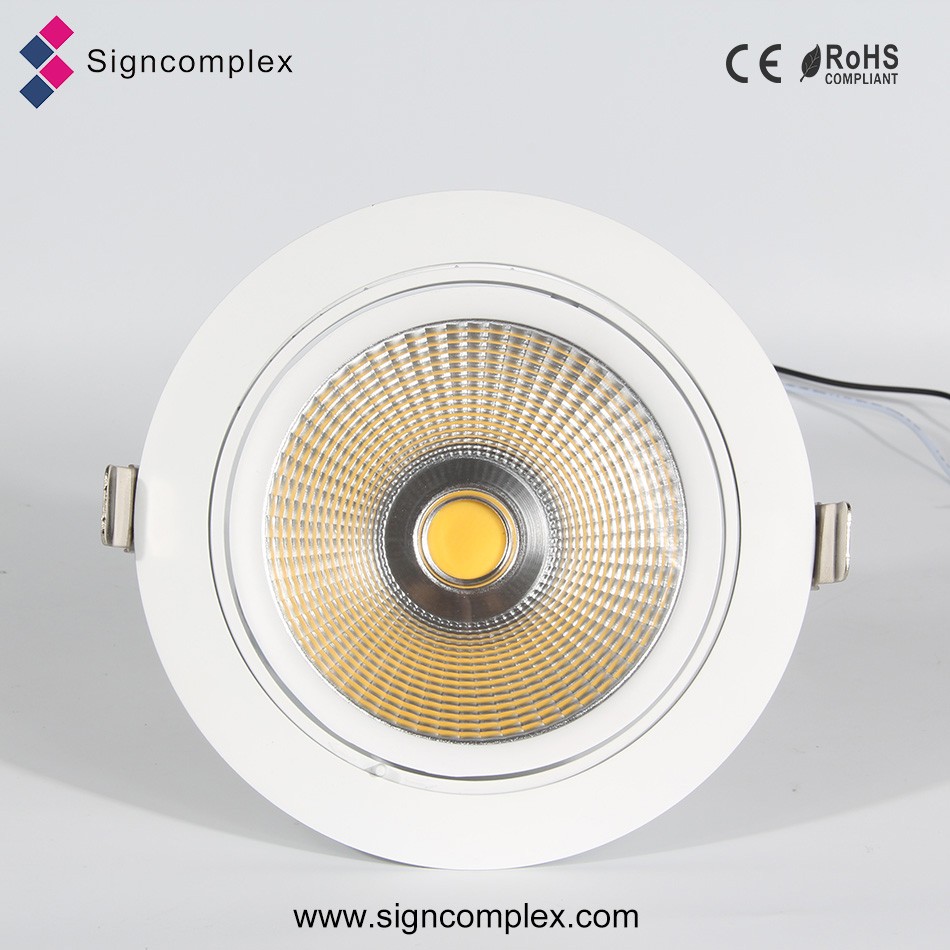

Luna COB 6" 25W Gimble Downlights

Description of the led downlight :

Luna COB 6" Downlight is designed to be rotatable 358° at horizontal and 30° at vertical direction, could meet various need on emitting directions. It is 25W including driver and delivers over 2000lm of 80+ CRI light while achieving up to 85lm/W. This outstanding performance is achieved by one 35W COB with Epistar chip. Its pending patent design especially the heat sink make sure perfect heat dissipation and low temperature on light body.

Features of the led downlight:

1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA as lens.
3. Unique and beautiful looking design.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6.Energy-saving and high efficient LED driver.

Specification of the led downlight:

Model #	CCT	LED Type (±10%)	Lumen(lm) (f10%)	CRI	Power(W) (±10%)	Beam angle	Current	Voltage (V)	PF
MDL6-025-AW-W-01	5000K	COB ( Epistar chip )	2130	>80	25W	30°	<0.32A	100-240V AC	>0.9
MDL6-025-AW-NW-01	4000K		2050
MDL6-025-AW-WW-01	3000K		2040

Dimension:

Install drawing:

Package information:

C O B6"
Product Net weight: 0.87kg
Product Gross weight:1.0kg
Dimension of inner box:185X185X150MM

Application:

Commercial lighting where need high light output like hotel lobby, airport, shopping center,
retail industry, museum, jewelry show room and so on..

Production Flow

Testing equipment

Shenzhen Signcomplex Limited
