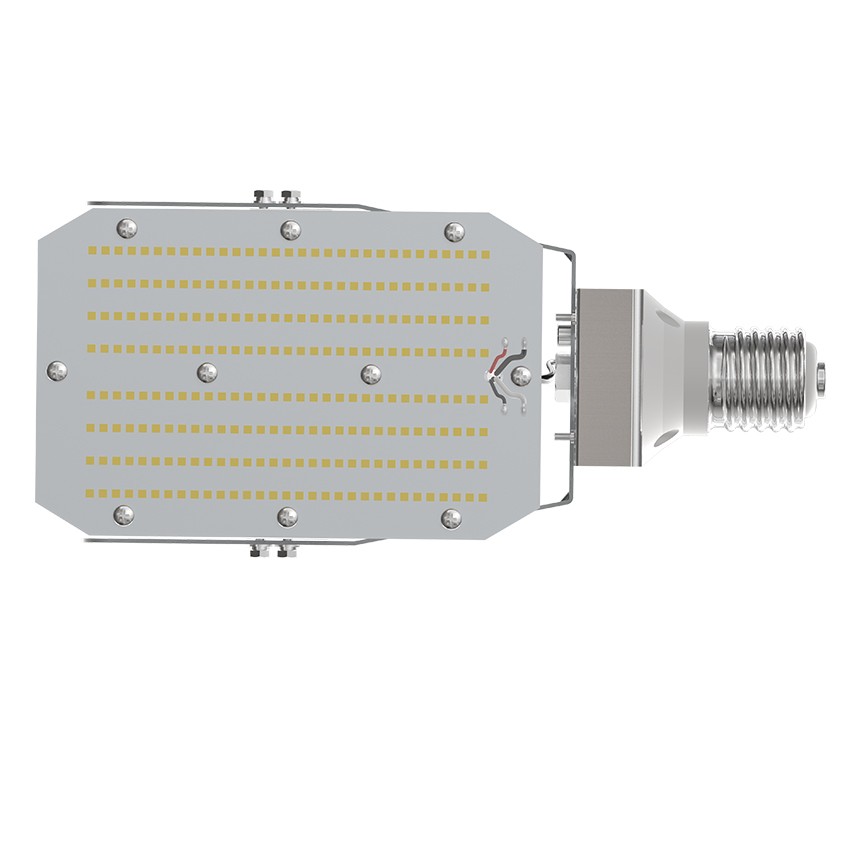

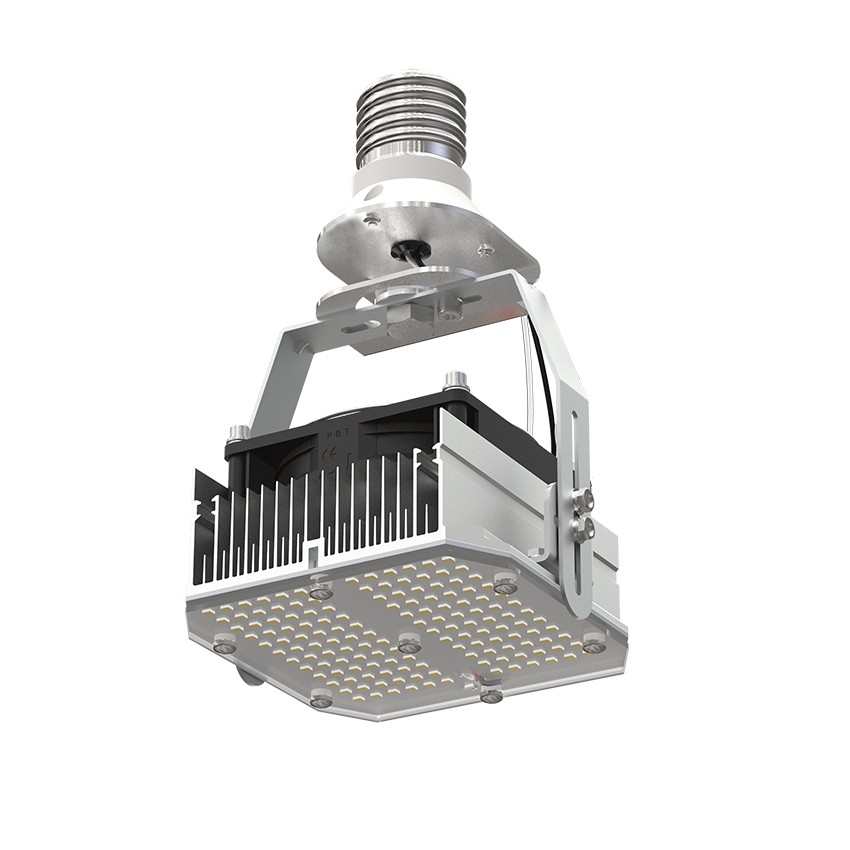

100w 150w 180w led street light retrofit, led retrofit kit
LED Retrofit
RT-100/150/180-AW
Discription:
LED Retrofit is designed as economic replacement for HPS.Its adjustable U bracket suit to horizontal and vertical mogul(E39) holder.It’s more efficient than LED corn light no matter in high bay,shoe box,street light or wall pack for its one face emitting,RT-150/RT-180 are ideal replacement for 250W and 400W HPS.
Feature:
1.An extreme economic retrofit,50% cost down compared to changing whole luminairs;
2.Retrofit is able to work in a sealed fixture and thermal detector could protect the LED while fan fail to work;
3.Standard E39/(Mogul)base,great compatibility;
4.Up to 120lm/w;
5.Using small drive current,LED package will have a longer lifespan;
6.Sosen driver ,Seoul 3030 LED,Taiwan Sunon fan.
Specifications:
| Model | Color | CCT | Lumen(lm) (±10%) | Beam angle (°) | LED Type | LED Qty. | Power (±10%) | Voltage, Frequency | CRI | PF |
| RT-100-AW-W-01 | 5000K | White | 12000 | 120° | SMD3030 | 130pcs | 100 | AC100-277V 50/60Hz | >80 | ≥90 |
| RT-100-AW-NW-01 | 4000K | Neutral white | 12000 | |||||||
| RT-100-AW-WW-01 | 3000K | Warm white | 10500 | |||||||
| RT-150-AW-W-01 | 5000K | White | 18000 | 120° | SMD3030 | 184pcs | 150 | AC100-277V 50/60Hz | >80 | ≥90 |
| RT-150-AW-NW-01 | 4000K | Neutral white | 18000 | |||||||
| RT-150-AW-WW-01 | 3000K | Warm white | 16000 | |||||||
| RT-180-AW-W-01 | 5000K | White | 21600 | 120° | SMD3030 | 248pcs | 180 | AC100-277V 50/60Hz | >80 | ≥90 |
| RT-180-AW-NW-01 | 4000K | Neutral white | 21600 | |||||||
| RT-180-AW-WW-01 | 3000K | Warm white | 20000 |
Application:
Replacement of traditional HPS and MH LEDs in gas station lamp,highbay light,wall pack,street lamp,project lamp,shoebox,etc.
