277V LED T8 tubes, 0/6M/1.2M/1.5M LED tubes
Click on the image to view the original image
Product: views:2277V LED T8 tubes, 0/6M/1.2M/1.5M LED tubes
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:41
  Negotiated
Product Details
Overview
Quick Details
Warranty(Years):
5
Input Voltage(V):
AC100-277V
Lamp Luminous Efficiency(lm/w):
140
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
PC
Certification:
CE, RoHS
Place of Origin:
China
Brand Name:
Signcomplex
Model Number:
T8
Light Source:
LED
Lamp Luminous Flux(lm):
4100
Color Temperature(CCT):
Cool White
LED Light Source:
SMD2835
Length:
60cm/120cm/150cm
Power Efficiency (PF):
0.9
Cover:
Clear Cover Frosted Cover
Power:
9w /18w/22w/30w
Power Factor:
PF>0.92/277VAC
Model number:
ST8-018-AW-NW-01C
Item Type:
Tube Lights
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner box and carton box
Port
shenzhen







Product Description

The LED tubes adopt reliable and long lifetime LEDs, no maintenance, high efficency, no mercury, no recycling, no flickeing, no buzzing, instant start, cold temperature operation and hight quality lights.  The shell all adopt high purity aluminum alloy and extrude molding, with electrostatic spraying on surface; via constant temperature curing, strong adhesion on spraying, the tube features high lumen, large lighting angle, novel structure, etc.



Why our S-tubes?

1. Much longer life than CFL tube:min 10 years(suppose that light is on 8 hours per day)

2. 70%-80% energy-saving over fluorescent tubes.

3. Solid state, high shock/vibration resistant.

4. Work without ballast, instant soft-start.

5. No RF interference, No fickering or buzzing.

6. Quick and easy installation to minimize retrofit costs.

7. Minimum maintenance costs, produce little heat.

8.  No mercury and other hazardous materials, fully RoHS compliant.

9. Continuous operation for white LEDs (10 years for other colors)

10. Rated to operate from -4°  F to 104° F(-20 ℃ to 40℃), perfect for environments with extreme climates.

11. Epistar + intermatix LED packaging solution, no patent trouble.

12. The newest design with best cost-effective products

13. Complete electricity isolation design, safety prove.

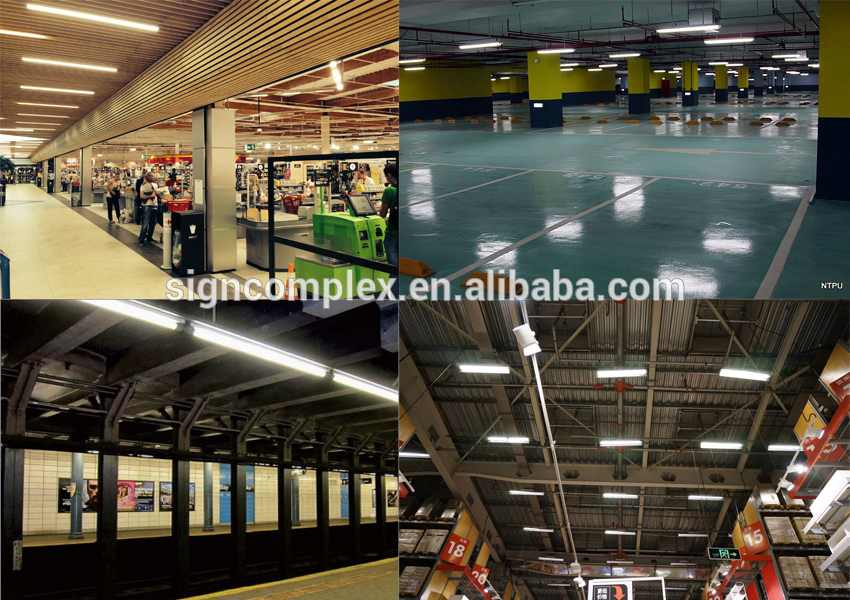

Application

 Suited for the packing lot, residential, warehouse, signage, office, railway station and bus.



Dimension





 Specification

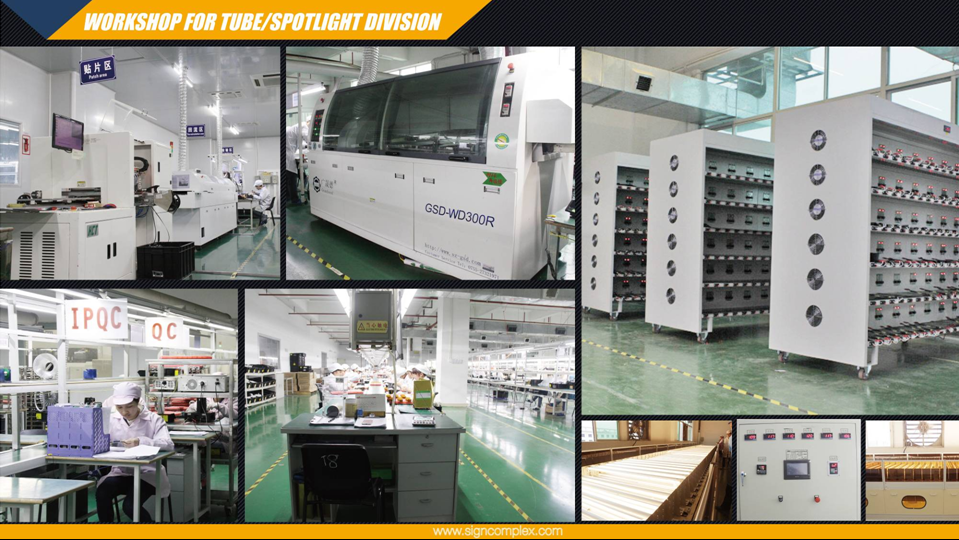

Production Flow
