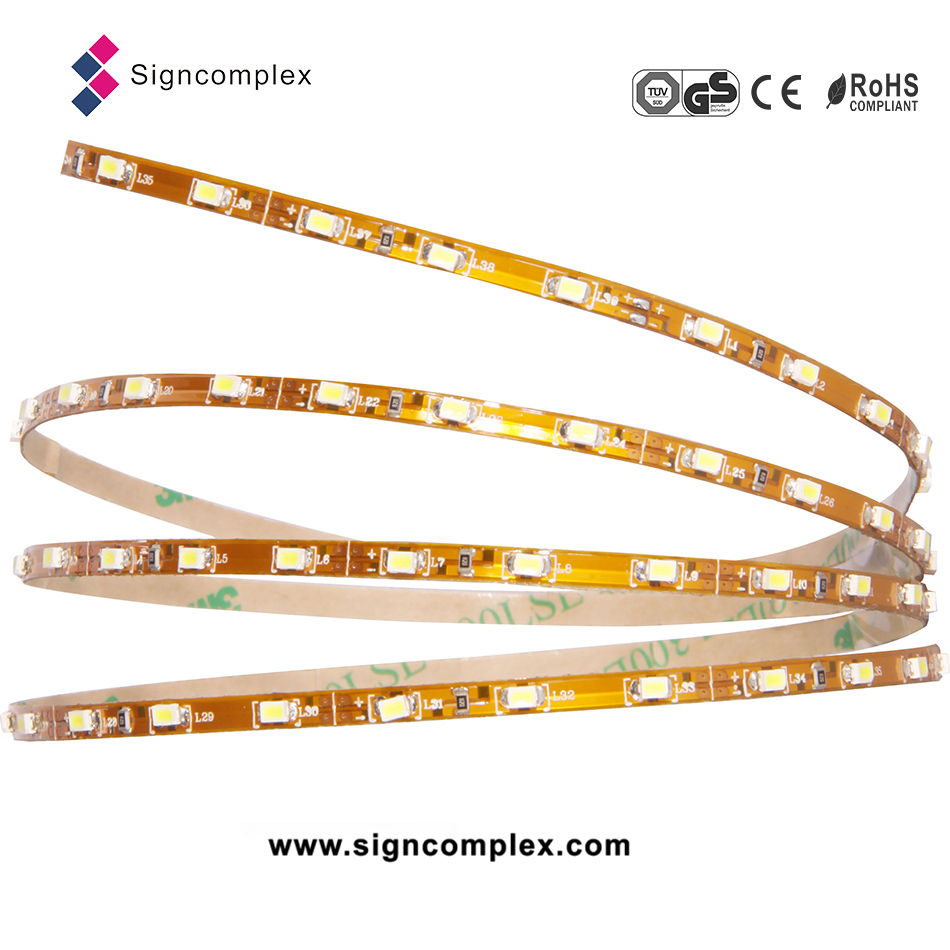

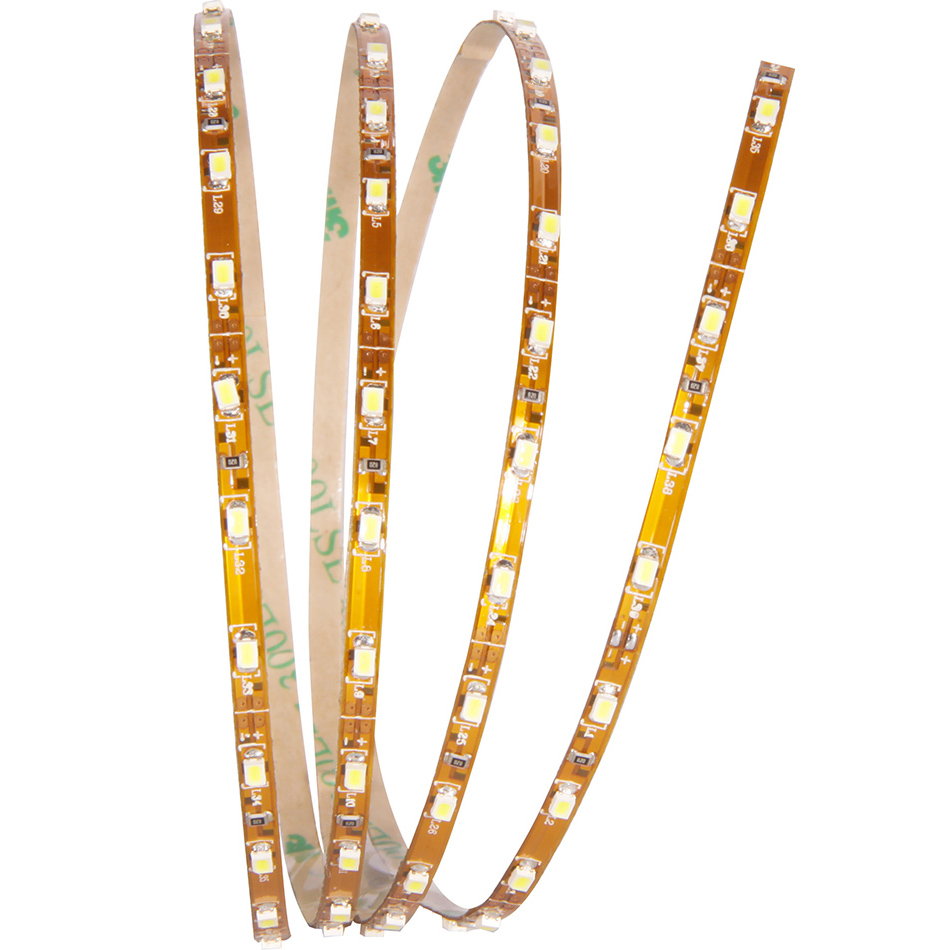

3.5mm Unique super slim width led flexible strip SMD3020 SMD3014

Click on the image to view the original image

Product：	views：23.5mm Unique super slim width led flexible strip SMD3020 SMD3014
Branch：	Signcomplex
Type：	Flex LED Strips
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:41

Product Details

Overview

Quick Details

Type:: Flex LED Strips

Input Voltage(V):: DC12V/24V

Lamp Power:: 14.4W/M

Lamp Luminous Flux(lm):: 950LM/M

CRI (Ra>):: 80

Working Temperature(℃):: -20 - +50

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

Certification:: CE, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SC-ID35/IE35

Light Source:: LED

Max.Length (m):: 3

Width (mm):: 3.5MM

Min.Length (mm):: 12.8mm/11.11mm/8.3mm

LED Qty. (pcs/m):: 78LEDs/m(SMD3020); 90LEDs/m ,120LEDs/m(SMD3014)

Rated watt (w/m):: 12.4W/M; 11W/M ;14.4W/M

IP Rating:: available for IP20,IP64,IP65,IP67

color temperature:: 2700K/4500K/6000K

Product Name:: super slim width led flexible strip SMD3020 SMD3014

keyword:: led flexible strip

Item Type:: Light Strips

LED Light Source:: SMD3020

Emitting Color:: Other

Supply Ability

Supply Ability:: 80000000 Roll/Rolls per Month simple is available for the led strip light ul

Packaging & Delivery

Port: Shenzhen and Hongkong

Lead Time:: Shipped in 7 days after payment

Features :

1.SMD3020,SMD3014 high bright LEDs

2. 3.5mm ultra-narrow width ,suitable for different installation

3.Three options :78LEDs/M (SMD3020); 90LEDs/M ,120LEDs/M (SMD3014);

4.Different single color ,12V DC ,3M/reel ,IP20;

5.Each section can be cut

6. TUV ,CE ,ROSH complaint

Available models:

We have many types of LED Strip:3528 led strip,5050 led strip,3014 led strip,3020 led strip,5730 led strip,2835 led strip,IP20 led strip,IP65 led strip,IP68 led strip,Normal brightness led strip,High brightness led strip,Super brightness led strip,High CRI led strip,Hybrid brightness led strip,Unique led strip,Rigid led strip...

Aging test:

As for the aging test,

1) we will have 8 hours aging test, we have 3 shifts in 24hrs to test, we have special record on the testing.

2) Our aging test room has constant temperature and constant humidity test, the temperature is about 40℃, the humidity is 40~50

3) LED strips are hanging in the air, it avoids that the static influences LEDs
