Home > Products > CE ROHS TUV DALI dimmable cob led downlight

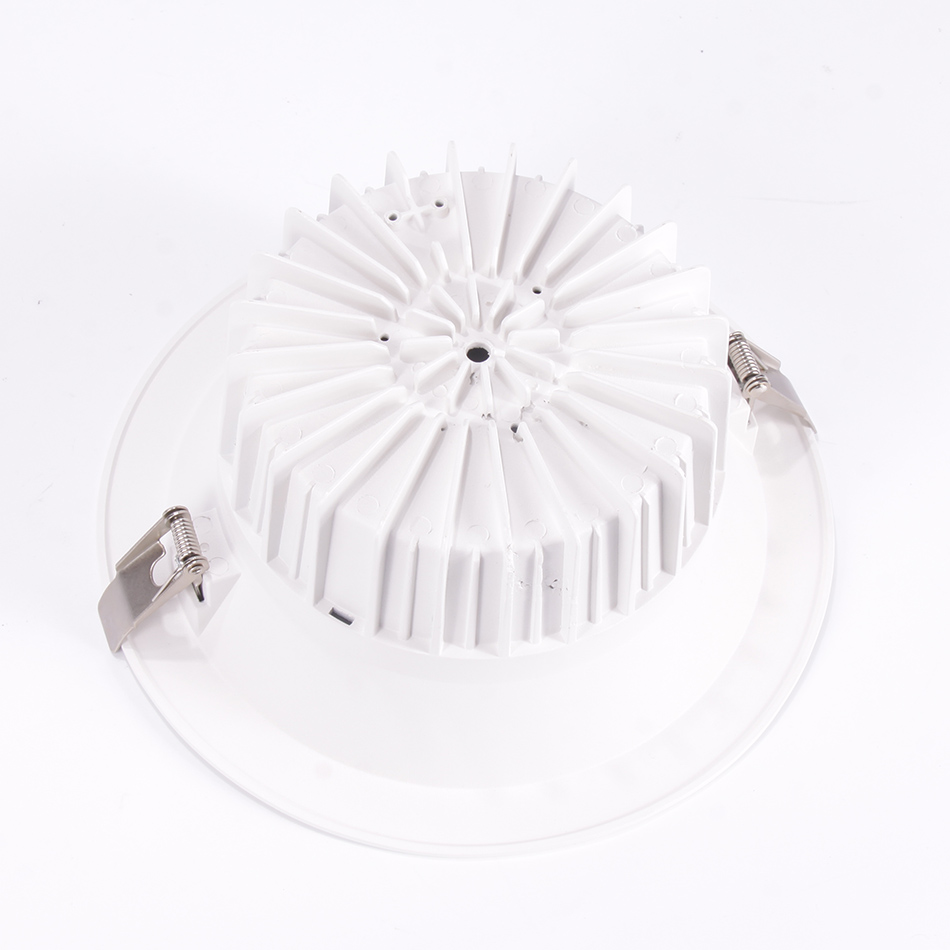

CE ROHS TUV DALI dimmable cob led downlight

Click on the image to view the original image

Product：	views：2CE ROHS TUV DALI dimmable cob led downlight
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:41

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: AC100-240V

Lamp Luminous Flux(lm):: 2220

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP20

Certification:: CE, RoHS

Model Number:: TDLD7-030-AL-W

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Size:: 7inch smd5730 dimmable downligh

item:: dimmable cob led downlight with CE ROHS TUV DALI

Item Type:: Downlights

Warranty(Years):: 3 years

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Lamp Power(W):: 30

LED Light Source:: COB

Lamp Luminous Efficiency(lm/w):: 74

Color Temperature(CCT):: W/WW/NW

Supply Ability

Supply Ability:: 200000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Inner box dimension: 231*205*96MM
Net weight: 0.78KG
Gross weight: 1.01KG
Carton box dimension (18PCS inside) : 665*480*305MM

Port: Shekou

Lead Time:: Shipped in 7 days after payment

Dimmable cob led downlight with CE ROHS TUV DALI

Features of the led down light:

*TRIAC dimmable, fluent, no strobe;
*Dimmable range 1%~100%;
*Unique structure design ensure optimized lighting effects;
*Obvious energy-saving effects;
*No UV or IR;
*Flexible control system of color difference ensure durability
of light and color;
*Strong and durable aluminum enclosure, good heat
dissipation structure;
*Milky cover, no flare, soft light;
*Constant -current driver, provide circuit protection and ensure
lumen maintenance;
*Lifespan is above 50,000 hours.

Application :
Widely used in hotel, house, office, parking lot, exhibition, club and other places needing indoor lighting.

Specification :

Model Number	Color	LED Type	LED Qty.	CCT	Light Output (lm)	Power (W)	Maximum current(mA)	Voltage (V) Frequency	Beam angle(°)	Net weight (KG)	PF
TDLD7-030-AL-W	white	5730	60	6000-6300	2220	30W	<320	100-120V AC 60Hz	82°	0.78	≥0.9
TDLD7-030-AL-NW	Neutral white		60	3900-4100	2000
TDLD7-030-AL-WW	warm white		60	2900-3100	1760
TDLD7-030-AH-W	white		60	6000-6300	2220	30W	<160	200-240V AC 50Hz
TDLD7-030-AH-NW	Neutral white		60	3900-4100	2000
TDLD7-030-AH-WW	warm white		60	2900-3100	1760
