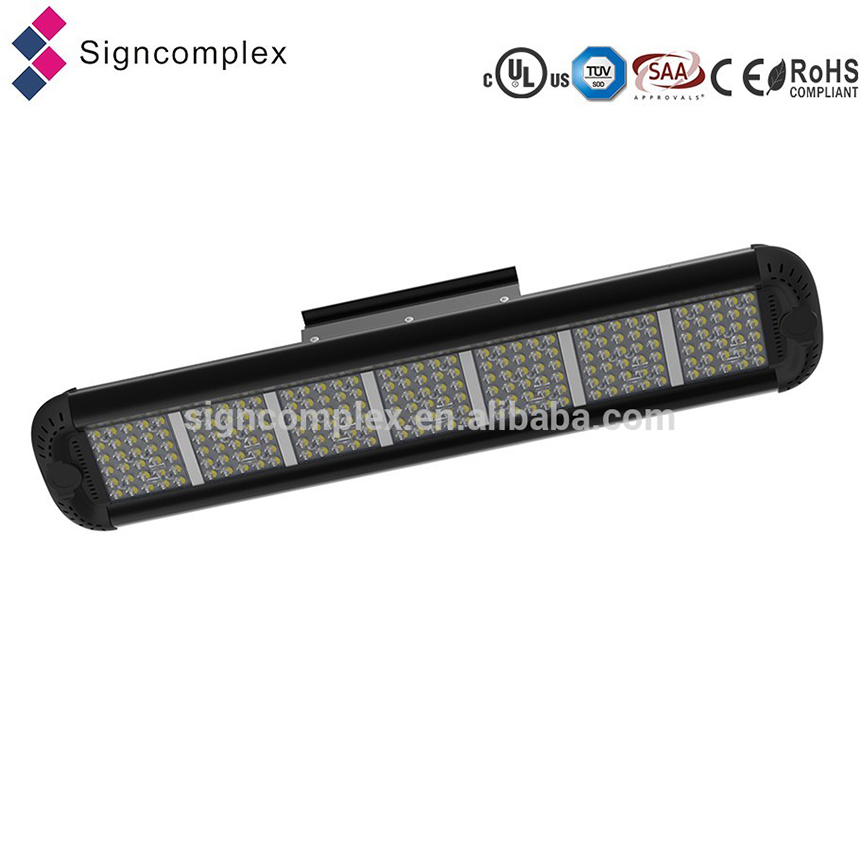

New Industrial lighting fixture ufo LED High Bay Light100w /150w/200w
LiBayTM High Bay& Low Bay
Lighting Seried300W
GK-300-AW-L
Description of the led warehouse lighting :
LiBayTM high bay and low bay lighting is commercial and industry leading fixtures.With 130lm/W light output,they are ideal choices for replacing fluorescent and MH lamp source.LiBayTM lighting bring new levels of performance,technical innovation and unique design to outdoor and indoor use.
Features of the led warehouse lighting :
1.Unique appearance design,different from traditional high-bay light,fashion,compact,beautiful,can be customized;
2.High light effect Seoul Semiconductor and CREE LEDs optional,and light output can be up to 130lm/W.
3.Anti-glare design,better protect eyes;
4.Modular design,different power and length can be customized;
5.Meanwell power supply,PF>0.9;
6.Ceiling installation and suspension installation,quick and convenient;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.
Technical parameters :
| Model | Color | CCT | Lumen(lm) (±10%) | LED Type | LED Qty. | Power (±10%) | Voltage Frequency | Current | Beam angle (°) | CRI | IP | PF |
| GK-300-AW-W-L-01 | white | 5500-6500K | 27720 | CREE | 210pcs | 300w | AC100-277V 50/60Hz | 3.5A | 70°*120° | >70 | 65 | >0.9 |
| GK-300-AW-NW-L-01 | neutral white | 4000-4500K | 28100 | |||||||||
| GK-300-AW-WW-L-01 | warm white | 2700-3200K | 25080 | |||||||||
| GK-300-AW-W-L-02 | white | 5500-6500K | 27720 | CREE | 210pcs | 300w | AC100-277V 50/60Hz | 3.5A | 70°*120° | >70 | 65 | >0.9 |
| GK-300-AW-NW-L-02 | neutralwhite | 4000-4500K | 28100 | |||||||||
| GK-300-AW-WW-L-02 | warm white | 2700-3200K | 25080 | |||||||||
| GK-300-AW-W-L-04 | white | 5500-6500K | 36460 | SEOUL | 210pcs | 300w | AC100-277V 50/60Hz | 3.5A | 70°*120° | >70 | 65 | >0.9 |
| GK-300-AW-NW-L-04 | neutral white | 4000-4500K | 35640 | |||||||||
| GK-300-AW-WW-L-04 | warm white | 2700-3200K | 35620 | |||||||||
| GK-300-AW-W-L-05 | white | 5500-6500K | 36460 | SEOUL | 210pcs | 300w | AC100-277V 50/60Hz | 3.5A | 70°*120° | >70 | 65 | >0.9 |
| GK-300-AW-NW-L-05 | neutral white | 4000-4500K | 35640 | |||||||||
| GK-300-AW-WW-L-05 | warm white | 2700-3200K | 35620 |
Application :
Suitable for large workshop,warehouse,parking lot,shopping mall,farm,gas station and other places.
Production line:
Welcome to inquire the led warehouse lighting!
Please email for details!
