Aluminum profile led linear trunking system led tube light,36w led linear light

Click on the image to view the original image

Product：	views：2Aluminum profile led linear trunking system led tube light,36w led linear light
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:41

Product Details

Overview

Quick Details

Warranty(Years):: 3

Input Voltage(V):: AC 100-240V 50/60Hz

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Lamp Body Material:: premium aluminum

IP Rating:: IP40

Certification:: CE, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: led linear light

Light Source:: LED

Model number:: SC-SL8050-036-AW-01W

CCT:: 6000-6500K

Beam Angle:: 110°

PF:: >0.95

Weight (Kg):: 2.58

Length:: 1200mm

Reflector:: Milky cover

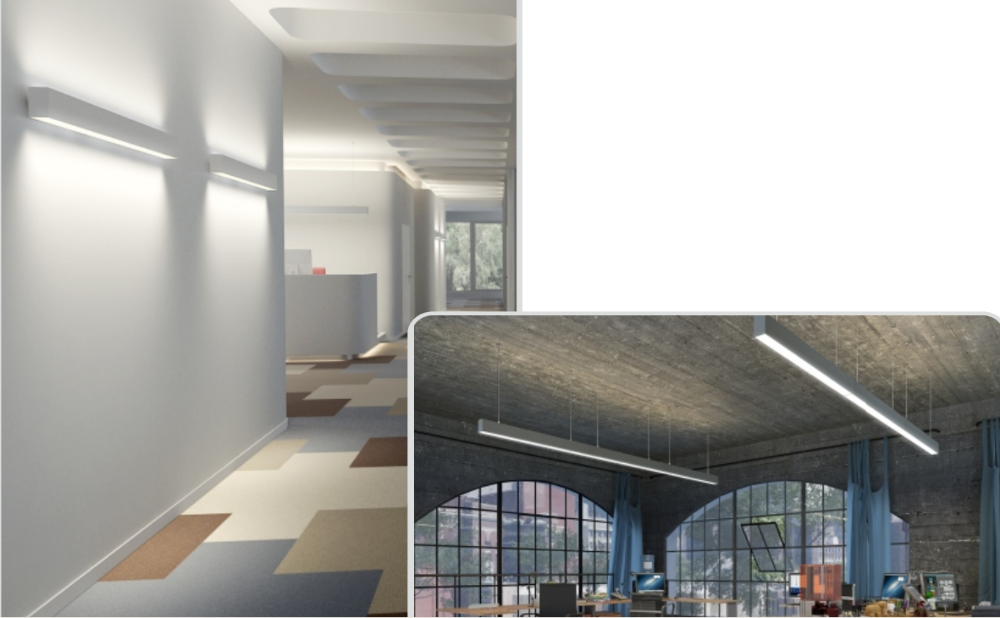

Applications:: Hotels, Conference,Factories,offices,Commercial purposes, Residential

Product Name:: led batten linear light

Item:: 0.6m/1.2m/1.5m 2835smd Extrusion aluminum led batten linear light

Item Type:: Tube Lights

Color Temperature(CCT):: Pure White

LED Light Source:: SMD 2835

Lamp Luminous Flux(lm):: 3312

Supply Ability

Supply Ability:: 9500000 Piece/Pieces per Month we have stock for the led batten linear light

Packaging & Delivery

Packaging Details: Common industrial packaging,Inner box and carton

Port: Shenzhen and Hongkong

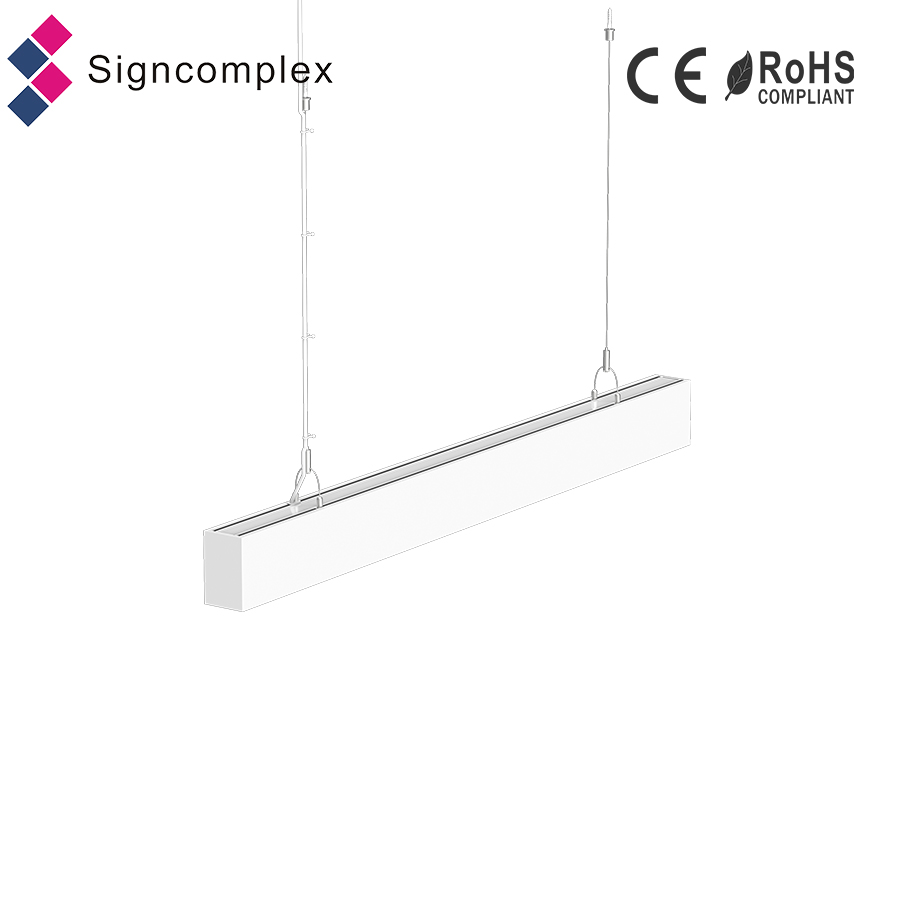

LED Linear Light
SL8050 in single run

Description :
LED linear light is exclusively designed for designer and architect with imagination and personal style.LED linear light adopt premium aluminum profi le,different dimension and size,easy to install.3 types installation method: ceiling mounted type, suspended type and embedded type,and different customized dimensions are also acceptable,which can meet installation requirement of different fields and occasions.

Features:
1.Simple and modern design,screwless at end cap.

2.Extrusion aluminum lamp boby and PC cover.

3.Smooth and soft lighting effect,no dark dot and shadow at the lighting area.

4.Various installation:Suspendent,ceiling and recessed.

5.Three colors of lamp body,white,black and silver.

6.Continuous connection at max 550W run.

Specification:

Model	CCT	LED Type	Lumen(lm) (±10%)	Power(W) (±10%)	Length(mm)	Voltage (V)
SC-SL8050-018-AW-01W	6000-6500K	2835	1656lm	18W	600	AC 100-240V 50/60Hz
SC-SL8050-018-AW-01NW	3800-4200K		1620lm	18W	600
SC-SL8050-018-AW-01WW	2800-3200K		1530lm	18W	600
SC-SL8050-036-AW-01W	6000-6500K	2835	3312lm	36W	1200	AC 100-240V 50/60Hz
SC-SL8050-036-AW-01NW	3800-4200K		3240lm	36W	1200
SC-SL8050-036-AW-01WW	2800-3200K		3060lm	36W	1200
SC-SL8050-045-AW-01W	6000-6500K	2835	4140lm	45W	1500	AC 100-240V 50/60Hz
SC-SL8050-045-AW-01NW	3800-4200K		4050lm	45W	1500
SC-SL8050-045-AW-01WW	2800-3200K		3825lm	45W	1500
Beam angle	PF	CRI	IP	Life span	Reflector	installation
110°	>0.95	≥80	IP40	50000hrs	Milky cover	Suspendent installation /Ceiling installation /Embedded Installation
