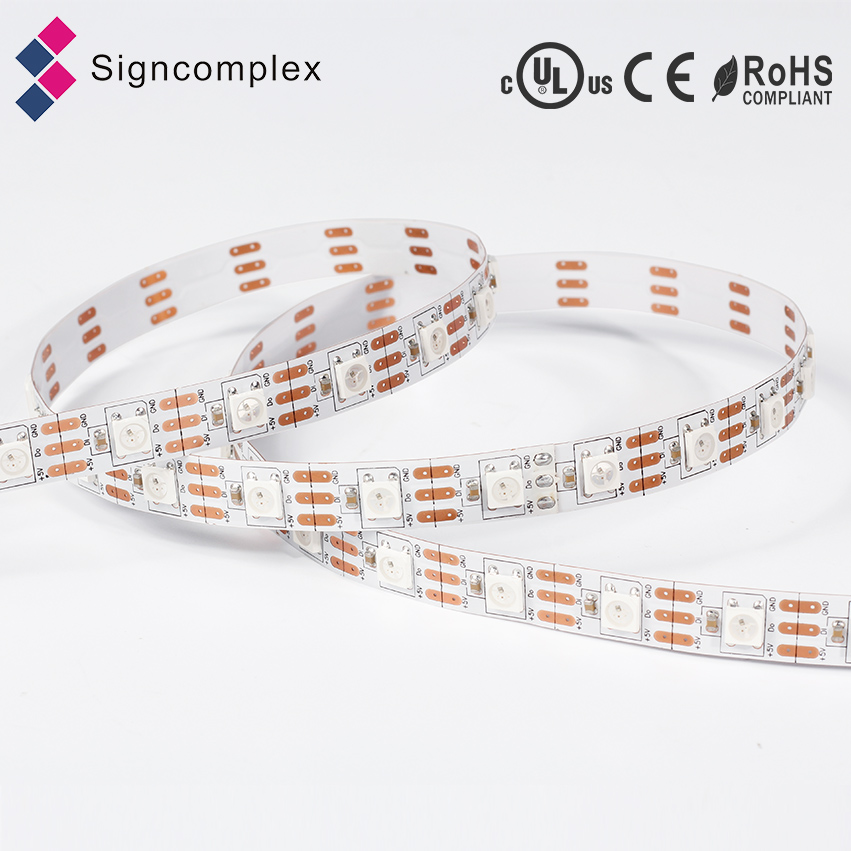

waterproof 5050 led strip dc24v/3.6v flexible led strip/waterproof cct adjustable led strip

Click on the image to view the original image

Product：	views：2waterproof 5050 led strip dc24v/3.6v flexible led strip/waterproof cct adjustable led strip
Branch：	Signcomplex
Type：	Flex LED Strips
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:41

Product Details

Overview

Quick Details

Type:: Flex LED Strips

Input Voltage(V):: DC12V/24V

Lamp Power:: 4.8W/M,9.6W/M,14.4w/m

Lamp Luminous Flux(lm):: 230lm/m---1020lm/m

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 60

Working Lifetime(Hour):: 50000

Lamp Body Material:: TPU+PVC

Certification:: CE, EMC, RoHS, SAA, UL

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Model Number:: SMD 3528,5050,3014.3020 etc.

Light Source:: LED

Color:: white, natural white, warm white, Red,Green, Blue,RGB etc.

LED QTY:: 30 Pcs/meter, 60pcs/meter

IP Rating:: IP20/IP64/IP65

Application:: Indoor and outdoor

PCB Color:: white, black, yellow for choice

Warranty:: 3years

Item Type:: Light Strips

Emitting Color:: Changeable

Color Temperature(CCT):: 2700-7000K

LED Light Source:: SMD3528,5050,3014,3020 etc.

Supply Ability

Supply Ability:: 700000 Meter/Meters per Month

Packaging & Delivery

Packaging Details: Reel and antistatic bag, custom package acceptable

Port: Shenzhen

Lead Time:: Shipped in 15 days after payment

Waterproof 5050 led strip dc24v/3.6v flexible led strip/waterproof cct adjustable led strip

Product Description

RGB Led strip feature

High brightness.
Silicon sleeved version.
Long life span,standard warranty 3 years.
Complete cut / connection accessories.
No need of constant-current power feed.

Technical parameters:

Model No.	Color	Length(m)	LED Qty	LED Type	Lumen(lm)	Beam Angel (degrees)	Voltage (V DC)	Max. Power Consumption(W)	IP	Continuous Connection(m)
SC-SS-R	Red	0.5	30	3528 Epistar	90	120	12	2.4	20	10
SC-SS-Y	Yellow	0.5	30		110			2.4
SC-SS-B	Blue	0.5	30		60			2.4
SC-SS-G	Green	0.5	30		120			2.4
SC-SS-W	White	0.5	30	3528 Epistar	200	120	12	2.4	20	10
SC-SS-NW	Natural White	0.5	30		180			2.4
SC-SS-WW	Warm White	0.5	30		160			2.4
SC-SS-RGB	RGB	0.6	30		180			7.2
SC-JSS-R	Red	0.5	30	5050 Epistar	90	120	12	2.4	20	10
SC-JSS-Y	Yellow	0.5	30		110			2.4
SC-JSS-B	Blue	0.5	30		60			2.4
SC-JSS-G	Green	0.5	30		120			2.4
SC-JSS-W	White	0.5	30	5050 Epistar	200	120	12	2.4	20	10
SC-JSS-NW	Natural White	0.5	30		180			2.4
SC-JSS-WW	Warm White	0.5	30		160			2.4
SC-JSS-RGB	RGB	0.6	30		180			7.2

Packaging & Shipping

1. Reel and antistatic bag, custom package acceptable.

2.Regular package: 100reels per carton, 5meter/reel

3.Express or shipping by Sea is acceptable.
