Home > Products > waterproof outdoor lighting led wall pack, led outdoor wall lamp, led mini wall pack
waterproof outdoor lighting led wall pack, led outdoor wall lamp, led mini wall pack
Click on the image to view the original image
Product: views:2waterproof outdoor lighting led wall pack, led outdoor wall lamp, led mini wall pack
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:41
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Item Type:
Outdoor Wall Lights
LED Light Source:
2835
Input Voltage(V):
AC 100-277V 50-60Hz
Lamp Luminous Flux(lm):
10500
CRI (Ra>):
80
Beam Angle(°):
120degree
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP66
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Color Temperature(CCT):
Pure White
Lamp Luminous Efficiency(lm/w):
110
Led quantity:
228pcs 1w
Warranty:
5years
Net Weight:
4.1kg(100w)
item:
die-cast IP65 45w 70w 100w led wall pack with 5 warranty years
Product name:
led wall pack
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month we have stock for the led wall pack light
Packaging & Delivery
Packaging Details
Package Dimension
WPHC-100390*320*260(mm)
Port
Shenzhen and Hongkong

waterproof outdoor lighting led wall pack, led outdoor wall lamp, led mini wall pack






LED Wallpack

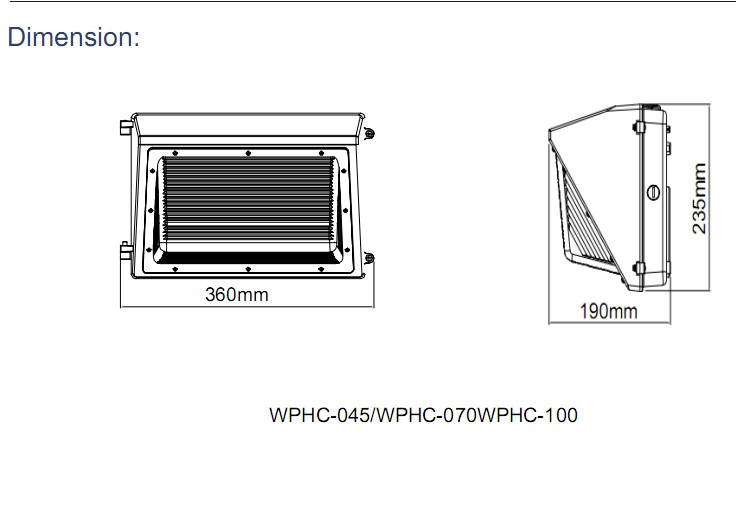

WPHC-045    WPHC-070    WPHC-100



Up to 110lm/w
Easy installation bracket(Option)
More compact,45w/70w/100w in one enclosure
Photocell control(Option)
Dark bronze,dirt-resistant





Product Feature:

1.The die-cast fixture after anti corrosion treatment is heavy-duty and reliable.
2.Polyester powder-coated finish, rust and corrosion proof
3.Anti-glare and UV resistance PC
4.Use a unique heat sink design to shorten the thermal pass way
5.Using small drive current, LED package will have a longer L(70)



Technical Parameter:

ModleColorLumenBeam angleLEDPower(W)ImputCRI
WPHC-045-AW-Wwhite4600120324pcs
0.2w 2835
45AC100-277V
50-60Hz
80
WPHC-045-AW-NWneutral white4500120324pcs
0.2w 2835
45AC100-277V
50-60Hz
80
WPHC-045-AW-WWwarm white4100120324pcs
0.2w 2835
45AC100-277V
50-60Hz
80
WPHC-070-AW-Wwhite7600120168pcs
1w 2835
70AC100-277V
50-60Hz
80
WPHC-070-AW-NWneutral white7500120168pcs
1w 2835
70AC100-277V
50-60Hz
80
WPHC-070-AW-WWwarm white7000120168pcs
1w 2835
70AC100-277V
50-60Hz
80
WPHC-100-AW-Wwhite10500120228pcs
1w 2835
100AC100-277V
50-60Hz
80
WPHC-100-AW-NWneutral white10200120228pcs
1w 2835
100AC100-277V
50-60Hz
80
WPHC-100-AW-WWwarm white9500120228pcs
1w 2835
100AC100-277V
50-60Hz
80

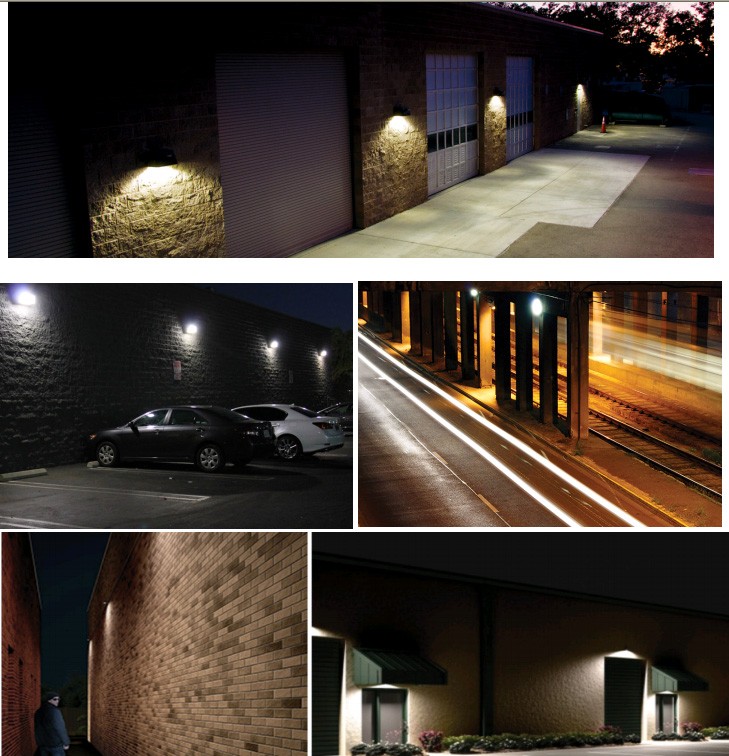

Application
Parking area, garden, backyard, walkway,passway,tunnel etc...







Contact us

Request pirce? a sample? or custom order?

Contact us now for more discount!



Company Information



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- Panel light
- Linear light

- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack / Shoebox / Canopy light / Tri-proof light
- Corn bulb

- LED tube

- Emergency light  (Exit Sign / Emergency Downlight / Camping Light)

- LED Controller



2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.



3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.



4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.



5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.



6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.



7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.



8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.



9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
