Home > Products > 170LM/W 2835smd super brightness led tube with 5 years warranty

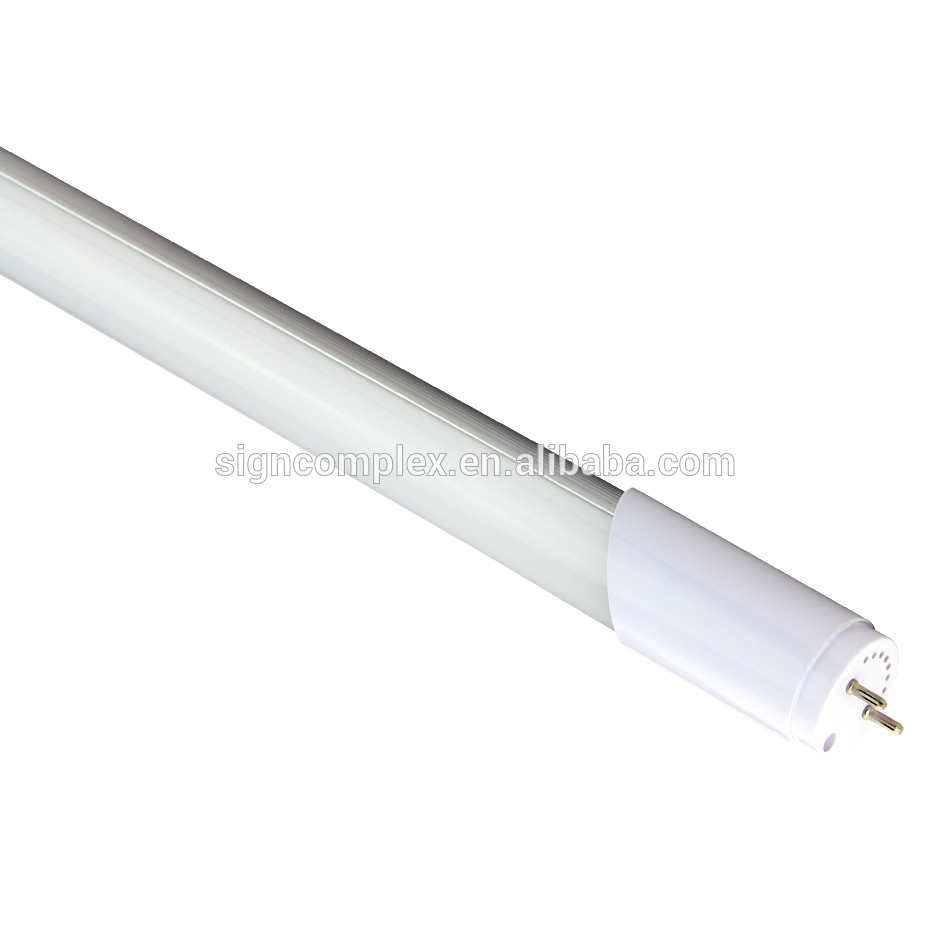

170LM/W 2835smd super brightness led tube with 5 years warranty
Click on the image to view the original image
Product: views:2170LM/W 2835smd super brightness led tube with 5 years warranty
Branch: Signcomplex
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:41
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
100-240
Lamp Luminous Flux(lm):
2800
CRI (Ra>):
75
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Application:
indoor lighting
Light Source:
LED
Color Temperature(CCT):
Cool White
Lamp Luminous Efficiency(lm/w):
170
cover:
PC
Keyword:
led tube with high efficiency
Standard Length:
60cm/120cm/150cm
Color:
Natural White
Power:
9/18/22
Light efficiency:
> 95 lm/W
PF (power factor):
>0.9
color:
Warm white/Natural white/White
Item Type:
Panel Lights
LED Light Source:
LED
Warranty(Years):
5
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month LED tube t8
Packaging & Delivery
Packaging Details
28pcs a carton,carton size :72*65*44mm ,weight 30KG/carton
Port
shenzhen

170LM/W 2835smd Super Brightness Led Tube with 5 years warranty

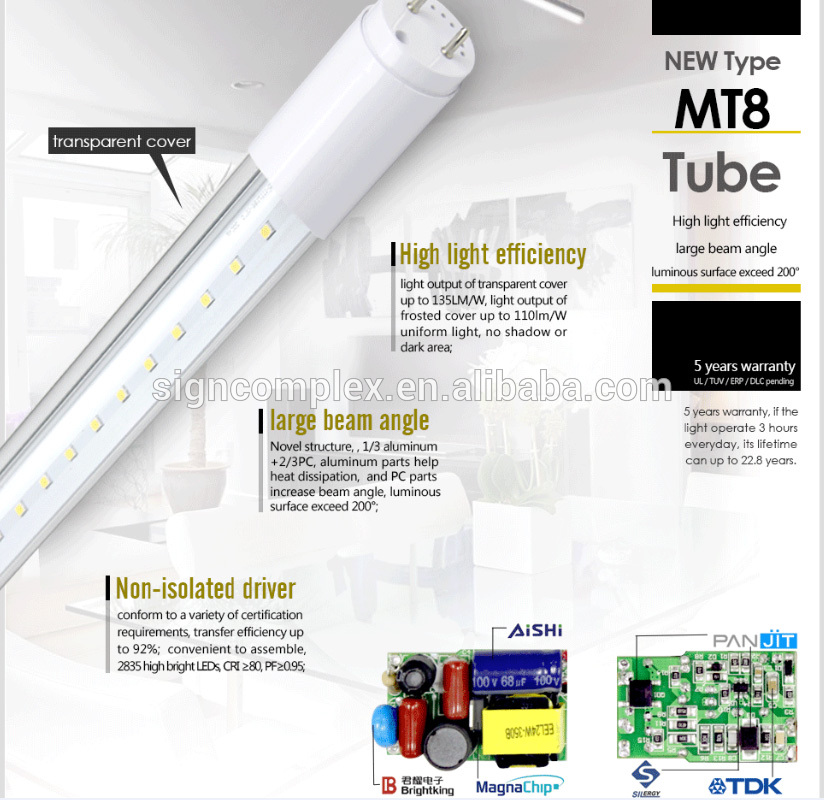

Features:






Product features:



1.      High Efficiency T8 Tube:  155LM/W for frosted cover,

170LM/W for clear cover

2.      AL6063 extrusion Aluminum Alloy + Special treatment PCB  => Great heat dissipation => stable quality.

3.      Large emitting angel:  230 degree.

4.      High energy saving grade:  A++  => Saving energy up to 70%.

5.      TUV-CE, TUV-CB, SAA, LM80. IES file available.

6.      5 years warranty.





Technical Data:



Model No.CoverColorLumenEfficiencyPowerCRILED typeLengthInputPF
MT8-009-AW-WW-16FFrostedWarm white1220 lm135 lm/w9W>80High brightness
SMD2835

90pcs
2FT
60CM
100-277VAC
50-60Hz
>0.9
MT8-009-AW-NW-16FNatural white1402 lm155 lm/w
MT8-009-AW-W-16FWhite1366 lm151 lm/w
MT8-009-AW-WW-16CClearWarm white1257 lm139 lm/w
MT8-009-AW-NW-16CNatural white1468 lm163 lm/w
MT8-009-AW-W-16CWhite1424 lm158 lm/w
MT8-018-AW-WW-17FFrostedWarm white2448 lm136 lm/w18W>80High brightness
SMD2835

168pcs
4FT
120CM
100-277VAC
50-60Hz
>0.9
MT8-018-AW-NW-17FNatural white2725 lm151 lm/w
MT8-018-AW-W-17FWhite2670 lm148 lm/w
MT8-018-AW-WW-17CClearWarm white2624 lm145 lm/w
MT8-018-AW-NW-17CNatural white2857 lm158 lm/w
MT8-018-AW-W-17CWhite2827 lm157 lm/w
MT8-022AW-WW-16FFrostedWarm white3053 lm138 lm/w22W>80High brightness
SMD2835

216pcs
5FT
150CM
100-277VAC
50-60Hz
>0.9
MT8-022-AW-NW-16FNatural white3463 lm157 lm/w
MT8-022-AW-W-16FWhite3469 lm157 lm/w
MT8-022-AW-WW-16CClearWarm white3318 lm150 lm/w
MT8-022-AW-NW-16CNatural white3823 lm173 lm/w
MT8-022-AW-W-16CWhite3725 lm169 lm/w






Contact us

Request pirce? a sample? or custom order?

Contact us now for more discount!



Company Information



FAQ

1) What are the best selling products in Signcomplex?
-  LED strip
- Panel light
- Linear light

- Downlight / Ceiling light
- LED Highbay / Flood light / Wallpack / Shoebox / Canopy light / Tri-proof light
- Corn bulb

- LED tube

- Emergency light  (Exit Sign / Emergency Downlight / Camping Light)

- LED Controller



2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.



3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.



4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.



5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.



6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.



7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.



8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.



9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
