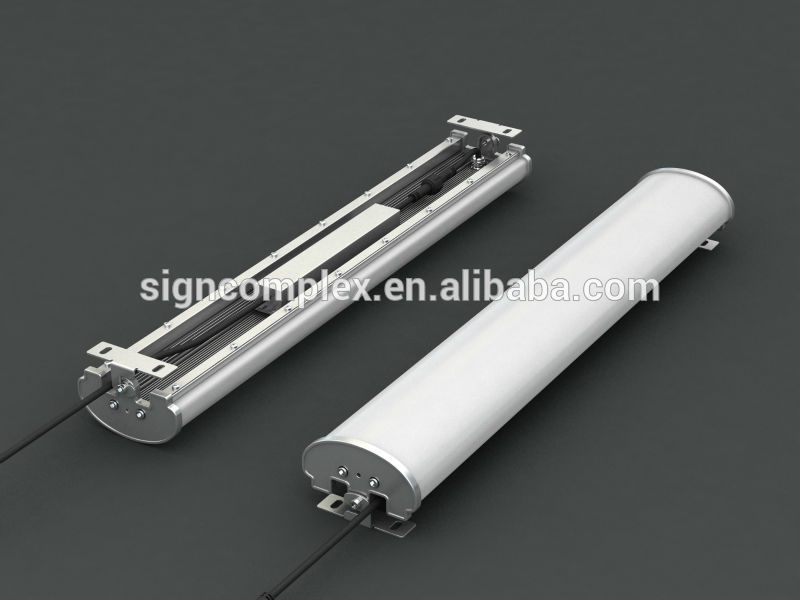

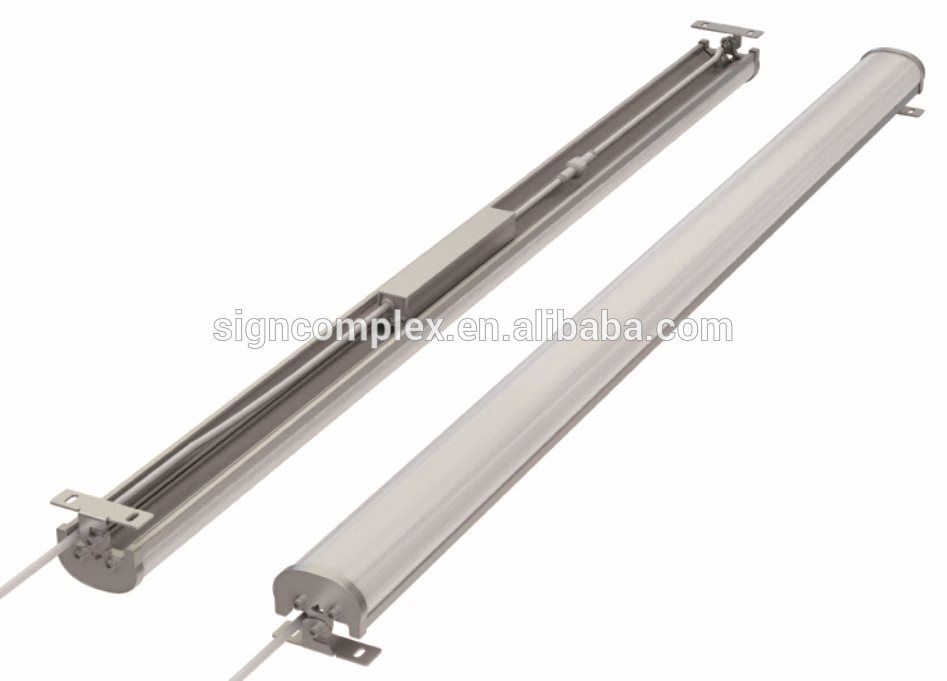

4ft SMD2835 Waterproof LED tube Light fixture seamless connect IP65 Tri-Proof LEDTube
Description
Tri-proof led tube light uses durable long life span LED as light source, smooth light without glare, simple looking design. Crash-proof, water-proof and dust-proof, IP rating is up to IP65, can be used in different environment. Use aluminum alloy and PC as the material which ensures that led tube light fixture can work stably in different environment.
Specification
336pcs, SMD2835, 40W, AC100-277V, 50/60Hz,CRI>80,PF≥0.9
4700-5300K White,4040lm,230° L*W:1200*74 mm
Features
1. ArcS I series tri-proof lamp with 230°beam angle to replace fluorescent tube;
2. Water-proof, dust-proof, impact-proof design, can be used in harsh environment;
3. Use fire-resistant PC cover, can pass 650°glow wire test;
4. High efficiency, up to 140 lm/w;
5. External power supply, easy to maintain;
6. Anti-glare cover, protect eyes better.
Main Applications
Suitable for workshop, warehouse, parking lot, shopping mall, farm, gas station, etc.
Dimmensions
Installation Information
1)First set up accessories and fittings of the light(led tube light fixture);
2)Curt off the power before installation;
3)Make sure the product is fixed tightly to the installation surface(install it according to diagram as below)
Packaging detail
Gross Weight:1.4kg;
White box size:113*80*628mm;
Packages size:646*357*270mm( 9pcs per box.gross weight:12.6kg)
Delivery Detail
Shipped in 15 days after payment for 5~1000pcs, 20days for 1000~5000pcs, others under negotiation.
Production line
