Home > Products > 9W/12W/15W/20W/25W bluetooth dimmable intelligent voice control COB LED downlight UGR<19

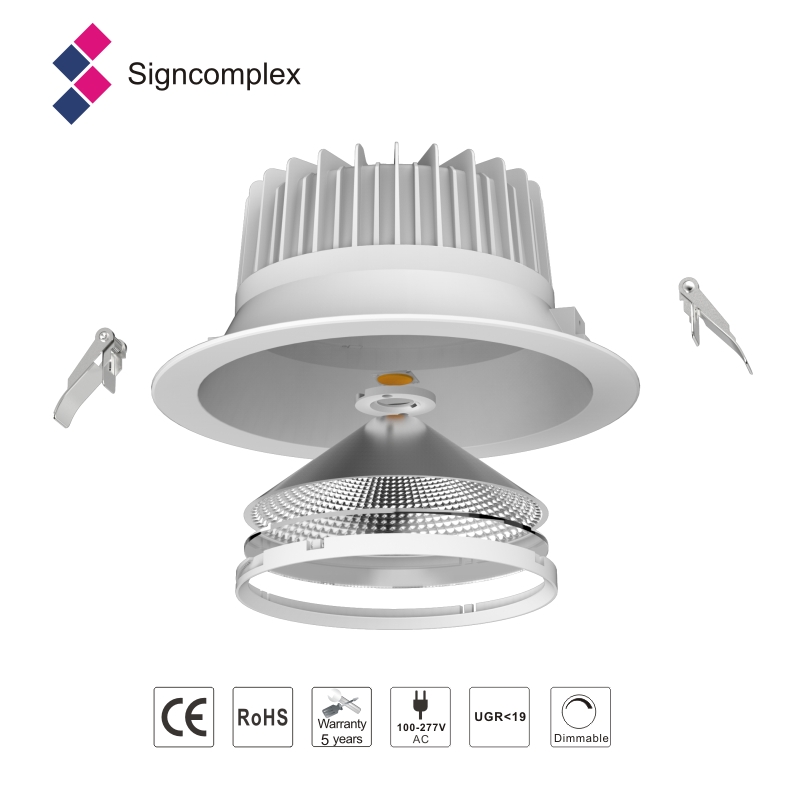

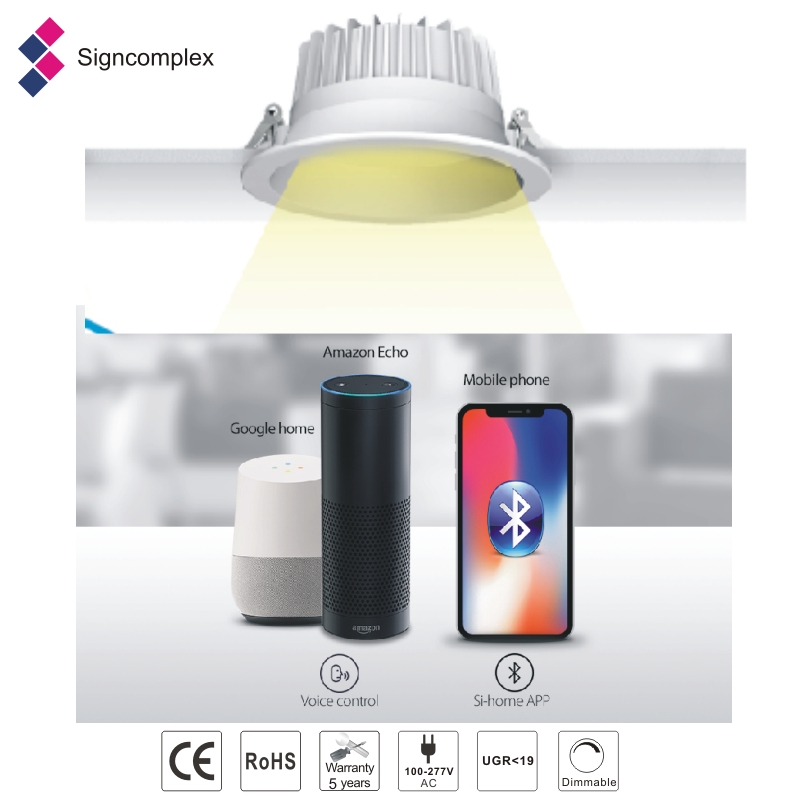

9W/12W/15W/20W/25W bluetooth dimmable intelligent voice control COB LED downlight UGR<19
Click on the image to view the original image
Product： views：29W/12W/15W/20W/25W bluetooth dimmable intelligent voice control COB LED downlight UGR<19
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:41
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
1630
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP40
Certification:
CE, EMC, LVD, RoHS
Model Number:
TQDL3/4/6/8
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Application:
Indoor Lighting
Light Name:
Dolux downlight
Beam angle:
60/80 degree
PF:
>0.9
Dimmable:
Non dimmable,0/1-10V bluetooth dimmable is available
CRI:
>80
UGR:
<19
Cut out:
D80mm
Color:
WW/W
Power:
9/12/15/20/25W
Item Type:
Downlights
Working Temperature(℃):
-20 - +40
CRI (Ra>):
80
LED Light Source:
Epistar COB
Warranty(Years):
5Years
Lamp Power(W):
20
Lamp Luminous Efficiency(lm/w):
80
Color Temperature(CCT):
5000/4000/3000K
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common industrial packaging, inner box and carton
Port
Shenzhen and Hongkong
Lead Time:
Shipped in 15 days after payment

9W/12W/15W/20W/25W bluetooth dimmable intelligent voice control COB LED downlight UGR<19







Dolux 3"/4"/6"/8" COB Blutooth Downlight
TQDL3/4/6/8-AW-01



Features :
1.Unique structure ensure optimal cooling effect and light effect.
2.Significant energy-saving,flexible color difference control system,ensure single persistance of light and color.
3.Aluminum alloy housing,ensure high-end gorgeous product with beautiful design.
4.Transparent and frosted glass cover for option.
5.Reflection cup with metal luster to improve light effect and uniformity.

6.External power supply,ensure lifetime of power supply and LEDs.

7.High efficient and energy-saving LED driver.

8.Lifetime reach 50,000 hours.










Application:
Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting.



Dimenions(unit:mm)



Specification :

ModelCCTLumen(lm)
(±10%)		Power(w)
(±10%)		Max Current(A)LED Type
/Qty.		Beam angleVoltage,
Frequency		CRIPF
TQDL3-009-AW-WW/W-012700K/6500K53090.10COB60°

AC100-277V

50/60HZ

80>0.9
TQDL3-012-AW-WW/W-012700K/6500K710120.15
TQDL4-009-AW-WW/W-012700K/6500K50090.10
TQDL4-012-AW-WW/W-012700K/6500K650120.15
TQDL6-015-0AW-WW/W-012700K/6500K1000150.20
TQDL6-020-AW-WW/W-012700K/6500K1280200.25
TQDL6-025-AW-WW/W-012700K/6500K1420250.30
TQDL8-015-AW-WW/W-012700K/6500K1050150.2080°
TQDL8-020-AW-WW/W-012700K/6500K1360200.25
TQDL8-025-AW-WW/W-012700K/6500K1530250.30
