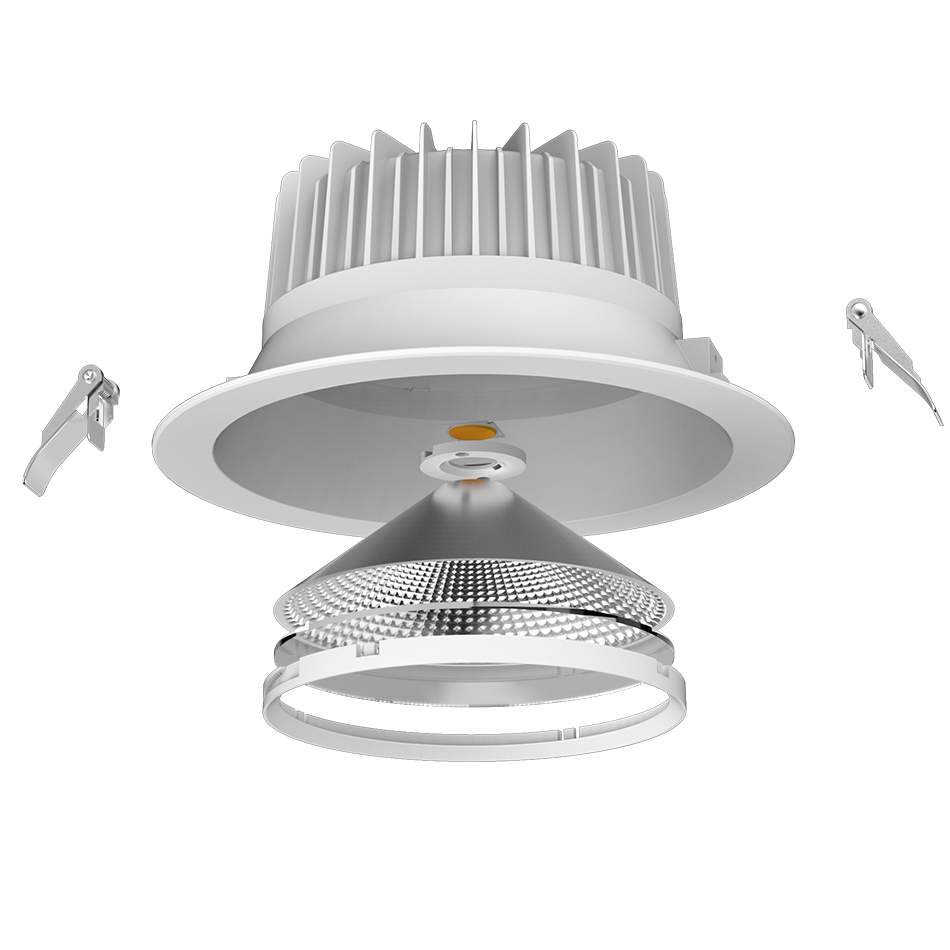

3 Warranty Years 3" 4" 6" 12W Led Downlight China, Rotatable Recessed Led Down Light With Cob
COB Epistar Chip
Max.100LM/W
SDCM<5
Beam angle:55 60 85
UGR<19
Non dimmable:0/1-10V,DALI,Triac dimmable
IP40
3 warranty years
CE ROHS Certified,TUV pending
Dolux 3"/4"/6"/8" COB Downlight
QDL3/4/6/8-AW-01
Description :
1.Unique structure ensure optimal cooling effect and light effect;
2.Significant energy-saving ,flexible color difference control system,ensure single persistance of light and color;
3.Aluminum alloy housing,ensure high-end and gorgeous product with beautiful design;
4.Transparent and frosted glass cover for option,indent shape of glass to reach anti-glare effect;
5.Reflection cup with metal luster to improve light effect and uniformity;
6.Lifetime reach 50,000 hours.
Features :
1.Adopt aluminum alloy as material ,die-casting process,high-end and gorgeous;
2.Unique appearance,beautiful design and gorgeous;
3.Excellent thermal management to ensure long lifetime of LED;
4.External power supplier,ensure lifetime of power supply and LEDS
5.High efficient and energy-saving LED driver.
Application:
Suitable for hotel,corridor,home decoration ,shopping mall,exhibition room,etc.
Specification :
Model Number | LED Type | LED Qty. | CCT | Light Output (lm) | Power (W) | Voltage (V) Frequency | Beam angle(°) | CRI | PF |
QDL3-005-AW-01 | COB
| 1PCS
| 5000/4000/3000 | 430 | 5 | 100-240V AC 60Hz | 50° | >80 | ≥0.9 |
QDL3-007-AW-01 | 5000/4000/3000 | 500 | 7 | 100-240V AC 60Hz | 50° | >80 | ≥0.9 | ||
QDL3-009-AW-01 | 5000/4000/3000 | 650 | 9 | 100-240V AC 60Hz | 50° | >80 | ≥0.9 | ||
QDL3-012-AW-01 | 5000/4000/3000 | 920 | 12 | 100-240V AC 60Hz | 50° | >80 | ≥0.9 |
Production line
1) What are the best selling products in Signcomplex?
- LED strip
- panel lights
- linear light
- high bay
- corn bulb
- tube
-LED controller
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
Please email for details!
