Click on the image to view the original image

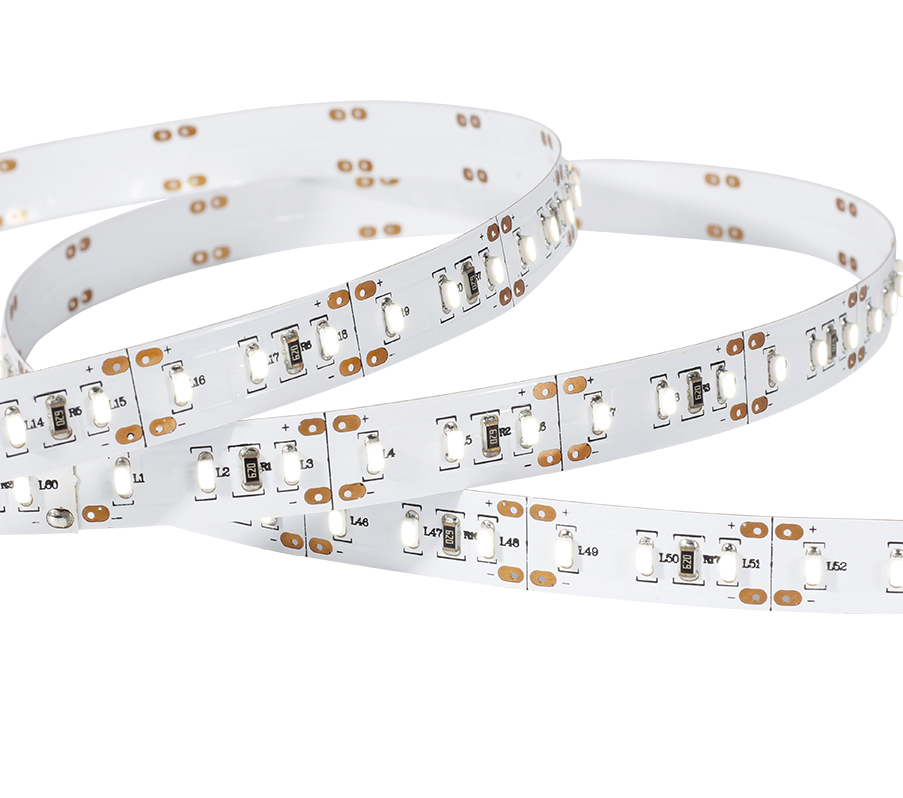

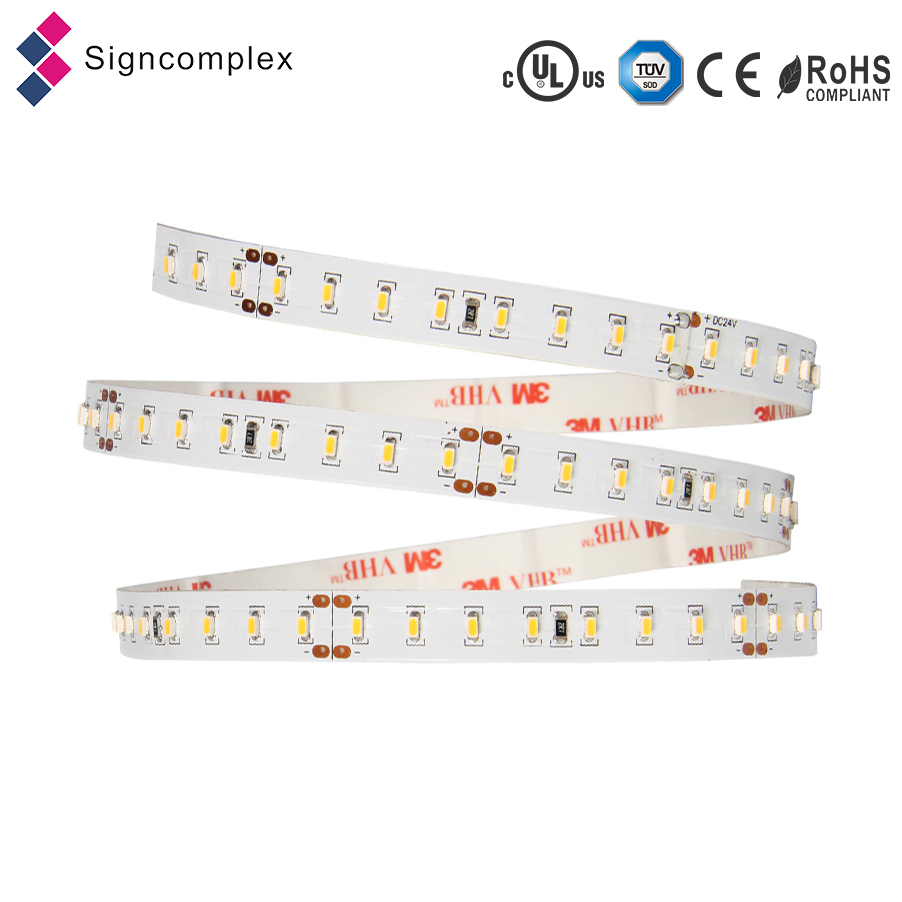

High light efficiency LED strips 140lm/w flexible strips
140lm/w 3014 high light efficiency
LED Strip
SC-IE/IE2/IE3-P
Features:
1.3014 LED
2.12/24V DC
3.140lm/w,white/natural white/warm white
4.64led/m,128led/m,192led/m,200led/m
5.IP20
6.MAX length:5m for IE,IE2,2.82m for IE3
7.TUV,CE,ROHS,3 years warranty
Application:
Advertising billboard,backlit decoration,architecture,bar,dance hall,wine cabinet,floor,ceiling,etc.
Technical parameters:
| Model | CCT | Luminous Flux (lm/m) | Width (mm) | Max.Length (m) | Min.Length (mm) | DC Voltage (V) | LED Qty. (pcs/m) | Rated watt (w/m) | Thickness |
| SC-IE-PW | 5500-7000K | 810 | 8 | 10 | 62.5 | 12 | 64 | 5.8 | 1.6 |
| SC-IE-PNW | 4000-4500K | 800 | |||||||
| SC-IE-PWW | 2700-3200K | 740 | |||||||
| SC-IE2-PW | 5500-7000K | 1610 | 10 | 10 | 31.2 | 12 | 128 | 11.5 | 1.6 |
| SC-IE2-PNW | 4000-4500K | 1590 | |||||||
| SC-IE2-PWW | 2700-3200K | 1470 | |||||||
| SC-IE3-PW | 5500-7000K | 2410 | 10 | 5 | 20 | 12 | 200 | 17.2 | 1.6 |
| SC-IE3-PNW | 4000-4500K | 2370 | |||||||
| SC-IE3-PWW | 2700-3200K | 2200 | |||||||
| SC-IE-PW-24 | 5500-7000K | 810 | 8 | 10 | 62.5 | 24 | 64 | 5.8 | 1.6 |
| SC-IE-PNW-24 | 4000-4500K | 800 | |||||||
| SC-IE-PWW-24 | 2700-3200K | 740 | |||||||
| SC-IE2-PW-24 | 5500-7000K | 1610 | 10 | 10 | 31.2 | 24 | 128 | 11.5 | 1.6 |
| SC-IE2-PNW-24 | 4000-4500K | 1590 | |||||||
| SC-IE2-PWW-24 | 2700-3200K | 1470 | |||||||
| SC-IE3-PW-24 | 5500-7000K | 2410 | 10 | 5 | 20 | 24 | 192 | 17.2 | 1.6 |
| SC-IE3-PNW-24 | 4000-4500K | 2370 | |||||||
| SC-IE3-PWW-24 | 2700-3200K | 2200 |
