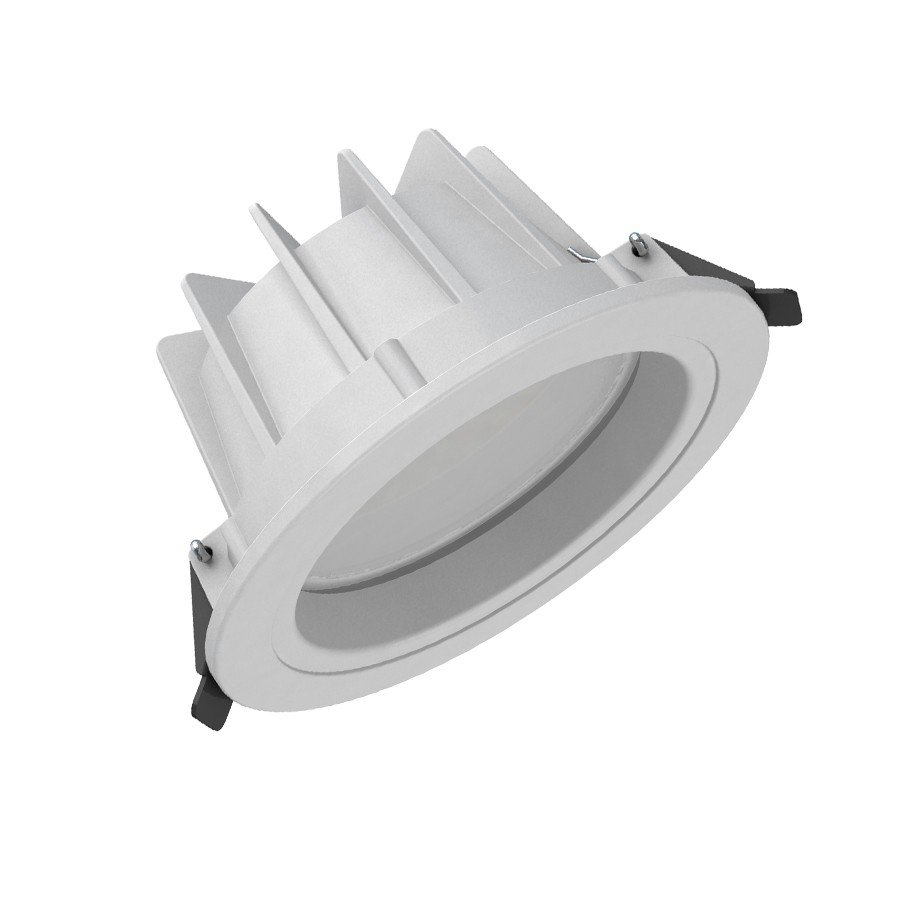

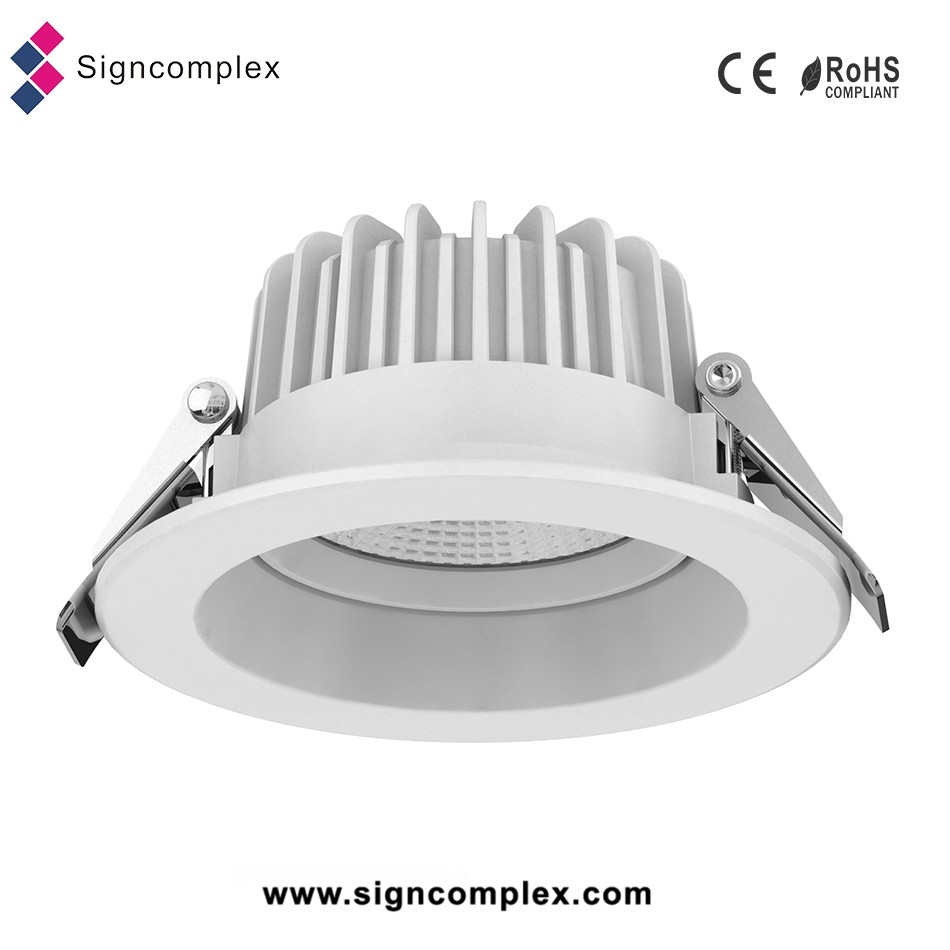

Recessed LED 3" 5W COB downlights 3years warranty
Dolux 3"/4"/6"/8" COB Downlight
QDL3/4/6/8-AW-01
Description :
1.Unique structure ensure optimal cooling effect and light effect;
2.Significant energy-saving ,flexible color difference control system,ensure single persistance of light and color;
3.Aluminum alloy housing,ensure high-end and gorgeous product with beautiful design;
4.Transparent and frosted glass cover for option,indent shape of glass to reach anti-glare effect;
5.Reflection cup with metal luster to improve light effect and uniformity;
6.Lifetime reach 50,000 hours.
Features of the LED recessed downlight :
1.Adopt aluminum alloy as material ,die-casting process,high-end and gorgeous;
2.Unique appearance,beautiful design and gorgeous;
3.Excellent thermal management to ensure long lifetime of LED;
4.External power supplier,ensure lifetime of power supply and LEDS
5.High efficient and energy-saving LED driver.
Application:
Suitable for hotel,corridor,home decoration ,shopping mall,exhibition room,etc.
Specification :
| Model | CCT | Lumen(lm) (±10%) | Power(w) (±10%) | LED Type /Qty. | Beam angle | Voltage, Frequency | CRI | PF |
| QDL3-005-AW-01 | 5000/4000/3000 | 430 | 5 | COB 1pcs | 50° | AC100-240V 50/60HZ | >80 | ≥0.9 |
| QDL3-007-AW-01 | 5000/4000/3000 | 500 | 7 | |||||
| QDL3-009-AW-01 | 5000/4000/3000 | 650 | 9 | |||||
| QDL3-012-AW-01 | 5000/4000/3000 | 920 | 12 | |||||
| QDL4-007-AW-01 | 5000/4000/3000 | 550 | 7 | COB 1pcs | 60° | AC100-240V 50/60HZ | >80 | ≥0.9 |
| QDL4-009-AW-01 | 5000/4000/3000 | 690 | 9 | |||||
| QDL4-012-AW-01 | 5000/4000/3000 | 1000 | 12 | |||||
| QDL4-015-AW-01 | 5000/4000/3000 | 1150 | 15 | |||||
| QDL6-012-AW-01 | 5000/4000/3000 | 1150 | 12 | COB 1pcs | 60° | AC100-240V 50/60HZ | >80 | ≥0.9 |
| QDL6-018-AW-01 | 5000/4000/3000 | 1700 | 18 | |||||
| QDL6-025-AW-01 | 5000/4000/3000 | 2250 | 25 | |||||
| QDL6-030-AW-01 | 5000/4000/3000 | 2850 | 30 | |||||
| QDL8-018-AW-01 | 5000/4000/3000 | 1700 | 18 | COB 1pcs | 80° | AC240V 50/60HZ | >80 | ≥0.9 |
| QDL8-025-AW-01 | 5000/4000/3000 | 2350 | 25 | |||||
| QDL8-030-AW-01 | 5000/4000/3000 | 2700 | 30 | |||||
| QDL8-035-AW-01 | 5000/4000/3000 | 3150 | 35 |
Production of flowsheet:
Welcome to inquire the LED downlight !
Please email for details!
