2*4ft LED panel light with 5 years warranty time with junction box

Click on the image to view the original image

Product：	views：22*4ft LED panel light with 5 years warranty time with junction box
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC100-277V

Lamp Luminous Flux(lm):: 5500

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP44

Certification:: CE, ETL, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

Application:: Hotels, etc

Light Source:: LED

Color Temperature(CCT):: Cool White

Lamp Luminous Efficiency(lm/w):: 100

Power:: 55w

Size:: 600mm*1200mm

LED Chip:: SMD4014

Material:: Aluminum frame

Beam angle:: 110 Degree

Dimmable:: 0-10v

Color:: 3000K/4000K/5000K

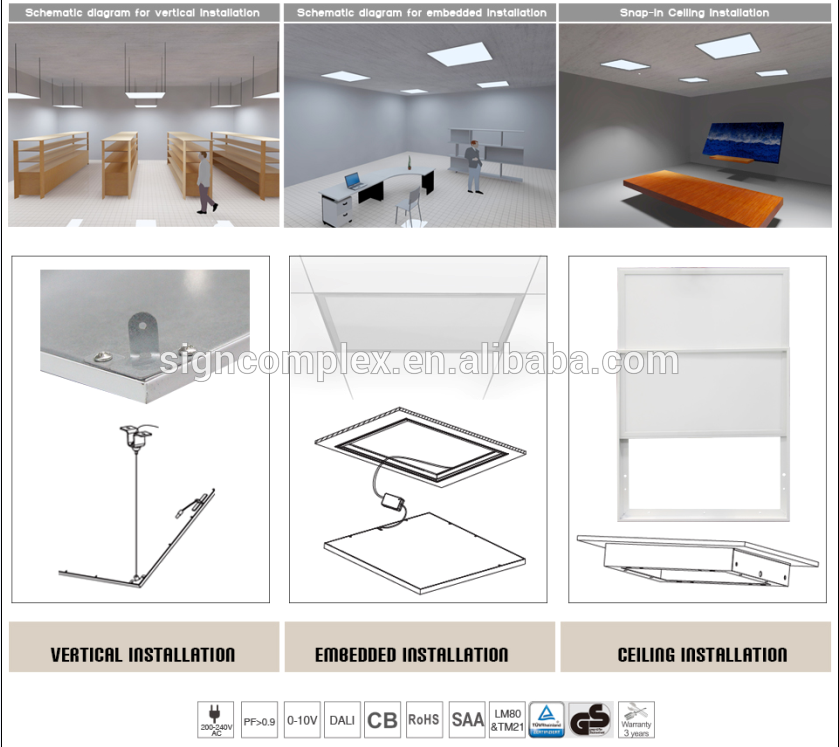

Installation:: suspended/recessed/surface mounted

Item Type:: Panel Lights

LED Light Source:: SMD4014

Warranty(Years):: 5

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

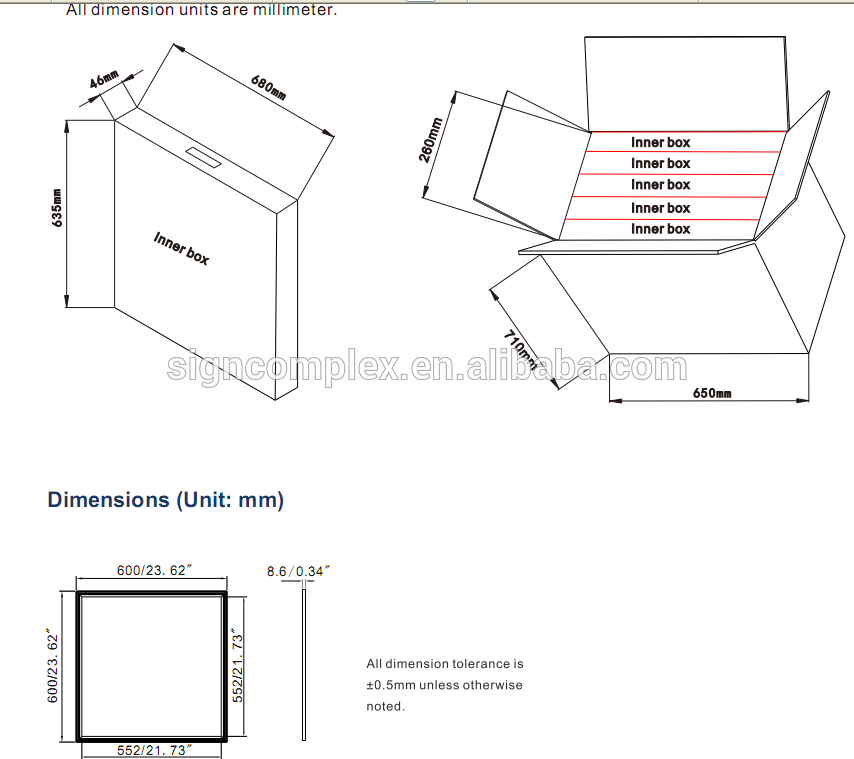

Packaging Details: 2pcs in one box, 2 boxes in one carton

Port: shenzhen

5 warranty years square surface mounted panel light 600 x 1200

Features

1. Color:cool white(5000-6500K), nature white(3700-4500K),warm white(2700-3200K), other available.
2. Beam angle: 110 Degree
3. Saving energy: 50%
4. Life span more than 50000Hrs
5. IP code: IP44
6. Standard warranty: 5 years
7. CE, ROHS,etc certificated

Technical Parameter
Working voltage:AC100-277v
Max Current: 1.05A
LED type: 4014 SMD LED
Output Power: 55W
Dimming: 0-10v dimmable

Specifications:

Model	CCT	LED Type	Lumen(lm) (±10%)	CRI	Beam angle	Power(W) (±10%)	Voltage (V)	Size(ft)
SC-PSCAWCE6012-J55W	5000-6500K	4014	4862	>80	110°	55w	AC100-277v	2*4ft
SC-PSCAWNE6012-J55W	3700-4500K		5179	>80	110°	55w
SC-PSCAWWE6012-J55W	2700-3200K		4705	>80	110°	55w

Applications:
- Hotels
- Conference/Meeting rooms
- Factories and offices
- Commercial purposes
- Residential / Institution buildings
- Schools, colleges, universities and hospitals
- Places which needs energy saving and high color rendering index lighting.
