5 years warranty LED troffer lamp Fluorescent tubes replacement

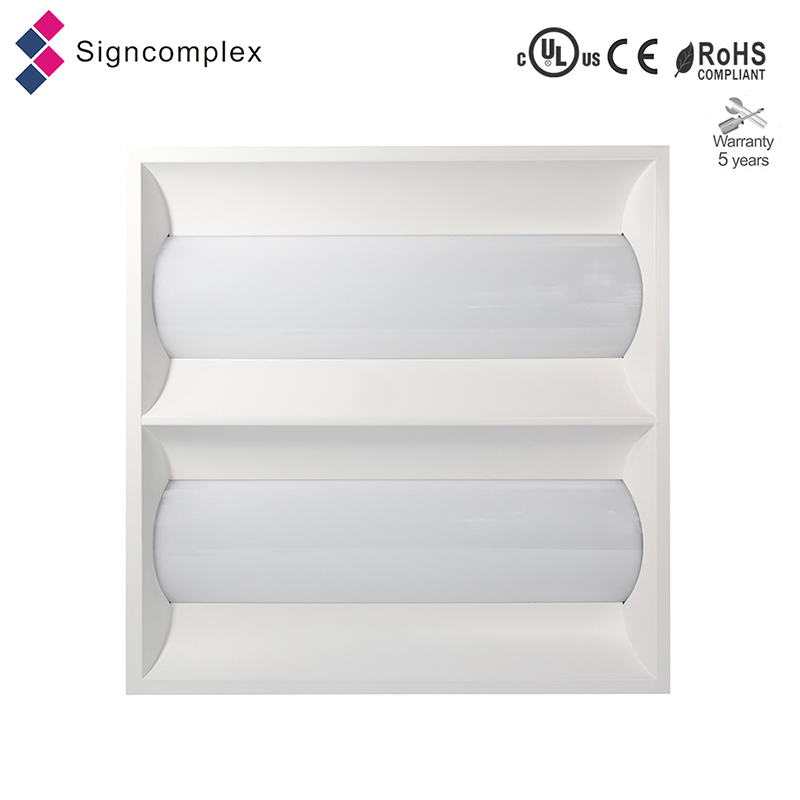

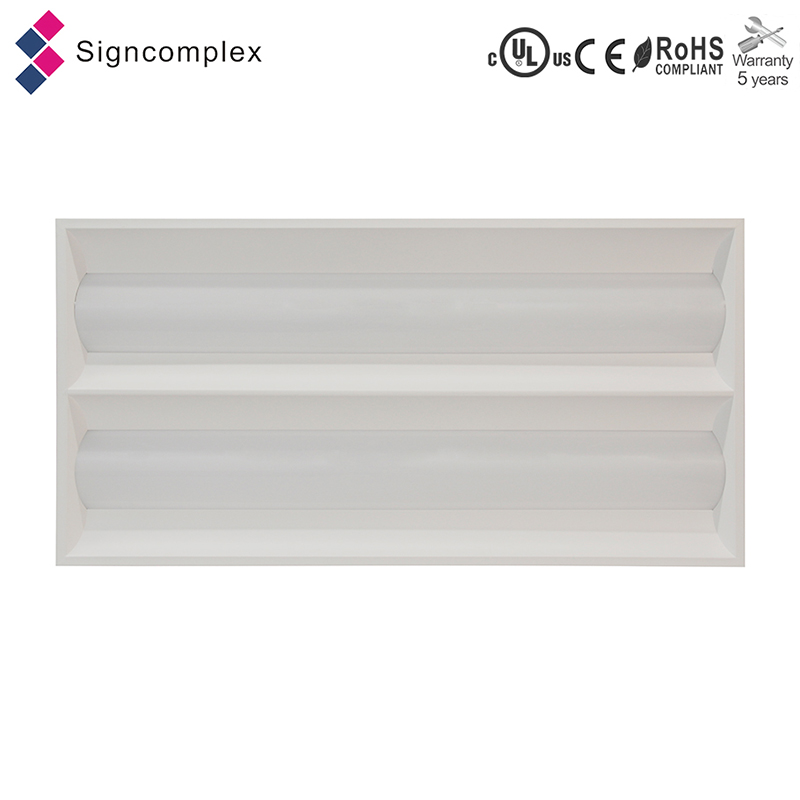

LED Troffer Light(0-10V Dimming)
Features
1.Visual uniformity
The back-l it LED troffer can produce a very soft natural l ight and give a comfortable l ighting envirnment with a radian cover.
2.LED efficiency
high lumen LED efficacy,up to 100LM/W for cool white and natural white.
1.Visual uniformity
The back-l it LED troffer can produce a very soft natural l ight and give a comfortable l ighting envirnment with a radian cover.
2.LED efficiency
high lumen LED efficacy,up to 100LM/W for cool white and natural white.
3.Luminaire construction
Powder coat pained die-rol l ing iron housing,with fireproof juction box on the back for electronical
connection,PC cover with mi lky color for l ighting distribution.
4.Driver
Universal voltage 100-277VAC with integral 0-10V dimming system,no fl icker.For non-dimming
requirements,do not connect to dimming control during instal lation.
5.Cost and energy saving
-50% more energy saving effect than fluorescent tubes
-low heat generation,extra energy saving effect through reduction of HVAC load.
-Easy instal lation: only 3 steps in 2 minutes, labor cost saving
6.long life time
more than 50,000 hours l ife time and 5 years warranty.
Powder coat pained die-rol l ing iron housing,with fireproof juction box on the back for electronical
connection,PC cover with mi lky color for l ighting distribution.
4.Driver
Universal voltage 100-277VAC with integral 0-10V dimming system,no fl icker.For non-dimming
requirements,do not connect to dimming control during instal lation.
5.Cost and energy saving
-50% more energy saving effect than fluorescent tubes
-low heat generation,extra energy saving effect through reduction of HVAC load.
-Easy instal lation: only 3 steps in 2 minutes, labor cost saving
6.long life time
more than 50,000 hours l ife time and 5 years warranty.
Specifications:
| Model | CCT | Size (feet) | Color | LED Type | Lumen(lm) (±10%) | CRI | Beam angle | Power(W) (±10%) | Voltage (V) | Dimmer | Current (A) | PF |
| SC-GLN-040-AW-01CW | 5000K | 2*2 | cool white | 2835 | 4330 | ≥80 | 110° | 40W | AC100-277V 50/60Hz | 0-10V | 0.5 | >0.95 |
| SC-GLN-040-AW-01NW | 4000K | 2*2 | natural white | 4305 | ≥80 | 110° | ||||||
| SC-GLN-040-AW-01WW | 3000K | 2*2 | warm white | 3678 | ≥80 | 110° | ||||||
| SC-GLN-055-AW-01CW | 5000K | 2*4 | cool white | 2835 | 5486 | ≥80 | 110° | 55W | AC100-277V 50/60Hz | 0-10V | 0.5 | >0.95 |
| SC-GLN-055-AW-01NW | 4000K | 2*4 | natural white | 5516 | ≥80 | 110° | ||||||
| SC-GLN-055-AW-01WW | 3000K | 2*4 | warm white | 4924 | ≥80 | 110° |
Applications
General lighting such as offices,hotels,home,shops,hospitals,schools.
