Home > Products > Round Ultra Slim 8w 12w 18w 24w 30w led downlight with ce, rohs, 3 years warranty

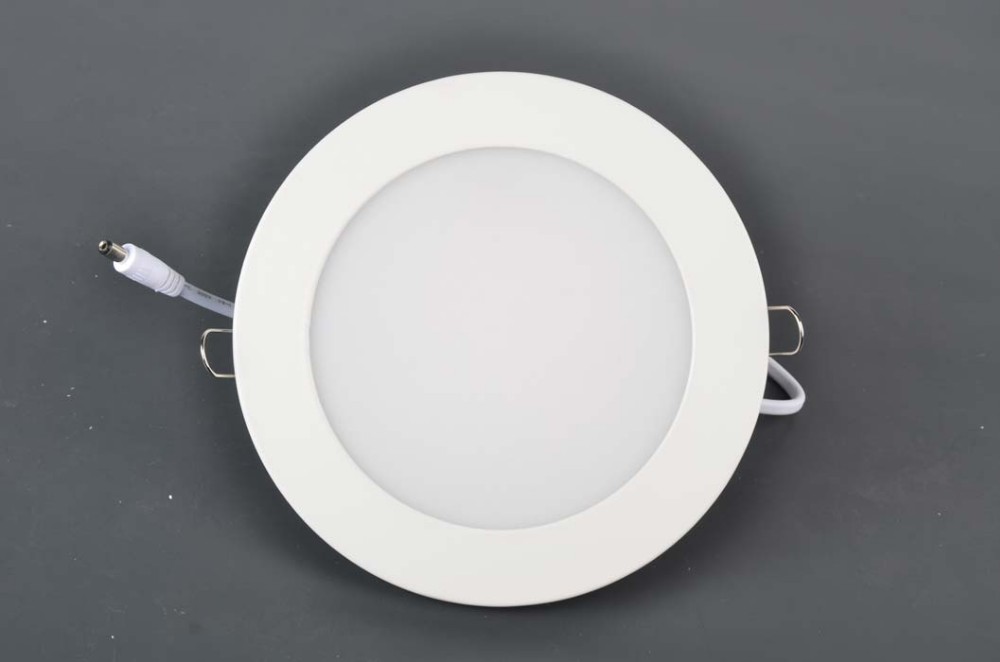

Round Ultra Slim 8w 12w 18w 24w 30w led downlight with ce, rohs, 3 years warranty

Click on the image to view the original image

Product：	views：2Round Ultra Slim 8w 12w 18w 24w 30w led downlight with ce, rohs, 3 years warranty
Branch：	Signcomplex
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:41

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: AC100-240V

Lamp Luminous Flux(lm):: 2620

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP20

Certification:: CE, RoHS

Model Number:: FDL4-008-AW-01

Place of Origin:: Guangdong, China

Brand Name:: Signcomplex

power:: 8w 12w 18w 24w 30w

Item Type:: Downlights

Warranty(Years):: 3 years

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Lamp Power(W):: 35

LED Light Source:: SMD2835

Lamp Luminous Efficiency(lm/w):: 85

Color Temperature(CCT):: W/WW/NW

Supply Ability

Supply Ability:: 200000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 24 PCS/CTN

Port: Shekou

Lead Time:: Shipped in 7 days after payment

Round Ultra Slim High Quality Saa Led Light Downlight Led 18W, 6" Dimmable Led Downlight

1.Die-casted aluminum alloy housing;

2.Matt white

3.Ultra-slim,thickness<26mm

4.Opal diffuser make light beam uniform and low glare

5.Led downlight UGR<19

Features of the led downlight 18w dimmable :

*TRIAC dimmable, fluent, no strobe.
*Dimmable range 1%~100%.
*Adopt die-casting aluminum alloy to make the main body.
*Use PMMA of high transmittance as the material of panel.
*Unique and delicate looking design.
*Excellent heat dissipation performance to ensure the long
lifetime of LED
*The driver and main body use separation design which
ensure the long lifetime of both parts.
*High-efficient and energy -saving LED driver

Application:
Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting.

Specification:

Model Number	Color	LED Type	LED Qty.	CCT(K)	Light Output (lm)	Power (W)	Maximum current(mA)	Voltage (V) Frequency	Beam angle(°)	Net weight (KG)	PF
FDL6-018-AL-W-01	white	2835	108	6000-6300	1370	18W	<200	100-120V AC 60Hz	100°	0.4	≥0.9
FDL6-018-AL-NW-01	Neutral white		108	3900-4100	1400
FDL6-018-AL-WW-01	warm white		108	2900-3100	1220
FDL6-018-AH-W-01	white		108	6000-6300	1370	18W	<100	200-240V AC 50Hz
FDL6-018-AH-NW-01	Neutral white		108	3900-4100	1400
FDL6-018-AH-WW-01	warm white		108	2900-3100	1220
