Home > Products > 2*2 feet 2*4 feet 40W 55W back lit LED troffer

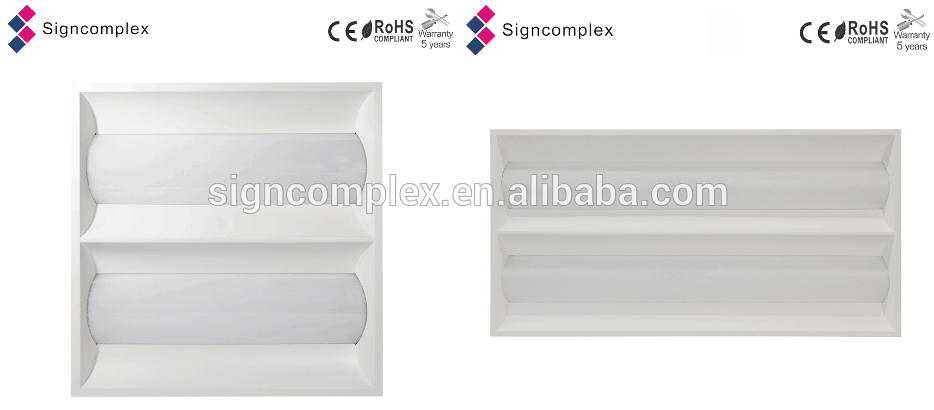

2*2 feet 2*4 feet 40W 55W back lit LED troffer
Click on the image to view the original image
Product： views：22*2 feet 2*4 feet 40W 55W back lit LED troffer
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:42
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
4924
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP40
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Light Source:
LED
Color Temperature(CCT):
w ww nw
Lamp Luminous Efficiency(lm/w):
100
back lit panel:
led troffer
back lit led troffer:
back lit panel
led troffer:
led grill light
Item Type:
Panel Lights
LED Light Source:
SMD2835
Warranty(Years):
5
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
40W: 603*603 mm2 PCS/inner box, 4 PCS/CTN
55W: 603*1212 mm1PCS/inner box, 4 PCS/CTN
Port
Shekou
Product show
Technical Parameter
Selling point

I   Ideal product to replace traditional troffer

II   High light efficiency: 100 lm/w

III  Radian cover design, produce diffuse reflection light, brings perfect lighting effects

IV  Perfect built-in driver, only 68 mm thickness

V   No gap at any conners

VI  Stable structure

Detail Images

Perfect lighting effect ----soft light, no dark spot, no light leaking

Perfect built-in driver, only 68 mm thickness

Others:

low-end, has gap at four coners

Signcomplex:

High-end, perfect shape, no gap at any corners

Other Details:

I 6060 Aluminum, fire-proof 94-V2 PC cover

II 603*603*68 mm, 603*1212*68 mm

III CE, RoHS certified, 5 years warranty

IV 0-10V dimming

Application
Packing information
About purhasing

IMOQ:4 PCS

IIPrice: ?

III Payment terms:T/T in advance

IV Delivery: 10 days

Company profile
