IK08 multi-function auto 20w led emergency lamp guangdong
Emergency 20W Tri-proof Lamp
FTN-TP-020-AW-W-A
20w 40w 50w available
Description :
Tri-proof light is usually used in environment which require water-proof, dust-proof,
corrosion-proof lighting, and it iswidely used in shopping mall,warehouse and other indoor places. Tri-proof light of medium power can be ceiling mounted or suspending installed. Adopt aluminum al loy and PC as the material which ensure that it can work stably in different environment. White appearance.
Lifespan: 30,000 hours. Operating environment:-20℃-40℃.CE/RoHS compliant.The lamp have
emergency power suppy, which can work 3 hours continuously with 7W when black out, suitable for places needing emergency lighting. Charge time:≤24 hours.
Features :
1.Water-proof design without adhesive, so there is no water leakage caused by adhesive aging, convenient to disassemble;
2.Opal and wave cover optional;
3.High impact resistance PC cover, IK08;
4.High transmittance PC cover transmit soft light, high light efficiency ,uniform light ;no dark spot;
5.High efficient heat dissipation, LEDs and power supply low temperature rise ,high stability of continuous working;
6.Can switch start frequently, no flicker;
7.Compact appearance, novel design style, easy to install and transport.
Application
Tri-proof light of medium power can be used in warehouse, parking lot,shopping mal l,farm,food factory, cold storage, metro, underground passage and other places.
Specification :
| Cover | Model | CCT | LED Type Quantity | Lumen(lm) (±10%) | CRI | Beam angle (°) | Power(W) (±10%) | Emergency luminous flux (lm±10%) | Emergency power(W) (lm±10%) | Voltage, Frequency, Current | PF |
| Wave cover | FTN-TP-20-AW-W-A-03 | 5500-6500K | 2835 120pcs | 2310 | 80 | 120° | 20 | 800 | 7 | AC100-240V 50/60Hz 0.6A | 0.9 |
| FTN-TP-20-AW-NW-A-03 | 4000-4500K | 2310 | 80 | 120° | 20 | 800 | 7 | 0.9 | |||
| FTN-TP-20-AW-WW-A-03 | 2700-3200K | 2130 | 80 | 120° | 20 | 750 | 7 | 0.9 | |||
| Opal cover | FTN-TP-20-AW-W-A-04 | 5500-6500K | 1970 | 80 | 120° | 20 | 690 | 7 | 0.9 | ||
| FTN-TP-20-AW-NW-A-04 | 4000-4500K | 1970 | 80 | 120° | 20 | 690 | 7 | 0.9 | |||
| FTN-TP-20-AW-WW-A-04 | 2700-3200K | 1800 | 80 | 120° | 20 | 630 | 7 | 0.9 |

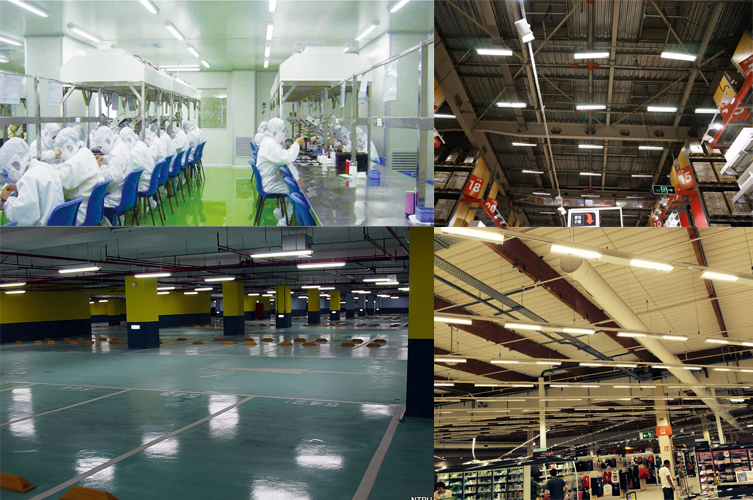

Products Application:
Tri-proof light of medium power can be used in warehouse,parking lot,shopping mall,farm,food factory, cold storage, metro,underground passage and other places.
Production line:
Please email for details!
